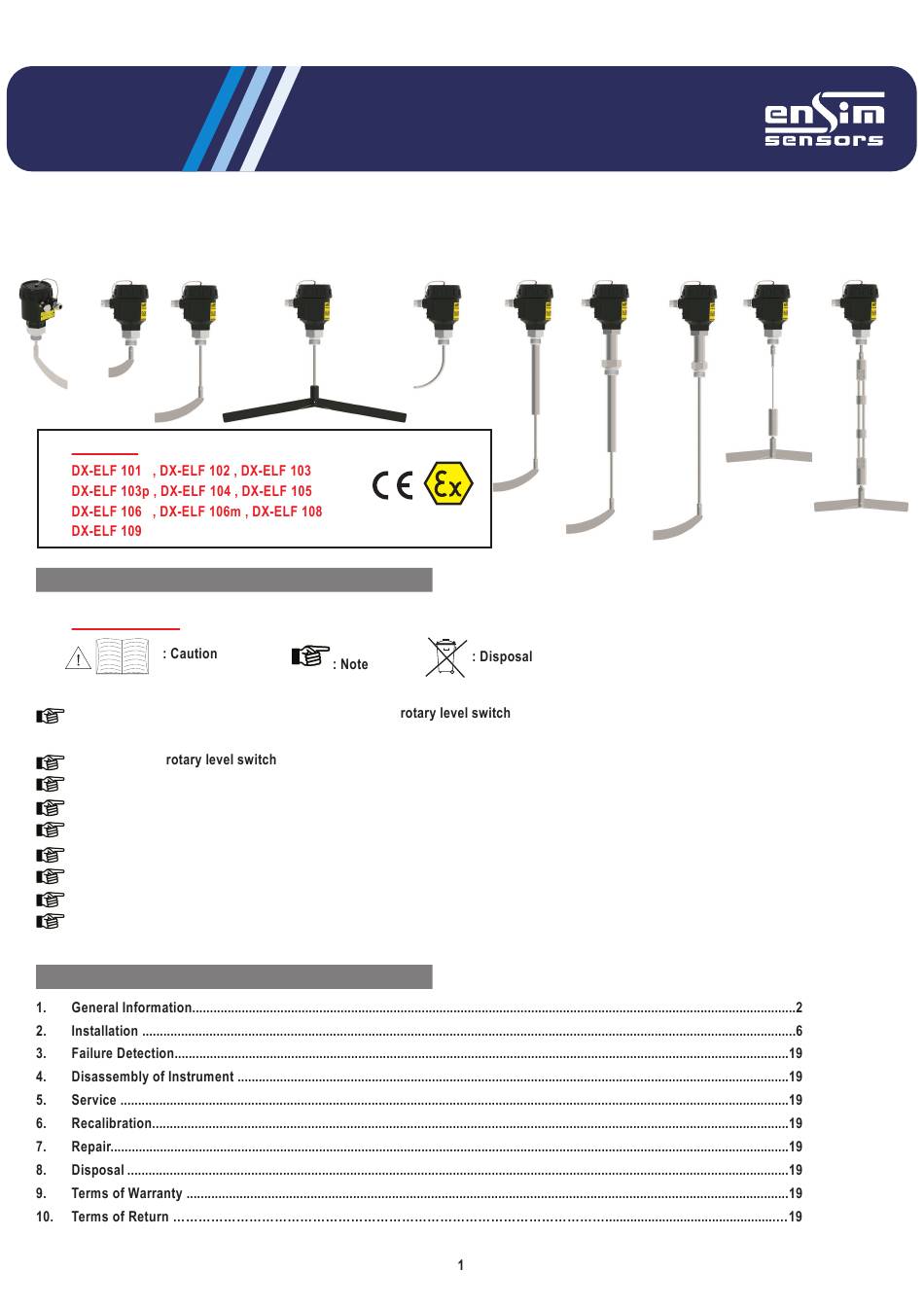

OPERATING
MANUEL
Information in this manual is reviewed and completely reliable. Responsibility is not assumed due to any typing error.
Products in this manual are available only for information purpose and they may be changed without notice.
Models :
Important Notes:
Used Symbols :
Please read this manual carefully before installation of the
from failure to comply with the warnings in this manual.
In the event that
There is not any fuse and circuit breaker on the instrument; they should have been added to the system by the user.
This manual should be stored in an easily accessible place for subsequent use.
The manufacturer's liability cannot exceed the purchase price of the device according to the law.
Do not make any modification on the instrument and do not try to repair it. Reparation should be made by authorized service staff.
Do not operate the system before making assembly in compliance with the assembly chart related to the instrument.
Products which do not contain label and serial number are considered to be excluded from the warranty scope.
The instrument's useful life, determined and announced by the ministry, is 10 years.
Table of Contents :
DX-ELF
Model :

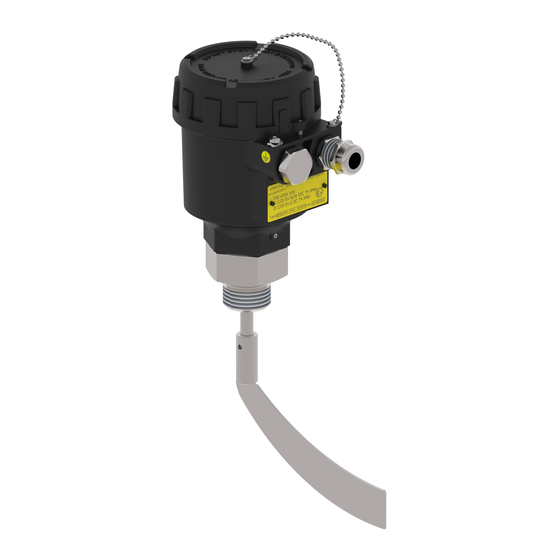

ROTARY LEVEL SWITCH
1783
is broken, take measures in order to prevent accidents and losses which can occur in its system.
. User is responsible for accidents and losses arising
Model : 04-2022-008
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ENSIM SENSORS DX-ELF 101
Summary of Contents for ENSIM SENSORS DX-ELF 101
- Page 1 Model : 04-2022-008 OPERATING DX-ELF Model : MANUEL ROTARY LEVEL SWITCH Information in this manual is reviewed and completely reliable. Responsibility is not assumed due to any typing error. Products in this manual are available only for information purpose and they may be changed without notice. Models : 1783 Important Notes:...
-
Page 2: General Information
1. General Information : Check that there is no damage on the packages during the transportation immediately after the material acceptance. If packages are damaged, open the packages immediately and check whether products are affected or not, if there is any damage, send your complaint report to the transporter company and its photocopy to the address of our company. - Page 3 Product Label 1783 Rotary Level Switch DX-ELF 101-1-006-31-1-1-81-1-02-00/0 24VDC +/- %10 2A/250 VAC 2xNO-NC (SPDT) -20...+90°C / -0,6 ... +0,6 bar -20...+60°C IE18030011-0014 www.ensim.com.tr MADE IN TURKIYE Insulation Label Metal www.ensim.com.tr Label TSE 18ATEX0099 ll 1/2 G Ex d llC Tx*1 Ga/Gb...
- Page 4 All safety instructions must be read and fullfilled. - All notes below must be paid attention to avoid dangers that might occur near operator and his environment. - Installation of this device , usage and service must be done by people who read manual and have knowledge about work safety. -Products must be controlled, if its mounted properly according to zone map of products by user -Work safety, accident prevention regulations and universal installation standards must be complied.
- Page 5 ta/tb IIIC IP66 Explosive Environment Proctection Equipment Group Equipment Category Explosive Atmosphere Type Explosive Proctection Proctection Type Dust Type Temperature Class (Max.Surface Temperature) Housing Protection Class IP66 Explosive Environment Proctection Equipment Group Equipment Category Explosive Atmosphere Type Explosive Proctection Proctection Type Gas Type Temperature Class (Max.Surface Temperature)
-
Page 6: Installation
2. Installation : Installation of device must be done by only authorized staff, that has known about 2014/34/EU criterias, for ensuring safety against explosion and liable against preventing harms to third party Installation of the instrument should be made only by authorized staff. Do not apply force to the instrument during the installation! Do not use the level switch with a greater pressure than recommended pressure. - Page 7 Process Side Factory Area Process Side ZONE 20 / 0 ZONE 20 / 0 (Safe) ZONE 21 / 1 ZONE 21 / 1 ZONE 21 / 1 ZONE 22 / 2 ZONE 22 / 2 ZONE 22 / 2...
-
Page 8: Modular Structure
Make the electrical connection of the instrument according to details on its label, table and cable figures in this manual. ELF-Dx ELF-Dx Note : MODULAR STRUCTURE:... - Page 9 Note :...
- Page 10 90°C Opt. 150°C (-20)...+60°C 90°C Opt. 150°C 90°C Opt. 150°C 90°C Opt. 150°C 90°C Opt. 150°C...
- Page 11 150°C Opt.200°C 150°C Opt.200°C...
- Page 12 90°C Opt. 150°C 90°C Opt. 150°C...
- Page 14 Standard Mini Double-Baded Double-Baded Scimitar Paddle Scimitar Paddle Collapsible Paddle Collapsible Paddle (258mm) (138mm) (265mm) (540mm) Paddle 01 Paddle 03 Paddle 05 Paddle 11 Paddle 02 Paddle 04 Paddle 06 Cross-Wing Cross-Wing Single Wing Single Wing Paddle Paddle Paddle Paddle (105x90mm) (148x98mm) (75x35mm)
- Page 16 Order Form : Please consider sample models when coding MODEL DX-ELF CERTIFICATE SHAFT TYPE - (STEM LENGHT) PADDLE TYPE CONNECTION Those can be choosen(applicable)only products with 90 Celcius working temprature. CONNECTION MATERIAL POWER SUPPLY REVOLUTIONS PER MINUTE...
- Page 17 MATERIAL OF POWDER FEELTING ROLLER HOUSING MATERIALS ELECTRICAL CONNECTION OPTIONAL Important Note : In hight temprature aplications , felting and protection material must be selected appropriately. SAMPLE...
- Page 18 WARNINGS !!! No material shall not drop on the pedal. Do not pull the cable strongly, Please keep away from magnetic materials otherwise the characteristics like iron board ; otherwise the Cover the top with guard plate. might be changed. characteristics might be affected.
- Page 19 Failure Possible cause Troubleshooting/remedy Housing is broken Product fell down or suffered external impact Notify the authorized service center. Noises come from -Bearing may be broken. -Notify the authorized service center. the product. -Bearing lubrication function may be degraded. -Check and retighten the screws. -Spring may be broken.
