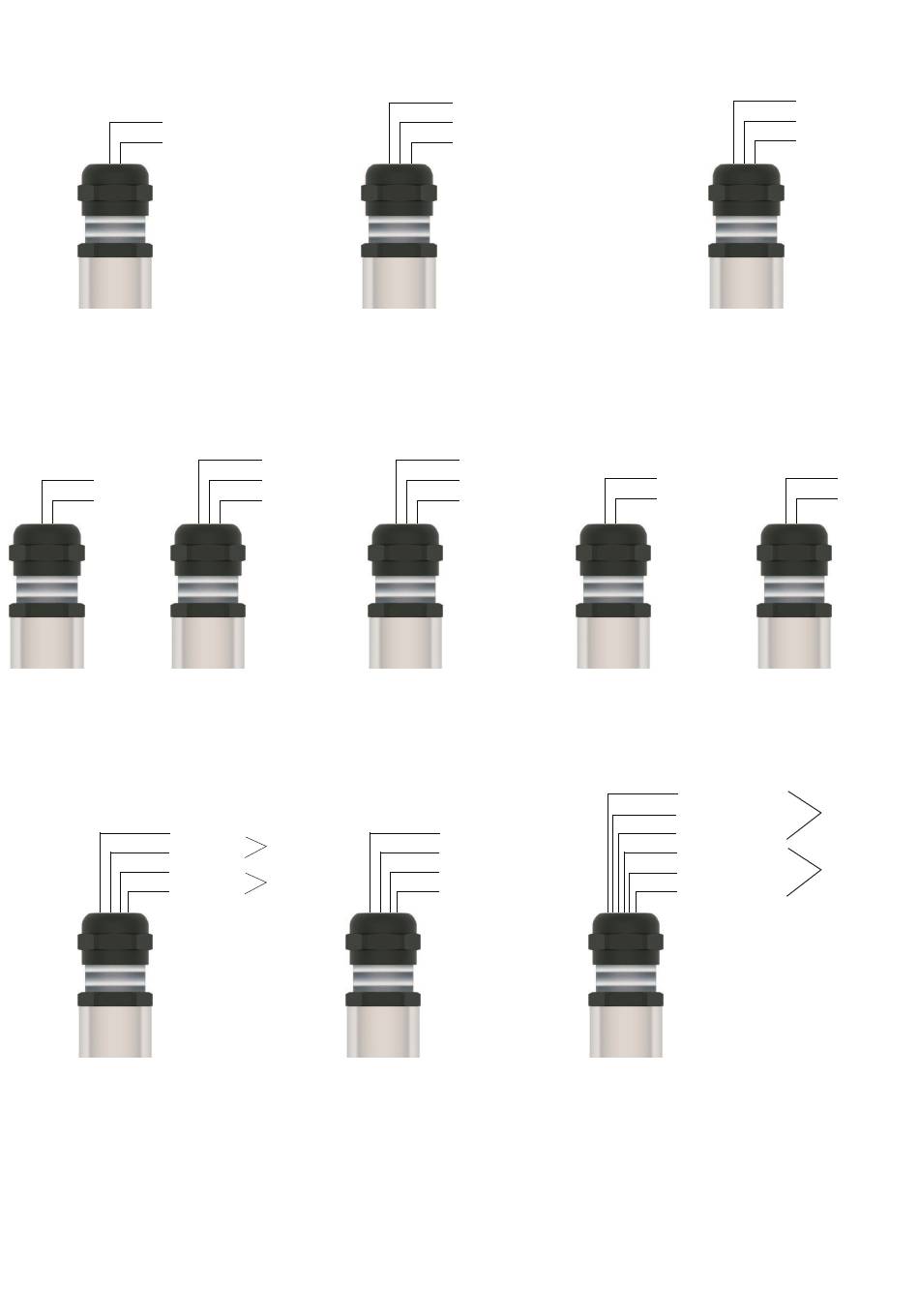

PG Socket or Cable
PVC Cable (105 °C)
Black
Blue
Single contact
NO or NC
Silicon Cable (200 °C)
Brown
Blue
Single contact
Two pieces single contact
NO or NC
PVC Cable (105 °C)
Green
Yellow
Brown
White
Two pieces independent contact
NO or NC
K01 , K02, K03
Two pieces single contact
Silicon Cable (200 °C)
Brown - NO
Yellow - Common
Blue - NC
Two pieces single contact
NO or NC
Top Contact
Bottom Contact
Three piecescontact
PVC Cable (105 °C)
Brown - Top Contact
Black - Common
Blue - Bottom Contact
NO or NC
Silicon Cable (350 °C)
Brown - NO
Yellow - Common
Blue - NC
NO or NC
PVC Cable (105 °C)
Yellow - Top Contact
Green - Medium Contact
White - Bottom Contact
Brown- Common
Two pieces independent contact
NO or NC
9
PVC Cable (105 °C)
Single contact
NO / NC (SPDT)
PTFE Cable (230 °C)
Red
White
Single contact
NO or NC
PVC Cable (105 °C)
Blue - NC
Yellowý - NO
Red - Common
Green - NC
White - NO
Brown- Common
NO / NC (SPDT)
Brown - NC
Black - Common
Blue - NO
PTFE Cable (350 °C)
Red
White
Single contact
NO or NC
Top Contact
Bottom Contact
