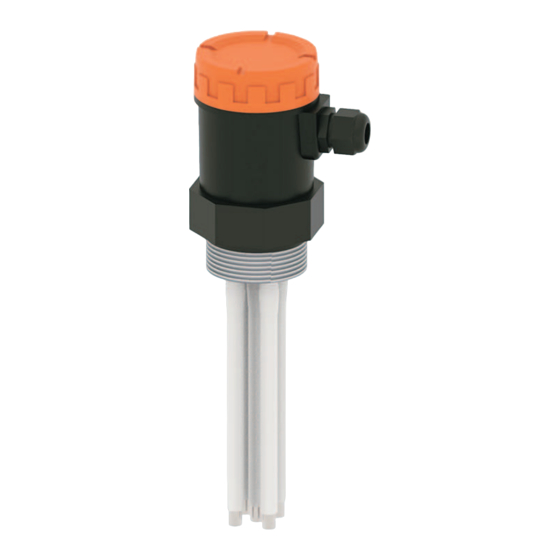

ENSIM SENSORS ELC 21d Operating Manual

OPERATING
MANUEL
Information in this manual is reviewed and completely reliable. Responsibility is not assumed due to any typing error.
Products in this manual are available only for information purpose and they may be changed without notice.
Models :
ELC 21d, ELC 31d
ELC 21m, ELC 31m, ELC 41m, ELC 51m
ELC 21, ELC 31 , ELC 41
ELC 21p, ELC 31p, ELC 41p, ELC 51p
Important Notes:
Used Symbols :
: Caution
Please read this manual carefully before installation of the level switch. User is responsible for accidents and losses arising
from failure to comply with the warnings in this manual.
In the event that level switch is broken, take measures in order to prevent accidents and losses which can occur in its system.
There is not any fuse and circuit breaker on the instrument; they should have been added to the system by the user.
This manual should be stored in an easily accessible place for subsequent use.
The manufacturer's liability cannot exceed the purchase price of the device according to the law.
Do not make any modification on the instrument and do not try to repair it. Reparation should be made by authorized service staff.
Do not operate the system before making assembly in compliance with the assembly chart related to the instrument.
Products which do not contain label and serial number are considered to be excluded from the warranty scope.
The instrument's useful life, determined and announced by the ministry, is 10 years.

Table of Contents :

1. General Information...........................................................................................................................................................................2
2. Installation .........................................................................................................................................................................................4
3. Failure Detection..............................................................................................................................................................................7
4. Disassembly of Instrument ............................................................................................................................................................7
5. Service .............................................................................................................................................................................................7
6. Recalibration....................................................................................................................................................................................7
7. Repair................................................................................................................................................................................................7
8. Disposal ...........................................................................................................................................................................................7
9. Terms of Warranty ..........................................................................................................................................................................7
10. Terms of Return …………………………………………………………………………………………................................................…7
ELC
Model :
LEVEL SWITCH -
Conductivity Type
: Disposal
: Note
1
Model: 24-2022-009
