Installation - ENSIM SENSORS ELT Operating Manual

ELT 103
HEX
R
19
1.8. Target Group
This operating manual has been prepared for
qualified technical personnel.
1.9. Security Notes
Following notes should be taken into consideration in order to avoid dangers which can occur on the operator and around
the ambient:
Installation, operation and maintenance of this instrument should be made only by people who have read the operating manual and
who are knowledgeable about work safety!
It should be complied with work safety, accident prevention regulations and national installation standards.
Product should be used only within the scope of stated specifications!
You can assemble the instrument only when pressure is not available!

2. Installation :

2.1. General Notes
Installation of the instrument should be made only by authorized personnel.
Do not apply force to the instrument during the installation!
Do not use the level indicator with a greater pressure than recommended pressure.
Do not forget that instrument is precise, carry it carefully and prevent to be damaged.
It should be guaranteed that there are not any magnetic particles.
2.2. General Installation Stages
*Remove level indicator from the box carefully
*Check whether gasket is appropriate for fluid or not. If is not appropriate, contact with the producer.
*Then, apply below mentioned explanations according to structure of the design.
2.3. Special Notes
*Please ensure that there is no mechanical stress on the shaft following installation.
Such case will cause slipping in thecharacteristic curve.
*Level switch should be mounted vertical on tank's plate
*Allocate valve certainly in the process connection while instrument is used.
*Allocate blowdown valve under bottom flange for blowdown.
*If instrument is mounted outside and if there is any danger of lightning or
excessive pressure, take preventive measures by taking necessary measures.
2.4. Installation For Mechanical Connections
*Use appropriate O-Ring or gasket for tightness.
*Ensure that its surface is clean and smooth.
*Assemble the instrument manually.
ELT 104
HEX
R

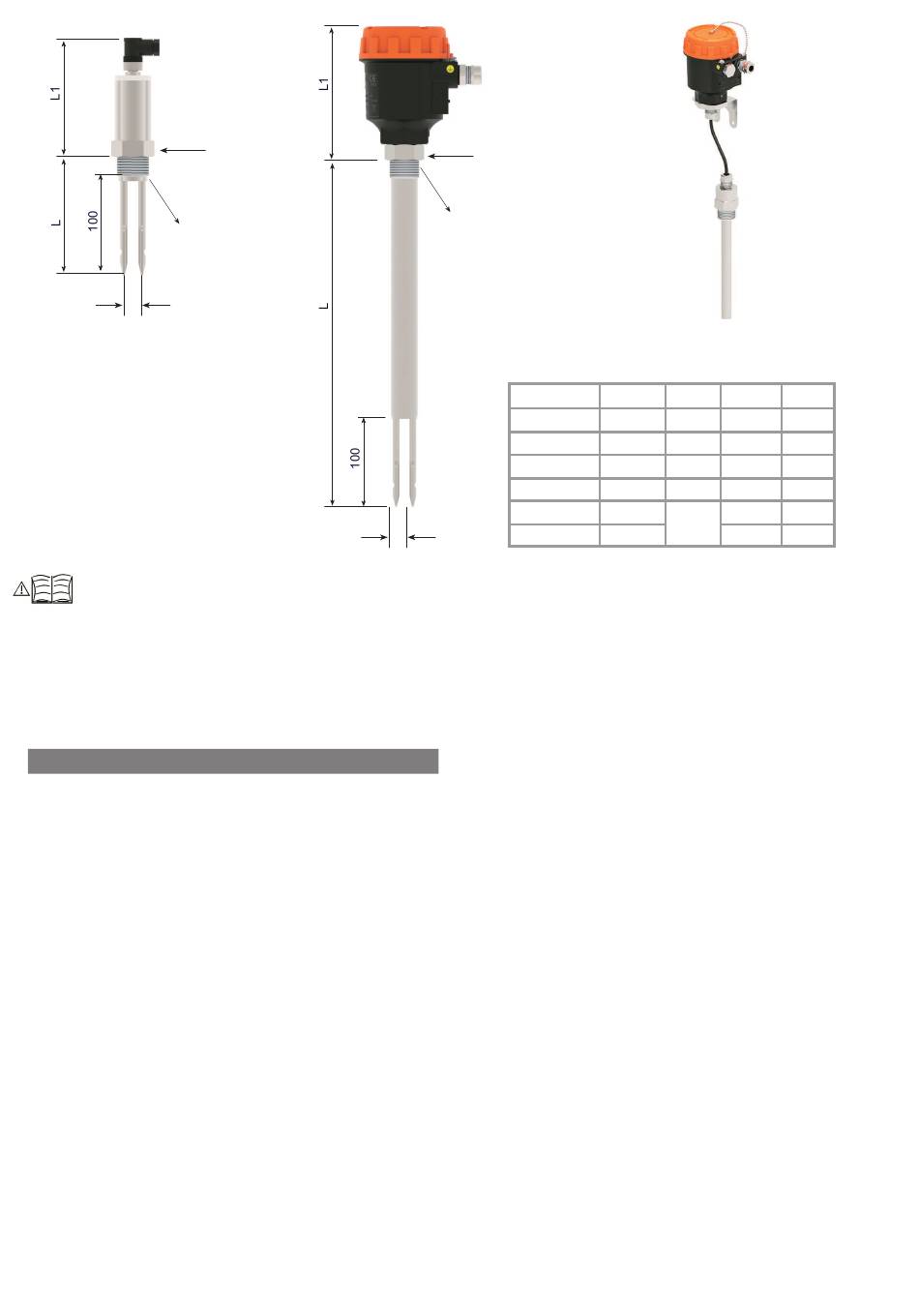

Dimensions:
ELT 101
ELT 201
ELT 102
ELT 202
ELT 103
ELT 104
19
ELT 204
5
Detachable
Housing
Connection L L1
R (mm) (mm) (mm)
1” BSP 220 134
1” BSP 220 217
1” BSP 125 134
1” BSP 125 217
1” BSP 125 115
1” BSP Max. 134
1” BSP 1500 217
HEX
(mm)
40
40
38
38
38
38
38
