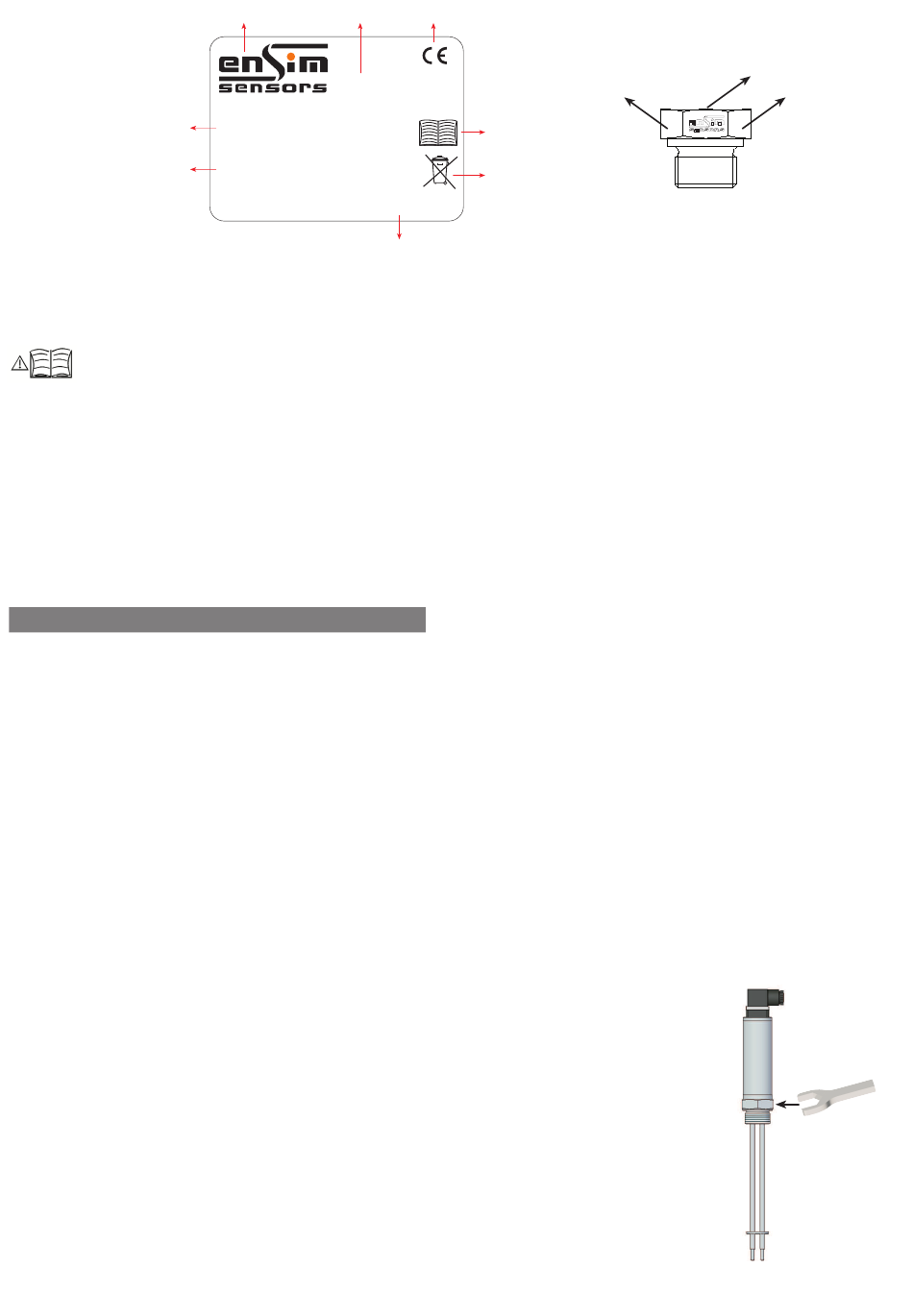

1.5.Label Information
Model
Serial
Number
1.6. Target Group
This operating manual has been prepared for qualified technical personnel.
1.7. Güvenlik Notlarý
Aþaðýdaki notlar operatör ve çevresinde oluþabilecek tehlikelerden kaçýnmak için dikkate alýnmalýdýr.
Bu cihazýn kurulumu, kullanýmý ve bakýmý yalnýzca kullaným kýlavuzunu okumuþ ve iþ güvenliði konusunda bilgili kiþilerce yapýlmalýdýr!
Ýþ güvenliði, kaza önleme yönetmelikleri ve ulusal kurulum standartlarýna uyulmalýdýr.
Ürün yalnýzca belirtilen spesifikasyonlar dahilinde kullanýlmalýdýr!
Cihazý yalnýzca basýnç olmadýðýnda monte edebilirsiniz!
1.8. Package and package contents :
Please check whether you have taken delivery of below listed content completely or not and check
its conformity with criterions in your order:
* Level Switch
* This operating manual

2. Installation :

2.1. General Notes
Installation of the instrument should be made only by authorized personnel.
Do not apply force to the instrument during the installation!
Do not use the level indicator with a greater pressure than recommended pressure.
Do not forget that instrument is precise, carry it carefully and prevent to be damaged.
It should be guaranteed that there are not any magnetic particles.
2.2. General Installation Stages
*Remove Level switch from the box carefully
*Check whether gasket is appropriate for fluid or not. If is not appropriate, contact with the producer.
*Then, apply below mentioned explanations according to structure of the design.
2.3. Special Notes
*Please ensure that there is no mechanical stress on the shaft following installation. Such case will cause slipping in thecharacteristic curve.
*Level switch must be placed upright or horizontal.
*In the operating conditions, Level switch may be hot according
to situation of fluid, in this case, do not touch the indicator, otherwise your skin is damaged.
2.4. Installation For Mechanical Connections
*Use appropriate O-Ring or gasket for tightness.
*Ensure that its surface is clean and smooth.
*Assemble the instrument manually.
*Connect the contacts as shown in the figure.
(For G1/2" max. 20 Nm , For G2" max. 20 Nm)
2.5. Electrical Installation
Make the electrical connection of the instrument according to details on its label, table and cable figures in this manual
Manufacturer Brand Product Name
LEVEL SWITCH
Type : ELC21d-0-009-22-01-01-00/0
Output : 3 x Elektrod
S.N. : IE20050001-0001
MADE IN TURKIYE www.ensim.com.tr
Approval Sign
Warning
Symbols
Warning
Symbols
Manufacturer
Website
4
Mark
Model Number
Serial Number
