1
PANEL DESCRIPTION

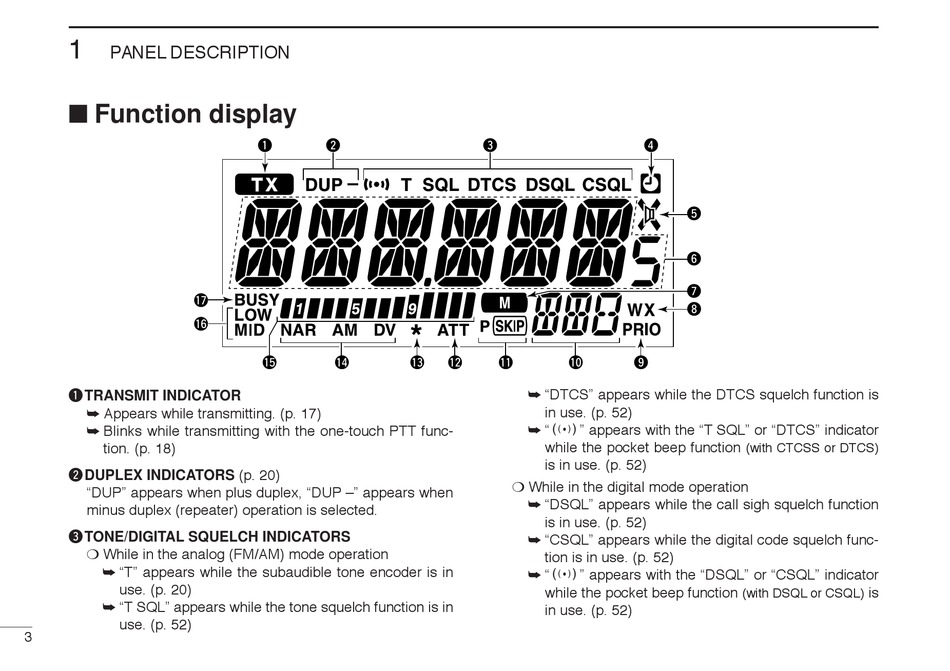

■ Function display

!7
!6
q TRANSMIT INDICATOR
➥ Appears while transmitting. (p. 17)
➥ Blinks while transmitting with the one-touch PTT func-
tion. (p. 18)
w DUPLEX INDICATORS (p. 20)
"DUP" appears when plus duplex, "DUP –" appears when
minus duplex (repeater) operation is selected.
e TONE/DIGITAL SQUELCH INDICATORS
❍ While in the analog (FM/AM) mode operation
➥ "T" appears while the subaudible tone encoder is in
use. (p. 20)
➥ "T SQL" appears while the tone squelch function is in
use. (p. 52)
3
q w
!5 !4 !3
e
!2 !1 !0
➥ "DTCS" appears while the DTCS squelch function is
in use. (p. 52)
➥ "S" appears with the "T SQL" or "DTCS" indicator
while the pocket beep function
is in use. (p. 52)
❍ While in the digital mode operation
➥ "DSQL" appears while the call sigh squelch function
is in use. (p. 52)
➥ "CSQL" appears while the digital code squelch func-
tion is in use. (p. 52)
➥ "S" appears with the "DSQL" or "CSQL" indicator
while the pocket beep function
in use. (p. 52)
r
t
y
u
i
o
(with CTCSS or DTCS)
(with DSQL or CSQL)
is
