Icom ID-800H Instruction Manual page 9

D Optional MB-58 installation

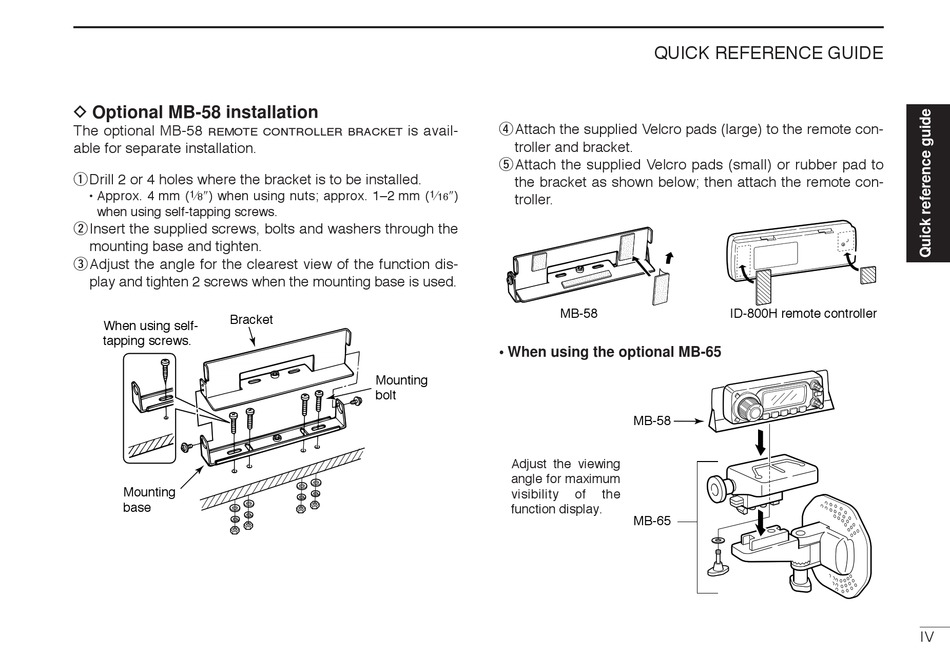

The optional MB-58
REMOTE CONTROLLER BRACKET
able for separate installation.
q Drill 2 or 4 holes where the bracket is to be installed.
• Approx. 4 mm ( 1 ⁄ ") when using nuts; approx. 1–2 mm (
8
when using self-tapping screws.
wInsert the supplied screws, bolts and washers through the
mounting base and tighten.
eAdjust the angle for the clearest view of the function dis-
play and tighten 2 screws when the mounting base is used.
Bracket
When using self-
tapping screws.
Mounting
base
rAttach the supplied Velcro pads (large) to the remote con-
is avail-
troller and bracket.
tAttach the supplied Velcro pads (small) or rubber pad to
the bracket as shown below; then attach the remote con-
1 ⁄
")
16
troller.
• When using the optional MB-65
Mounting
bolt
Adjust the viewing
angle for maximum
visibility
function display.
QUICK REFERENCE GUIDE
MB-58 ID-800H remote controller
MB-58
of the
MB-65
IV
