Chapter 2: Jumpers and Connectors

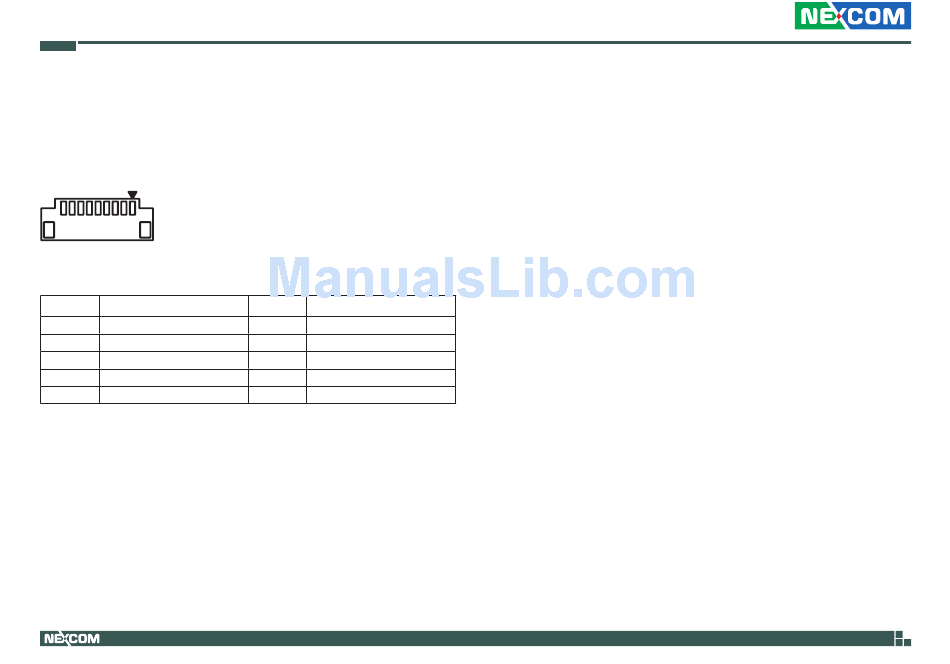

NXM TPM Connector
Connector type: 1x10 10-pin header
Connector location: TPM_NXM
1
10
Pin
Definition
1
GND
3
33M_CLK4_C
5
S_LAD3
7
S_LAD1
9
F_SERIRQ#
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
S_PLTRST#
4
F_FRAME#
6
S_LAD2
8
S_LAD0
10
+3V
17
NEX 912 User Manual
