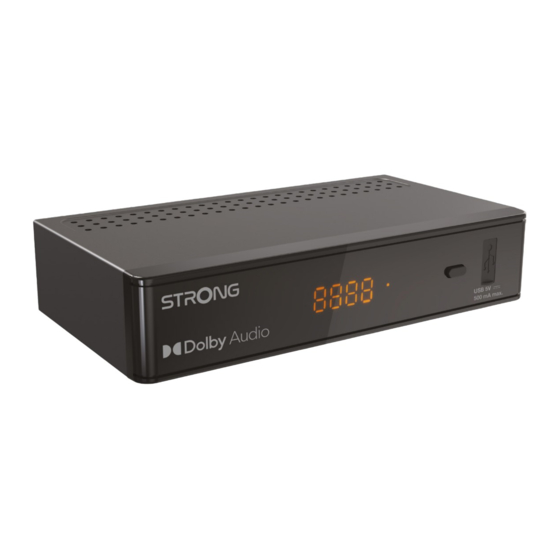

Strong SRT 7015 Manual

Digital hd satellite receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DIGITAL HD SATELLITE RECEIVER
SRT 7015
Bedienungsanleitung
Brugervejledning
Manuel d'utilisation
Brukerveiledning
Manuale utente
Gebruiksaanwijzing
Manual del usuario
Användarhandbok
Manual do utilizador
Korisnički priručnik
Használati útmutató
Ръководство на потребителя
Uživatelský manuál
Посібник користувача
www.strong.tv

Advertisement

Table of Contents
loading

Related Manuals for Strong SRT 7015

Summary of Contents for Strong SRT 7015

  • Page 1 DIGITAL HD SATELLITE RECEIVER SRT 7015 Bedienungsanleitung Brugervejledning Manuel d’utilisation Brukerveiledning Manuale utente Gebruiksaanwijzing Manual del usuario Användarhandbok Manual do utilizador Korisnički priručnik Használati útmutató Ръководство на потребителя Uživatelský manuál Посібник користувача www.strong.tv...
  • Page 2 0850 15 05 50 +34 91 119 61 76 +386 1 828 08 58 support_fr@strong.tv support_ua@strong.tv +385 1 344 57 66 +380 (44) 238 61 50 Supplied by STRONG Austria Represented by STRONG Ges.m.b.H. Teinfaltstraße 8/4.Stock A-1010 Vienna, Austria Email: support_at@strong.tv www.strong.tv...
  • Page 3 Hereby, STRONG declares that the SRT 7015 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.strong.tv/en/doc Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products may change.

  • Page 4: Table Of Contents

    TABLE OF CONTENT 1. INSTRUCTION 1.1 Safety Instructions 1.2 Storage 1.3 Equipment Set-up 1.4 Accessories 1.5 Usage of external USB devices 2. YOUR RECEIVER 2.1 PIN code default: 0000 2.2 Front and side panel 2.3 Rear panel 2.4 Remote Control 2.5 Installing the batteries 2.6 Using the remote control 3.
  • Page 5 6.4 Teletext 6.5 Subtitles 6.6 EPG (Electronic Programme Guide) 6.7 Favourite channels 7. MAIN MENU 7.1 Installation menu 7.1.1 Installation 7.1.2 DiSEqC 1.2 7.1.3 SatCR 7.1.4 Single satellite search 7.1.5 Transponder Edit Options 7.1.5.1 Transponder List 7.1.5.2 Satellite Edit options 7.2 TV Channel List and Radio Channel List 7.3 Multimedia 7.3.1 Media Player...

  • Page 6: Instruction

    1. INSTRUCTION 1.1 Safety Instructions DO NOT INSTALL YOUR RECEIVER: „ In a closed or poorly ventilated cabinet; directly on top of or under any other equipment; on a surface which might obstruct the ventilation slots. DO NOT EXPOSE THE RECEIVER OR ITS ACCESSORIES: „...

  • Page 7: Accessories

    „ It is advised not to store important information on USB storage devices used with the receiver. Always make backups of data on your USB storage device before using it with this receiver. STRONG will not take responsibility for any loss of information or circumstances caused by loss of information.

  • Page 8: Rear Panel

    2.3 Rear panel Fig. 2 DIGITAL HD SATELLITE RECEIVER 7015 Supplied by STRONG Austria 13/18 V 500 mA max. COAXIAL SAT IN S/PDIF MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES. DOLBY, DOLBY AUDIO AND THE DOUBLE-D SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES LICENSING CORPORATION.
  • Page 9 1. q Turns the receiver ON/Standby 2. ! To turn the sound on or off 3. 0-9 Channel number and numeric value input 4. TV/R Toggles between TV and radio mode Same as MENU  6. FAV To access your favourite channels. Toggles between available favourite groups 7.

  • Page 10: Installing The Batteries

    2.5 Installing the batteries Fig. 4 Remove the battery cover from the remote control and put 2x AAA size batteries inside the compartment. The diagram inside the battery compartment shows the correct way to install the batteries. 1. Open the cover 2.

  • Page 11: Connections

    3. CONNECTIONS 3.1 Basic connection using an HDMI cable Fig. 6 DIGITAL HD SATELLITE RECEIVER 7015 Supplied by STRONG Austria 13/18 V 500 mA max. COAXIAL SAT IN S/PDIF MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES. DOLBY, DOLBY AUDIO AND THE DOUBLE-D SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES LICENSING CORPORATION.

  • Page 12: Connecting Multiple Fixed Lnbs Using A Diseqc Switch

    3.2 Connecting multiple fixed LNBs using a DiSEqC switch Fig. 7 DIGITAL HD SATELLITE RECEIVER 7015 Supplied by STRONG Austria 13/18 V 500 mA max. COAXIAL SAT IN S/PDIF MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES. DOLBY, DOLBY AUDIO AND THE DOUBLE-D SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES LICENSING CORPORATION.

  • Page 13: Connecting A Usb Storage Device

    3.4 Connecting a USB storage device Fig. 9 USB 5V 500 mA max. This port can be used for USB storage devices such as USB pen drives or HDD with a maximum peak current of 500 mA. It is recommended to use USB 2.0 storage devices for playback of video files or HD movies.

  • Page 14: Antenna Connection

    4.1.2 Antenna Connection Press t u button to select LNB. LNB includes Fixed Antenna and Motor Antenna. 4.1.3 Satellite List Press p or q button to highlight satellite, press OK button select a satellite. A heart symbol will mark the selected satellite(s). RED button: Edit satellite GREEN button: Add satellite BLUE button: Delete satellite...

  • Page 15: Search

    5. QUICK GUIDE FOR USING YOUR RECEIVER We at STRONG understand that you can't wait to enjoy your new HD receiver. The following quick guide will make you familiar with the basic operation of this device. We do, however, advice you to read the full manual to get the best performance from your STRONG HD receiver.

  • Page 16: Using The Button

    6.1.4 Using the CH+/CH- buttons CH+ will switch to a higher channel. CH- will switch a lower channel. 6.1.5 Using the button Use the 9 button for switching between the two last viewed channels 6.2 Info Banner At any time during viewing mode you can press the INFO button to get information about the current channel as well as the current and following programme*.

  • Page 17: Favourite Channels

    6.7 Favourite channels Use the FAV button to access your favourite channels lists and use t u to toggle between available favourite groups and general channel lists. Please refer to section 7.3 for details on how to create favourite lists. 7. MAIN MENU Throughout the menu: Press MENU and select items by using the pq buttons.

  • Page 18: Diseqc

    SatCR LNB's are used for SatCR systems, mainly in apartment blocks. Enter the IF channel number according the assigned (user band), then the corresponding centre frequency. If the system only supports one satellite, sat position is 1. The version of SatCR is either 1.0 or 2.0. Version 1.0 can have up to 8 different users, version 2.0 can have up to 32, it depends on the LNB used.

  • Page 19: Satcr

    Limit Setup To setup the limits the dish should not exceed when moving, in case of physical obstructions. Default is disable limit (not active). If needed, the motor can physically be brought to its 0° reference position, to align the dish south when in the northern hemisphere (or north for southern hemisphere) first.

  • Page 20: Single Satellite Search

    NOTE: SatCR can only work in combination with an optional multi-output satellite splitter and a SatCR LNB, example STRONG type SRT L780 (max. 4 users). Note: SatCR cannot be combined with any other DiSEqC function. SatCR systems are mainly installed by professional experts.

  • Page 21: Transponder Edit Options

    These must have selected before in the Satellite List. The procedure is the same as for Single Satellite Search, except for the Satellites mentioned in the top line. All those will be scanned one after the other. 7.1.5 Transponder Edit Options Scanning by transponder (Manual Scan) Select TP List in the Installation menu.

  • Page 22: Tv Channel List And Radio Channel List

    7.2 TV Channel List and Radio Channel List The procedure in the Edit Channel menus is equal for both the TV and Radio Channel List. The description below assumes you're in the TV Channel List. However, you can use, TV/R to toggle between TV and Radio channel lists.
  • Page 23 Locking programmes You can lock selected programmes for restricted view. 1. Select the programme you want to lock, then press the RED button and press OK. The programme is now marked as locked. 2. Repeat the previous step to select more programmes 3.

  • Page 24: Multimedia

    Picture – supported file formats are JPG and BMP* * STRONG cannot guarantee the playback of video files although extensions are listed here, as the correct playback depends on codec used, data bit rate and resolution as well. Please consult the STRONG Hotline in your country to get more details.

  • Page 25: System Setup

    Image Your receiver allows you to watch a slide show with all available photos in the chosen folder. Choose a folder with photo files for the slide show. In the Image mode following functions are available: To pause/resume slide show. During the slideshow, the orientation of the image can be rotated.

  • Page 26: Local Time Setting

    4:3 Letterbox 4:3LB (Letterbox) For 4:3 TV screens. The unit will display all content in its original aspect ratio. Programmes formatted in 16:9 will be presented with black bars on the top and bottom. 4:3 Pan&Scan 4:3PS (Pan&Scan) For 4:3 TV screens.16:9 content will have the extreme left and right portions cut off and presented full screen.
  • Page 27 Parental Lock Set the age limit for a viewer if the viewer is underage. These only functions if a broadcaster sends an age-signalling for the current programme. You can only enter the Parental Lock menu by entering your password. The default password 0000 Menu Lock Select either On or Off.

  • Page 28: Dump Channel List

    There may be various reasons for abnormal operation of the receiver. Please check the receiver according to the procedures shown below. If the receiver does not work properly after checking it, please contact your local Service line or STRONG dealer. Alternatively, you can send a support mail via our website: www.

  • Page 29: Specifications

    NEVER open or disassemble your receiver. This may cause a dangerous situation and will void the warranty. Problem Possible cause What to do The standby indicator The mains lead is unplugged/the Check the mains lead/switch the does not light up multipoint connector is switched off.
  • Page 30 Audio playback: MP3, Flac* Picture view: JPG, BMP* * STRONG cannot guarantee the playback of files although extensions are listed, as it depends on codec used, data bit rate and resolution (all MPEG codec formats are supported). Connectors SAT IN USB 2.0 port: 5 V/500 mA (max.) supported HDMI S/PDIF (coax.)
