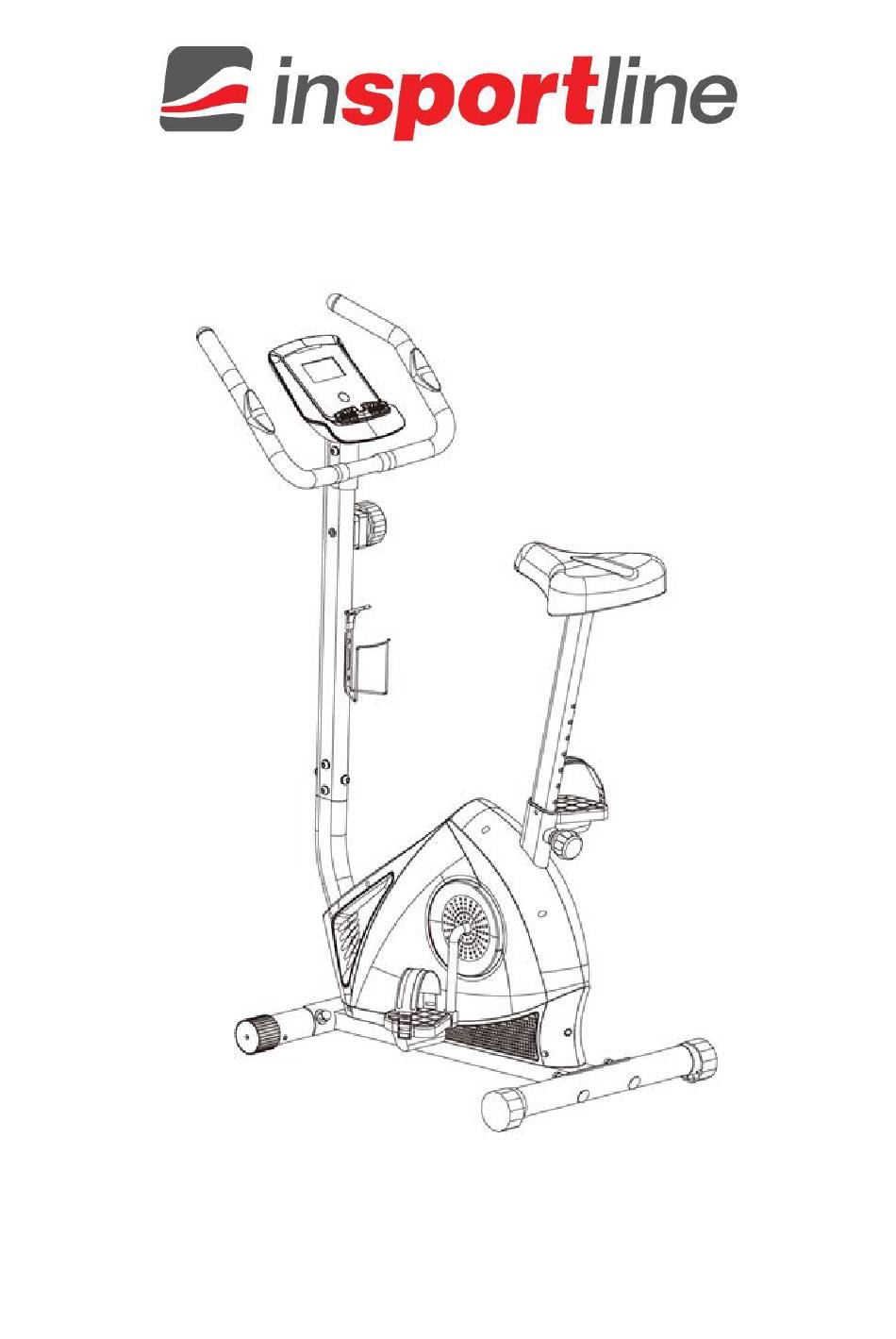

USER MANUAL – EN

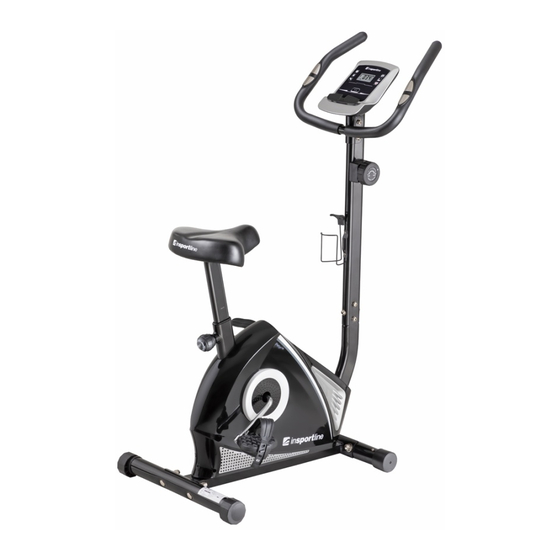

IN 20071 Exercise bike inSPORTline Petyr UB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Petyr UB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Insportline Petyr UB

Summary of Contents for Insportline Petyr UB

  • Page 1 USER MANUAL – EN IN 20071 Exercise bike inSPORTline Petyr UB...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS ........................3 IMPORTANT NOTES ..........................3 PARTS LIST ............................5 DIAGRAM ..............................7 ASSEMBLY ............................. 8 CONSOLE ............................. 11 TROUBLESHOOTING .......................... 12 USE ............................... 12 EXERCISING INSTRUCTIONS ......................13 CORRECT BODY POSTURE ....................... 13 MAINTENANCE ............................ 13 STORAGE .............................

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS • To ensure the best safety of the exerciser, regularly check it on damages and worn parts. • If you pass on this exerciser to another person or if you allow another person to use it, make sure that that person is familiar with the content and instructions in these instructions. •...
  • Page 4 • Be sure to set up the exerciser in a dry and even place and always protect it from humidity. If you wish to protect the place particularly against pressure points, contamination, etc., it is recommended to put a suitable, non-slip mat under the exerciser. •...

  • Page 5: Parts List

    PARTS LIST Description Description Main frame Screw ST4.2x25 Handlebars Flywheel Handlebar post Screw M6x36 Seat post U bracket Spring washer Ø6 Front stabilizer Rear stabilizer Nut M6 Idle wheel bracket Nut M10 Foam grip Ø30xØ24x455 Screw M6x10 End cap Ø25 Washer Ø12xØ6x1.5 Sensor cable 750 mm Bearings 6000 ZZ...
  • Page 6 TOOLS Allen key S6 – 1 pcs Multifunction screw S10, S23, S14, S15 – 1 pcs Multifunction screw S10, S13, S17, S19 – 1 pcs ASEEMBLY MATERIAL 60. Nut M10 – 4 pcs 58. Screw M10 x 57 – 4 pcs 59.

  • Page 7: Diagram

    DIAGRAM...

  • Page 8: Assembly

    ASSEMBLY STEP 1 Attach the rear stabilizer (6) to the main frame (1) with 2 screws (58), 2 screws (59) and 2 nuts (60). Attach the front stabilizer (5) to the main frame (1) with 2 screws (58), 2 screws (59) and 2 nuts (60). STEP 2 Remove the 4 screws (21), 4 washers (22), 2 screws (12) and 2 washers (13) from the main frame (1).
  • Page 9 STEP 3 Remove the 3 nuts (27) and 3 washers (22) from the seat (28). Attach the seat (28) to the seat post (4) with 3 nuts (4) and 3 washers (22). Insert the sleeve (26) into the seat post (4). Adjust the height of the seat post (4) using the knob (25). STEP 4 Remove the 4 screws (12), 4 washers (22) from the handlebar post (3).
  • Page 10 STEP 5 Remove the 4 screws (16) from the console (14). Connect the cables (10 and 15) to the cables from the console (14) Insert the excess cables into the handlebar post (3). Attach the console (14) to the handlebar post (3) with 4 screws (16). Attach the left pedal (53) to the left crank (52) counterclockwise.

  • Page 11: Console

    CONSOLE DISPLAY TIME 00:00-99:59 min:sec 0.0 – 999.9 km/h or mil/h SPEED 0.00 – 99.99 km or mil DISTANCE 0.0 – 999.9 kcal CALORIES 0.00 – 99.99 km or mil ODOMETER* 40 – 200 beats per minute PULSE* *According to version BUTTONS MODE/SELECT Confirm the function selection.

  • Page 12: Troubleshooting

    BATTERY: Console uses two AA, one AAA battery or one 1.5V battery. TROUBLESHOOTING Error Solution Recumbent is not stable Stabilize with stabilizing feet The data is not displayed 1. Check the cable connection 2. Check the battery status 3. Replace the batteries No pulse detected 1.

  • Page 13: Exercising Instructions

    Bicycle exercise is an effective exercise for all busy people. Exercise on the exercise bike is effective in strengthening muscles, especially thighs, calves and buttocks. Regular exercise can lead to a slimmer figure. Exercise is recommended not only as a winter training for cyclists but also for people who want to burn excess calories.

  • Page 14: Storage

    • When noise is increased, it is necessary to check that all joints are tightened properly. • Place the product in a clean, ventilated and dry room. • Do not expose the device to direct sunlight. STORAGE Keep the exercise bike in a clean and dry environment. Make sure the power switch is turned off and the exercise bike is not plugged into the power socket.
  • Page 15 “The Buyer who is not the End Customer” is a Businessman that buys Goods or uses services for the purpose of using the Goods or services for his own business activities. The Buyer conforms to the General Purchase Agreement and business conditions. These Conditions of Warranty and Warranty Claims are an integral part of every Purchase Agreement made between the Seller and the Buyer.
  • Page 16 Goods defect, he and the Buyer shall make an agreement about an alternative solution. In case such agreement is not made, the Seller is obliged to provide the Buyer with a financial compensation in the form of a refund.
