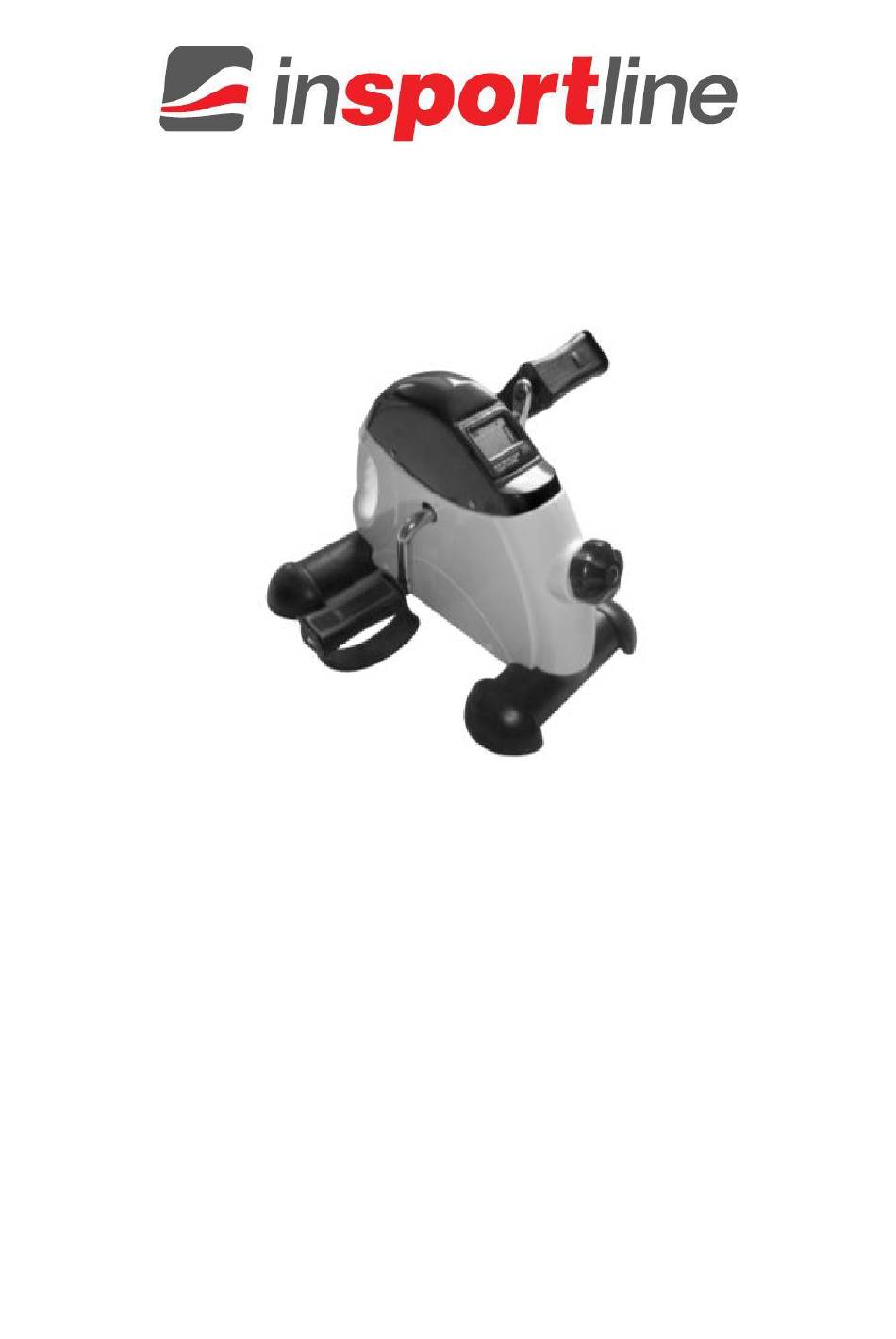

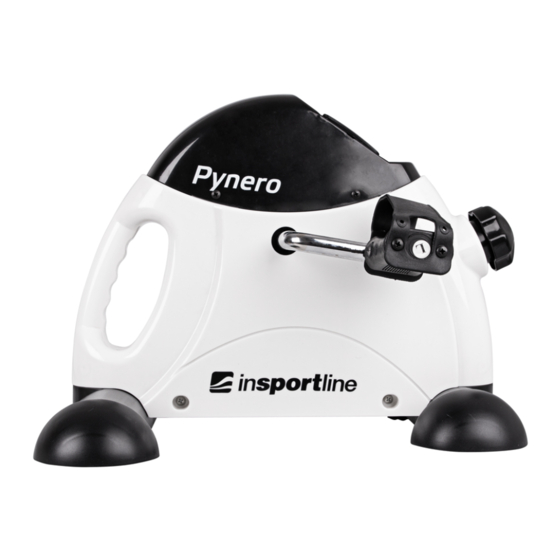

- Page 1 USER MANUAL – EN IN 20221 Mini exercise bike inSPORTline Pynero...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 PRODUCT DESCRIPTION ........................4 ASSEMBLY ............................. 5 CONSOLE ............................... 6 DIAGRAM ..............................7 PARTS LIST ............................8 MAINTENANCE ............................8 WARM UP ............................... 8 USE ................................. 9 ENVIRONMENT PROTECTION ......................9 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ........... 9... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS • WARNING! Product is designed to provide maximum safety during exercise, but it is necessary to follow all safety instructions. Read the manual carefully and keep it for future reference. • Owner is responsible for safe use. Teach other users about safe use. •... -
Page 4: Product Description
PRODUCT DESCRIPTION Main frame Display Stabilizers Right pedal Resistance adjustment knob Left pedal Screw – 4 pcs Wrench – 1 pcs Screwdriver – 1 pcs... -
Page 5: Assembly
ASSEMBLY STEP 1 Connect the stabilizers (3) with screws (A). STEP 2 Attach the right pedal (4) marked R to the right crank in a clockwise direction using the wrench B. Attach the left pedal (6) marked L to the left crank in a counter-clock wise direction using the wrench... -
Page 6: Console
CONSOLE DISPLAY T (TIME) Display time from start of the exercise. D (DISTANCE) Display distance from the start of the exercise. C (COUNT) Number of pedal revolutions. T-C (TOTAL COUNT) Number of pedal revolutions per minute. After resetting the value is 0. CA (CALORIES) Burned calories from the start of the exercise. -
Page 7: Diagram
DIAGRAM... -
Page 8: Parts List
PARTS LIST Name Qty. Name Qty. Console Screw M5x25 Top cover Screw M4x7 Pedal straps Side cover Pedals Main frame Screw M4x12 Resistance adjustment knob Flange Resistance rod Screw M6x12 Split pin Spacer Console sensor Flywheel Screw M5x10 Pedal crank Stabilizers Brake band bracket Anti-slip pad... -
Page 9: Use
Hamstring stretched Sit and outstretch your right leg. Rest the sole of your left foot against the inside of your right tight. Stretch out your right arm along your right leg as far as you can. Hold for 15 seconds and relax. Repeat all with your left leg and left arm. - Page 10 “The Buyer who is not the End Customer” is a Businessman that buys Goods or uses services for the purpose of using the Goods or services for his own business activities. The Buyer conforms to the General Purchase Agreement and business conditions. These Conditions of Warranty and Warranty Claims are an integral part of every Purchase Agreement made between the Seller and the Buyer.
- Page 11 Goods defect, he and the Buyer shall make an agreement about an alternative solution. In case such agreement is not made, the Seller is obliged to provide the Buyer with a financial compensation in the form of a refund.
