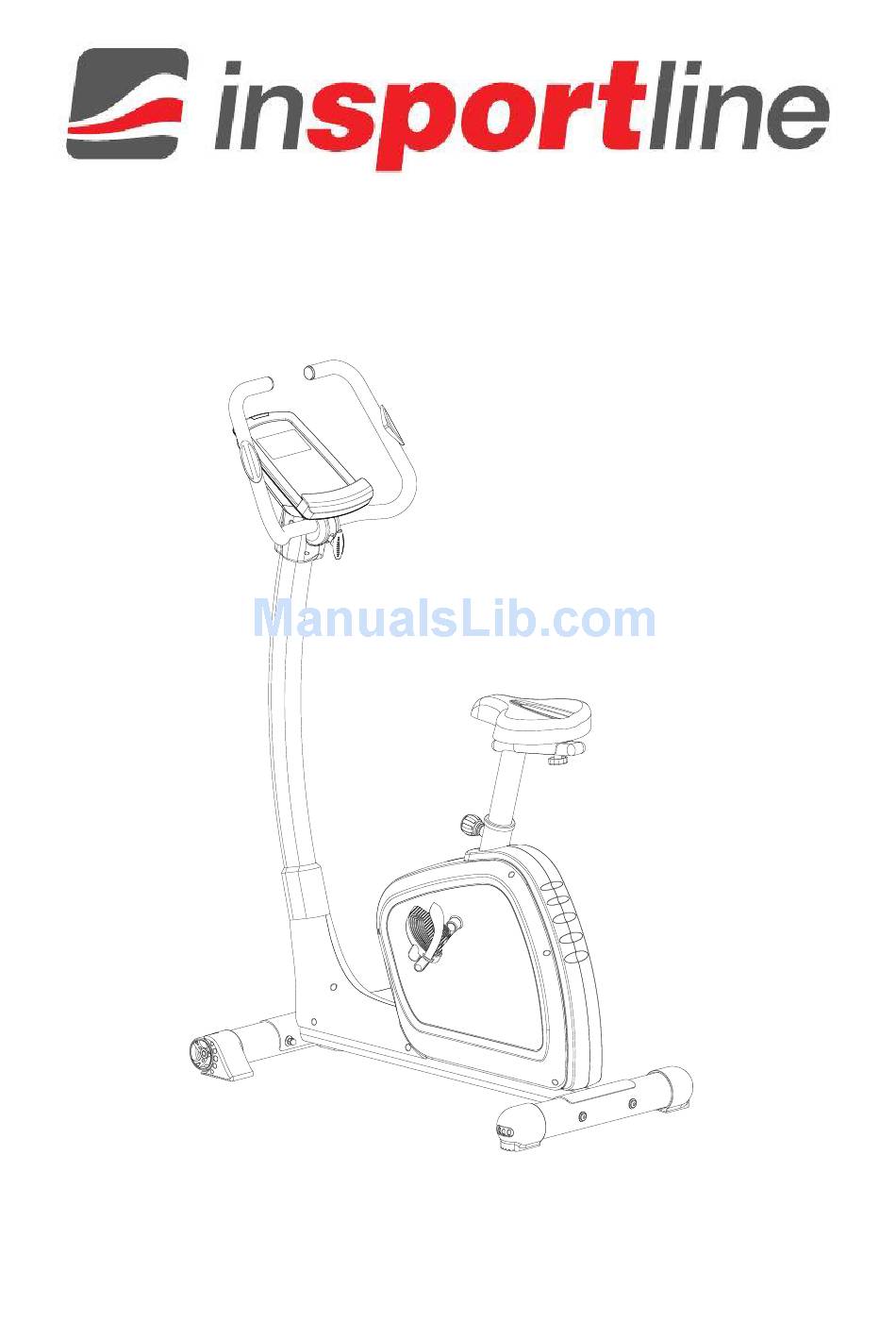

USER MANUAL – EN
IN 8719 Exercise Bike inSPORTline UB60i
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the inSPORTline UB60i and is the answer not in the manual?

Questions and answers

Related Manuals for Insportline inSPORTline UB60i

Summary of Contents for Insportline inSPORTline UB60i

  • Page 1 USER MANUAL – EN IN 8719 Exercise Bike inSPORTline UB60i...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS ............................ 3 IMPORTANT NOTES ............................3 EXPLODED DRAWING ............................4 PARTS LIST ................................4 CHECK LIST ................................8 ASSEMBLY INSTRUCTIONS ..........................9 SM2570 iConsole+ INSTRUCTION MANUAL ....................14 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ............18...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS  To ensure the best safety of the exerciser, regularly check it on damages and worn parts.  If you pass on this exerciser to another person or if you allow another person to use it, make sure that that person is familiar with the content and instructions in these instructions.

  • Page 4: Exploded Drawing

     The general rule is that exercisers and training devices are no toys. Therefore, they must only be used by properly informed or instructed persons.  Stop your work-out immediately in case of dizziness, nausea, chest pain or any other physical symptoms.
  • Page 5 Left moveable cap Right moveable cap Domed nutM8*1.25*15L Allen bolt M8*1.25*95L Curved washer D22xD8.5x1.5T Spring washer D15.4xD8.2x2T Front decorative cover (left) Front decorative cover (right) Oval cap Seat post Inner tube Allen bolt M8*1.25*15L Flat washer D16*D8.5*1.2T Handlebar post Club knob Flat washer D25xD8.5x2T Knob Bearing #6003ZZ...
  • Page 6 Knob Protective cover Flat washer D16xD8.5x1.2T Spring washer D15.4xD8.2x2T Bushing Left chain cover Right chain cover Left crank Right crank Bolt M8x1.25x25 Screw cover D23x6.5 Left pedal set Right pedal set Anti-loosen net 3/8"-26UNF*6.5T Nut D9.5x8T(3/8"-26UNFx4T) Flywheel Screw ST4.2x1.4x20L C-clip S-10(1T) Flywheel axle Screw ST4.2*1.4*15L Upper computer cable...
  • Page 7 Flat washer D30*D8.5*2.0T Plastic cover Spring D2.2*D14*65L Fixing plate for idle wheel Plastic flat washer Nut M8*1.25*6T Nylon nut M8*1.25*8T Bolt M6*65L Spring D1.0*55L Nut M6*1*6T Fixing plate for magnet Nylon washer D6*D19*1.5T Flat washerD13*D6.5*1.0T Nylon nut M6*1*6T Bolt M8*52L Fixing ring Oval cover Bolt M5x0.8x10L...

  • Page 8: Check List

    CHECK LIST 51L & 51R 40L & 40R...

  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1 (x4) M8*95L (x8) D22*8.5*1.5T (x4) D15.4*D8.2*2T (x4) M8*15L Step-1 Fix the front stabilizer (4) and rear stabilizer (2) onto the main frame (1) by using domed nut (6), allen bolt (7), curved washer (8) and spring washer (9).
  • Page 10 STEP 2 (x1) D25*2T D60*32L Step-2 1) Assemble the seat (69) onto the seat post (13) by club knob (18) and flat washer (19). You can adjust the seat BACKWARD and FRONTWARD. See figure b. 2) Insert the seat post (13) into the main frame. You can adjust the seat UP and DOWN by knob (20). See figure a.
  • Page 11 STEP 3 (x6) M8*15L (x2) D22*8.5*1.5T (x4) D16*8.5*1.2T Step-3 1) Lift up the oval cover (98) onto the handlebar post (17) as figure a shown. 2) Connect upper computer cable (64) and lower computer cable (65) as figure b shown and then assemble handlebar post (17) with main frame by allen bolt (15), flat washer (16) and curved washer (8).
  • Page 12 STEP 4 (x4) M5*10 Step-4 1) Take the handle pulse cable (34) out of handlebar post through the holes in handlebar post as arrows as figure a shown. 2) Connect handle pulse cable (34) and upper computer cable (64) with the cables attached to computer (76).
  • Page 13 STEP 5 (x4) ST4*1.5L (x2) M5*12L     Step-5 1) Assemble the computer bracket (left & right) (40L&R) by screw (38) and bolt (39). 2) Assemble the pedal (51L&R) with crank (48L&R). 3) Plug the adaptor (66) and turn on the computer.

  • Page 14: Display Functions

    SM2570 iConsole+ INSTRUCTION MANUAL SUPPORT DEVICES Support iOS devices: Support Android devices: iPod touch (5th generation) Android tablet OS 4.0 or above iPod touch (4th generation) Android tablet resolution 1280X800 pixels iPod touch (3rd generation) Android phone OS 2.2 or above iPhone 5S Android phone resolution: iPhone 5C...
  • Page 15 Range 0.0 ~ 99.9 CALORIES Burned calories during workout display. Range 0 ~ 999 PULSE Pulse bpm displayed during exercise. Pulse alarm when over preset target pulse. Rotation per minute Range 0 ~ 999 WATT Workout power consumption In Watt Program mode, computer will remain preset watt value (setting range 0~350) MANUAL Manual mode workout.
  • Page 16 Press UP and Down to select workout Manual  Beginner  Advance  Sporty  Cardio  Watt MANUAL MODE Press START in main menu may start workout in manual mode. 1) Press UP or DOWN to select workout program, choose Manual and press Mode to enter. 2) Press UP or DOWN to preset TIME, DISTANCE, CALORIES, PULSE and press MODE to confirm.
  • Page 17 1) Press UP or DOWN to select workout program, choose Sporty mode and press Mode to enter. 2) Press UP or DOWN to preset TIME. 3) Press START/STOP key to start workout. Press UP or DOWN to adjust load level. 4) Press START/STOP key to pause workout.

  • Page 18: Terms And Conditions Of Warranty, Warranty Claims

    NOTE: 1. Once console is connect to tablet via Bluetooth, the console will power off. 2. Please exit iConsole app and turn off the Bluetooth from iPad, then the console will power on again. TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim Procedure.
  • Page 19 documents without the serial number. If the Buyer does not prove the validity of the Warranty Claim by these documents, the Seller has the right to reject the Warranty Claim. If the Buyer gives notice of a defect that is not covered by the Warranty (e.g. in the case that the Warranty Conditions were not fulfilled or in the case of reporting the defect by mistake etc.), the Seller is eligible to require a compensation for all the costs arising from the repair.
