USER MANUAL – EN

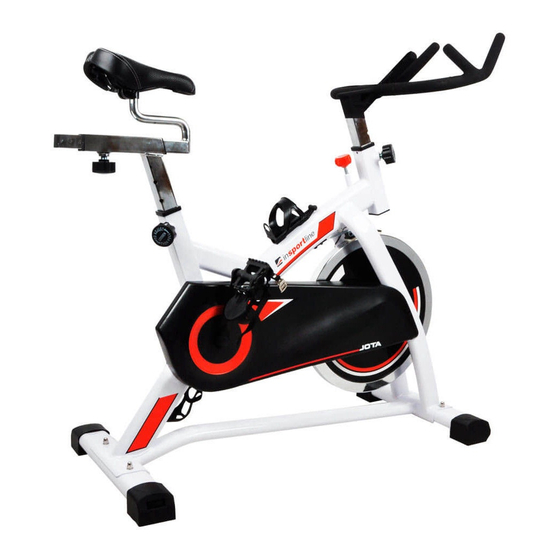

IN 4422 Spinning Bike inSPORTline Jota
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Jota 4422 and is the answer not in the manual?

Questions and answers

Related Manuals for Insportline Jota 4422

Summary of Contents for Insportline Jota 4422

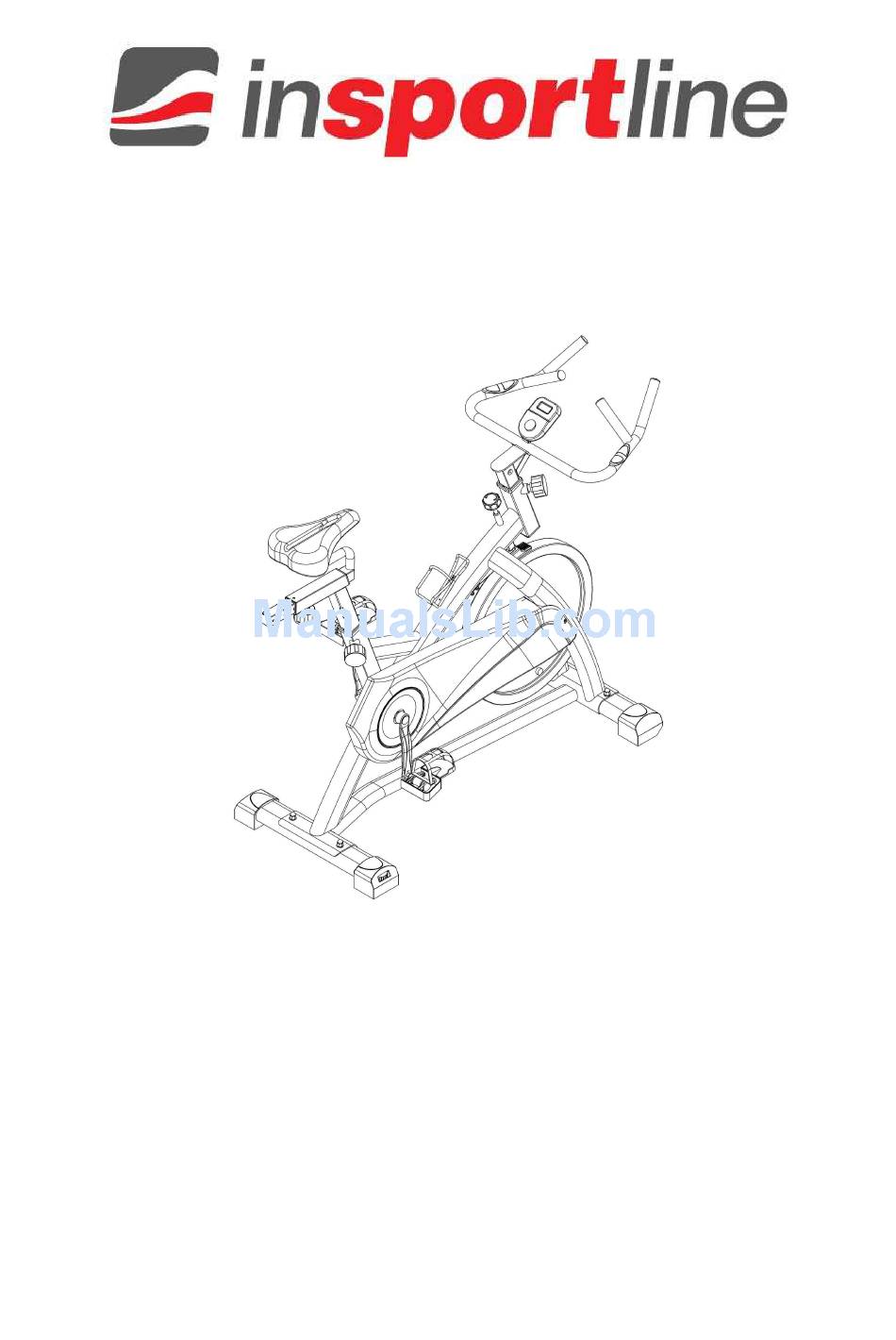

  • Page 1 USER MANUAL – EN IN 4422 Spinning Bike inSPORTline Jota...

  • Page 2: Table Of Contents

    CONTENTS IMPORTANT SAFETY INFORMATION......................3 EXERCISE MONITOR INSTRUCTION MANUAL .................... 4 EXPLODED-VIEW ASSEMBLY DRAWING ..................... 5 PARTS LIST ................................6 ASSEMBLY INSTRUCTIONS ..........................8 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ............10...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION Please keep this manual in a safe place for reference. 1. It is important to read this entire manual before assembling and using the equipment. Safe and efficient use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.

  • Page 4: Exercise Monitor Instruction Manual

    EXERCISE MONITOR INSTRUCTION MANUAL SPECIFICATIONS TIME 00:00-99:59 SPEED (SPD) 0-99.9KM/H(ML/H) DISTANCE (DIST) 0-999.9KM(ML) CALORIE (CAL) 0-9999KCAL ODOMETER (ODO) 0-999.9KM(ML) PULSE (PUL) 40-240BPM KEY FUNCTIONS MODE (SELECT/RESET): This key lets you to select and lock on to a particular function you want. OPERATION PROCEDURES 1.

  • Page 5: Exploded-View Assembly Drawing

    EXPLODED-VIEW ASSEMBLY DRAWING...

  • Page 6: Parts List

    PARTS LIST NAME SPECIFICATION QUANTITY Handle bar Adjusting knob Bottle Bracket Black Washer φ4 Screw M4*15 Washer Φ4 Domed nut Latex Washer Black Brake Bracket Steel Brake Seat Bolt M8*50 Inertia Wheel Φ450*13KG Small Sprocket wheel Bearing Washer Φ10 (Plastic) Sheath φ14*φ10.5*25 Spacing tube...
  • Page 7 Rear stabilizer Circlip Bush 38*38 Vertical seat post Tube Plug 38*38 Horizontal seat post Saddle Tension Control Pole Brake Top Round spacer Spring Bushing 45*45 Main frame Pulse sensor M6*20 Bearing 6004Z Square spacer Flywheel Axle Bolt M5*30 Washer Φ5 Flywheel cover Wire protecting plug Φ6...

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1 Attach the Rear Stabilizer (pt.36) to the Main Frame (pt.48) using two sets of Domed Nuts (pt. 24), Washers (pt.23 ) and Carriage Bolt(pt.26 ) (M8*55). STEP 2 Attach the Front Stabilizer (pt.22) to the Main Frame (pt.48) using two sets of Domed Nuts (pt. 24), Washers (pt. 23) and Carriage Bolt (pt.
  • Page 9 STEP 4 Slacken the Adjusting Knob (pt.2) and pull back both knobs and locate the handlebar post (pt.1) in the housing on the main frame (pt.48). Align the correct holes at the desired height until the “stop” mark and then tighten the Adjusting Knob (pt.2).

  • Page 10: Terms And Conditions Of Warranty, Warranty Claims

    TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim Procedure. Conditions of Warranty and Warranty Claims are governed by Act No. 40/1964 Coll. Civil Code, Act No. 513/1991 Coll., Commercial Code, and Act No.
  • Page 11 +420 556 770 190, Mobile: +420 604 853 019, servis@insportline.cz Fax: +420 556 770 192, (Service +420 556 770 191) Web: www.insportline.cz, www.worker.cz, www.worker-moto.cz INSPORTLINE, s.r.o. Bratislavska 36, 911 05 Trencin, Slovakia CRN: 36311723, VAT ID: SK2020177082 Orders: +421(0)326 526 701, +421(0)917 649 192, objednavky@insportline.sk...
