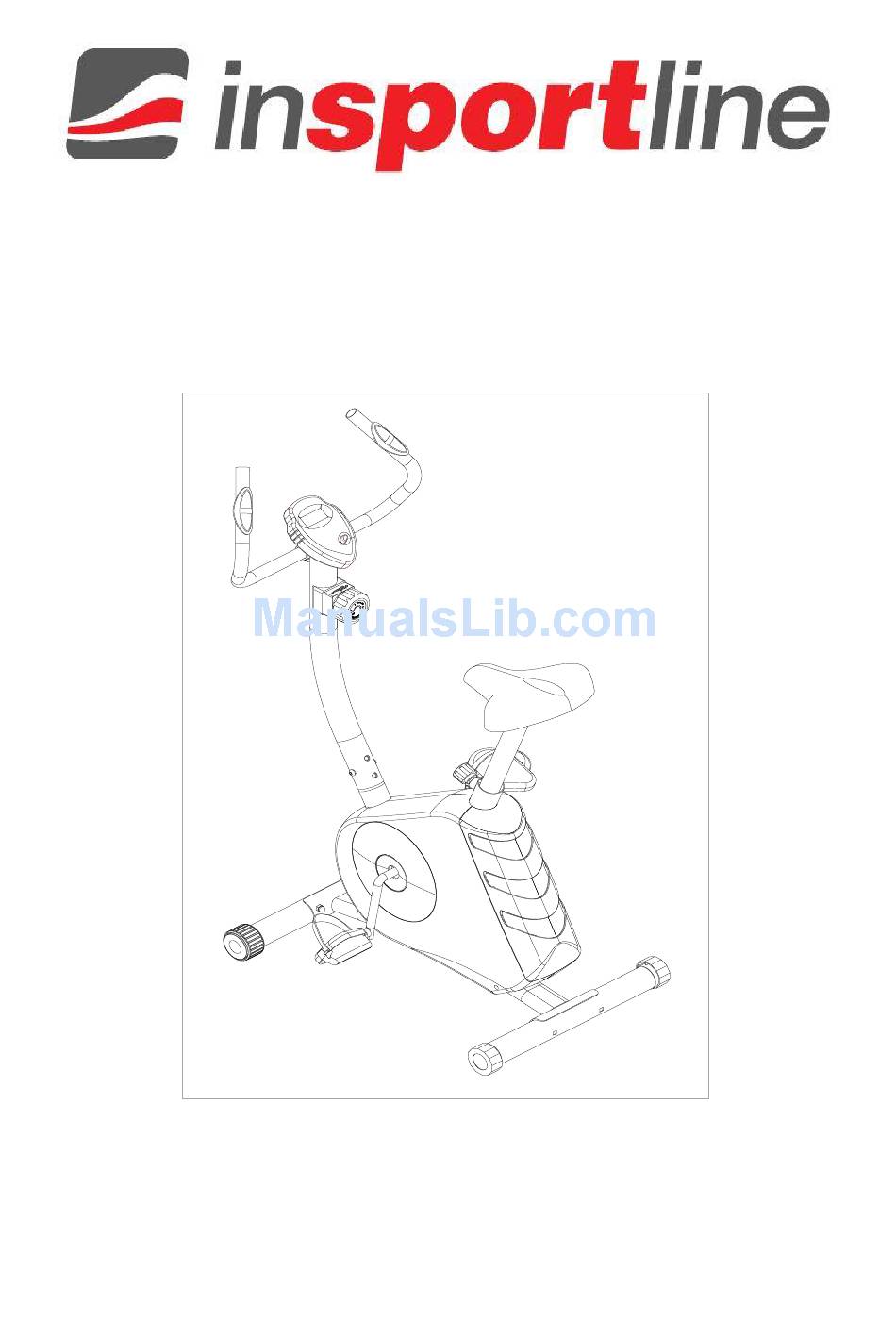

USER MANUAL - EN
IN 7559 Magnetic Upright Bike inSPORTline Kalistic
(YK-BA433B)
IMPORTANT!
PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE BIKE

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kalistic YK-BA433B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Insportline Kalistic YK-BA433B

Summary of Contents for Insportline Kalistic YK-BA433B

  • Page 1 USER MANUAL - EN IN 7559 Magnetic Upright Bike inSPORTline Kalistic (YK-BA433B) IMPORTANT! PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE BIKE...

  • Page 2: Table Of Contents

    CONTENTS IMPORTANT SAFETY INFORMATION ....................3 EXPLODED VIEW (A) ..........................4 EXPLODED VIEW (B) ..........................5 PARTS LIST ............................6 ASSEMBLY ............................. 9 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ..........13...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To guarantee your safety and health, please use this equipment correctly. Please read the information as below carefully before using this equipment. 1. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.

  • Page 4: Exploded View (A)

    EXPLODED VIEW (A)

  • Page 5: Exploded View (B)

    EXPLODED VIEW (B)

  • Page 6: Parts List

    PARTS LIST Description Computer Computer cable Tension Control Cap 71*58*40 Bolt M5*16 Washer d5*Φ10*1 Tension wire Force tube join Handle pulse Φ25 Washer d6*Φ12*1 Bolt ST4.0*19 Handlebar join Spacer d8 Bolt M8*30*S6 Washer d8*Ф20*2*R30 Bolt M8*16*S6 Tension upside wire Nylon nut M8*H7.5*S13 Washer d8*Ф16*1.5 Main frame join Knob M16*1.5*22*Φ37...
  • Page 7 Trunk wire Sensor Wire Bolt M5*10 End cap Φ25*16 End capΦ12*11*Φ3 39L/R Chain cover Wire Foam gripΦ25*5*470 Inductor Crank cover Rear cover of chain cover Square magnet 40*25*10 Magnet location grid Bolt M6*16 Spacer d6 Washer d6*Φ12*1.2 Washer d12 Tension spring Φ1.5 Magnetic board join Magnetic board axle Bolt ST4.2*19...
  • Page 8 Bolt Belt Crank join Round magnetΦ15*7 Washer Nut1 Rolling ball Nine bowl Nut 2 Washer...

  • Page 9: Assembly

    ASSEMBLY STEP 1: Attach front bottom tube (26), back bottom tube (31) to main frame join (19) with bolt (28), washer (30) and nut (29). Lock pedal (33L/R) to crank of main frame join (19).
  • Page 10 STEP 2: Secure the saddle (25) to the Seat post join (22) with the washer (18) and nylon nut (17) Insert the Seat post join (22) to the main frame (19), then tighten it after adjusting it to the suitable position.
  • Page 11 STEP 3: Connect sensor wire (35) with Trunk wire (34b). Connect tension wire (16) with tension wire (6). Lock force tube join (7) to main frame join (19) with bolt (15) and washer (14).
  • Page 12 STEP 4: Fit handlebar join (11) into the cap of main frame tube join, lock with bolt (13) and spacer (12). Lock cap (3) into handlebar.

  • Page 13: Terms And Conditions Of Warranty, Warranty Claims

    STEP 5: Connect computer wire (1a) with inductor wire (34a). Lock computer (1) into computer board of force tube join (7) with bolt (36), insert wire (40) into the hold of computer’s back. Installation is completed. TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim Procedure.
  • Page 14 According to valid legal regulations it depends whether the Buyer is the End Customer or not. “The Buyer who is the End Customer” or simply the “End Customer” is the legal entity that does not conclude and execute the Contract in order to run or promote his own trade or business activities. “The Buyer who is not the End Customer”...
  • Page 15 The Seller shall settle the Warranty Claim within 30 days after the delivery of the defective Goods, unless a longer period has been agreed upon. The day when the repaired or exchanged Goods is handed over to the Buyer is considered to be the day of the Warranty Claim settlement. When the Seller is not able to settle the Warranty Claim within the agreed period due to the specific nature of the Goods defect, he and the Buyer shall make an agreement about an alternative solution.
