SIIG SC-SAE012-S2 Quick Installation Manual

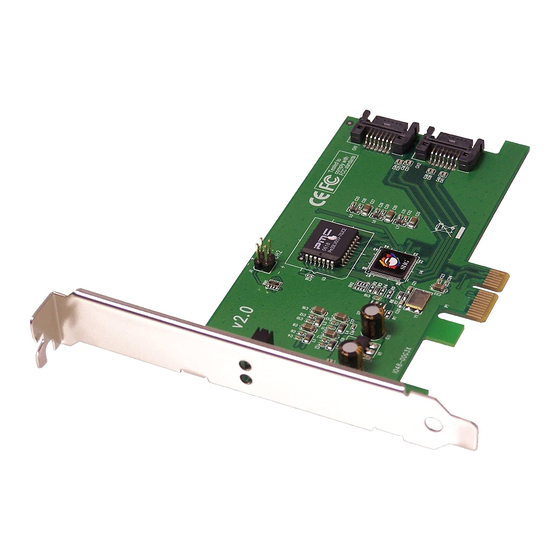

Introducing the SATA II PCIe
The SATA II PCIe is an ultra high-speed dual channel
Serial ATA Generation 2 controller for use in PCI Express-
enabled system.
Features and Benefits
• Compliant with PCI Express Base Specification 1.0a
• Compliant with Serial 1.0a specification with support
for full complement of SATA II optional features
• PCI Express 1-lane (x1) SATA II adapter works with
PCI Express slots with different lane width
• Installs in any available PCI Express slot and support
data transfer rates up to 3.0Gbps (300MBps)
• Spare enhanced low profile bracket is included to
work in low profile chassis
• Supports Native Command Queuing (NCQ), Non-
zero offsets NCQ, and Out-of-order date delivery
NCQ
• Independent command fetch, scatter/gather, and
command execution
• Supports hard disk hot-plugging
System Requirements
• PCI Express-enabled system with an available PCI
Express slot
• Windows
(32-/64-bit)/Vista (32-/64-bit)
04-0386C
SATA II PCIe

Quick Installation Guide

®
2000/XP (32-/64-bit)/Server 2003
1
