I
ntroduction

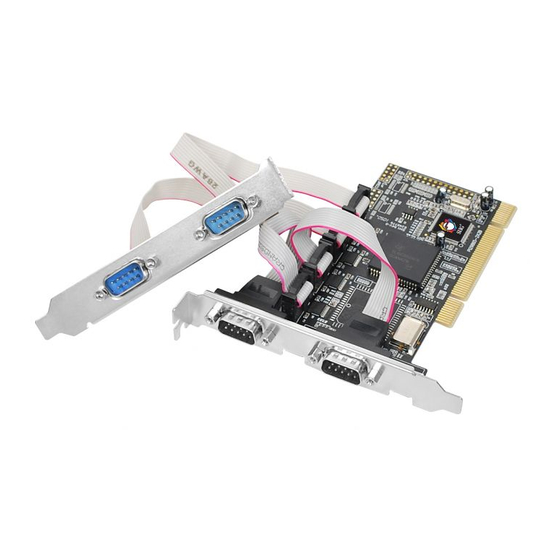

The 4-Port RS232 Serial PCI with 16550 UART is
a high-speed serial card that provides four
additional serial ports to your system.
Key Features and Benefits
•
Compliant with PCI Local Bus Specification,
Revision 2.3
•
Supports data transfer rate up to 230Kb/s
•
Supports up to 256-byte FIFO buffer
System Requirements
Pentium
•
available 32-/64-bit PCI or PCI-X slot
•
Windows
bit) / XP (32-/64-bit) / Server 2003 & 2008
(32-/64-bit) / Server 2008 R2 / 2000 / ME
/ 98SE / 98 / DOS
04-0722A
4-Port RS232 Serial PCI
with 16550 UART
Quick Installation Guide
®
or equivalent computer with an
®
7 (32-/64-bit) / Vista (32-/64-
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIIG 4-Port RS232 Serial PCI with 16550 UART
Summary of Contents for SIIG 4-Port RS232 Serial PCI with 16550 UART
-
Page 1: Quick Installation Guide
4-Port RS232 Serial PCI with 16550 UART Quick Installation Guide ntroduction The 4-Port RS232 Serial PCI with 16550 UART is a high-speed serial card that provides four additional serial ports to your system. Key Features and Benefits • Compliant with PCI Local Bus Specification, Revision 2.3 •... -
Page 2: Package Contents
Package Contents • 4-Port RS232 Serial PCI with 16550 UART • Slot bracket with 2 DB9 (9-pin) serial ports • Driver CD • Quick installation guide Layout Serial port 3 Serial port 4 (COMD) (COMC) Stripe Stripe Serial port 2 (COMB) Serial port 1 (COMA) Connector bracket... -
Page 3: Hardware Installation
Hardware Installation General instructions for installing the card are provided below. Since the design of computer cases and motherboards vary, refer to your computer’s reference manual for further information, if needed. Static Electricity Discharge may permanently damage your system. Discharge any static electricity build up in your body by touching your computer’s case for a few seconds. -
Page 4: Driver Installation
serial ports. To install the card, carefully align the card's bus connector with the selected PCI slot on the motherboard. Push the board down firmly, but gently, until it is well seated. Replace the slot bracket's holding screw to secure the card. Mount the second serial port and secure it with the slot bracket holding screw. - Page 5 Right click Computer, click Manage, click Device Manager. Insert the driver CD. Starting from top, right click PCI Serial Port, click Update Driver Software. Close the AutoPlay box if displayed. Click Browse my computer for driver software. For 32-bit: Type in D:\32-bit, then click Next.
- Page 6 At the Found New Hardware window, click Locate and install driver software (recommended), then click Continue. Click I don't have the disk. Show me other options. Insert the driver CD. Click Browse my computer for driver software. For 32-bit: Type in D:\32-bit, then click Next.
- Page 7 Select Install from a list or specific location, then click Next. Insert the driver CD. Select Include this location in the search, uncheck the other box. For 32-bit: Type in D:\32-bit, then click Next. (Change D: to match your CD/DVD- ROM drive letter) For 64-bit: Type in D:\64-bit, then click Next.
- Page 8 Click Browse my computer for driver software (advanced). For 32-bit: Type in D:\32-bit, then click Next. (Change D: to match your CD/DVD- ROM drive letter) For 64-bit: Type in D:\64-bit, then click Next. (Change D: to match your CD/DVD- ROM drive letter) Click Close.
- Page 9 Click Browse my computer for driver software. Type in D:\64-bit, then click Next. (Change D: to match your CD/DVD-ROM drive letter) At Windows has successfully updated your driver software, click Close. Repeat steps 3-5. Right click PCI Simple Communications Controller, click Update Driver Software. Repeat steps 4-5 to complete the installation.
- Page 10 To Verify Windows Installation Check in Device Manager to verify installation. For Windows 7: Right click Computer, click Manage, then click Device Manager. For Windows Vista: Right click Computer, click Manage, click Continue, then click Device Manager. For Windows XP / Server 2003 / 2000: Right click My Computer, click Manage, click Device Manager.
- Page 11 Changing Serial Port Number Some serial port devices need a specific communication port in order to function properly. If your communication port device works, do not make any changes. Right click My Computer, click Manage, then click Device Manager. Click on the + (plus sign) in front of Ports (COM &...
- Page 12 Check Specify a location, uncheck the other box, insert the driver CD, type in D:\ME, then click Next. (Change D: to match your CD/DVD-ROM drive letter) Click Next, then Finish. Type in D:\ME, then click OK to complete the installation. (Change D: to match your CD/DVD-ROM drive letter) Windows 98 / 98SE At the Add New Hardware Wizard, click...
- Page 13 To Verify Windows ME / 98SE / 98 / Installation Right click My Computer, click Properties, click Device Manager. Click on the + (plus sign) in front of Ports (COM & LPT), and a M65-PCI Serial Port ... should be displayed four times. Double click M65Multifunction, M65-PCI Multi-I/O Controller should be displayed.
- Page 14 Blank Page...
-
Page 15: Technical Support And Warranty
Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued. - Page 16 Fremont, CA 94538-3152, USA Phone: 510-657-8688 4-Port RS232 Serial PCI with 16550 UART is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
