eSATA II-150 PCI
Quick Installation Guide

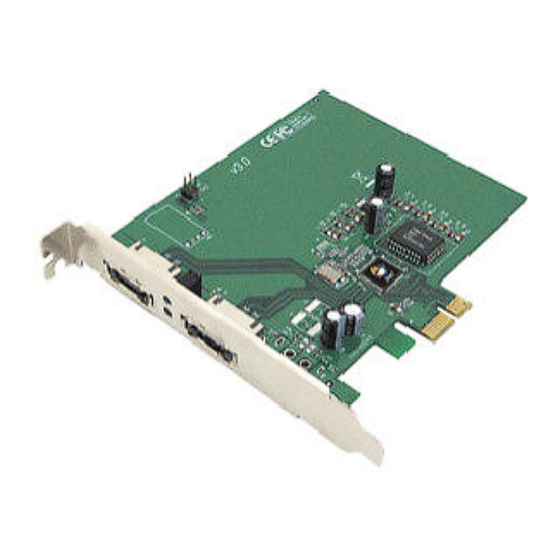

Introducing the eSATA II-150 PCI
The eSATA II-150 PCI is an ultra high-speed dual channel
Serial ATA Generation 2 controller for use in PCI enabled
systems.
Features and Benefits
•
Adds two external (eSATA) ports to your desktop
computer for external drive connections
•
New Serial ATA cable – easier to install & provides
better air circulation
•
Supports two SATA channels and data transfer rate
up to 1.5Gb/s (150MB/s)
•
Supports Native Command Queuing (NCQ) and
SATA TCQ commands
•
Onboard bus master engine relieves the system
processor from book keeping and enhances
performance
•
Features independent 256-byte FIFOs per channel
for host reads and writes
•·
Breaks the 137GB barrier! Works with various
brands of large capacity Serial ATA hard disks
•
Supports SATA hard disk hot-plugging
•
Compliant with PCI 2.3 and eSATA (external SATA)
connector specifications
•
Compliant with Serial ATA 1.0 specifications and
complement of SATA II optional features
04-0411A
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIIG SC-SA2012-S1
Summary of Contents for SIIG SC-SA2012-S1
- Page 1 eSATA II-150 PCI Quick Installation Guide Introducing the eSATA II-150 PCI The eSATA II-150 PCI is an ultra high-speed dual channel Serial ATA Generation 2 controller for use in PCI enabled systems. Features and Benefits • Adds two external (eSATA) ports to your desktop computer for external drive connections •...
- Page 2 System Requirements • Pentium or equivalent PC with an available PCI slot • Windows 2000/XP/Server 2003 Package Contents • eSATA II-150 PCI • Driver CD • This quick installation guide Layout HDD LED pins (Front chassis LED; connects horizontally) Activity LED External connectors Figure 1.
- Page 3 Turn OFF the power to your computer and any other connected peripheral devices. Unplug the power cord from the back of the computer. Remove your computer’s cover. Remove the slot bracket from an available PCI slot. To install the card, carefully align the card's bus connector with the selected PCI slot on the motherboard.
- Page 4 Restart your system when prompted during Windows' installation. At the Windows 2000 Setup screen, press F6 to install the driver. Insert the driver diskette. Press S, then press Enter. Select INITIO INIC1620 S-ATA Adapter For Windows 2000 and press Enter. Press Enter to continue and follow on-screen instructions to complete the installation.
- Page 5 Restart your system when prompted by Windows' installation. At the Windows Setup screen, press F6 to install the driver. Insert the driver diskette. Press S then press Enter. Select INITIO INIC1620 S-ATA Adapter For Windows XP/2003 and press Enter. Press Enter to continue and follow on-screen instructions to complete the installation.
- Page 6 External Device Connection External Serial ATA devices should come with their own accessories. In most cases, you just need to power up the external device and connect it to the external port. For more information, please refer to the external device's manual.
- Page 7 A lifetime manufacturer warranty supplied with this product is offered by SIIG, Inc. Please see SIIG website for more warranty details. If you should happen to encounter any problems with this product, please follow the procedures below.
- Page 8 Fremont, CA 94538-3152 eSATA II-150 PCI is a trademark of SIIG, Inc. SIIG and SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. Other names used in publication are for identification only and may be trademarks of their respective companies.
