SIIG RS232 Serial Installation Manual

2-port rs232 serial pci with 16950 uart
Hide thumbs Also See for RS232 Serial:
Table of Contents

Advertisement

Quick Links

Download this manual
Introduction

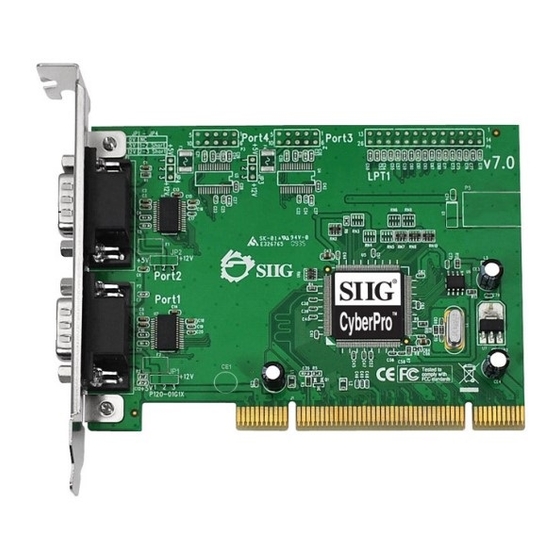

The 2-Port RS232 Serial PCI with 16950 UART
high-speed serial card provides two RS-232 9-pin
serial ports.
Key Features and Benefits
•
Universal PCI card design that works in
32-/64-bit 3.3V/5V PCI and PCI-X slots
•
Provides 2 RS-232 serial ports
•
Supports data transfer rate up to 921Kb/s
System Requirements
•
Pentium or equivalent computer with an
available PCI slot
•
Windows
Vista (32-/64-bit) / XP (32-/64-bit) / Server
2003 & 2008 (32-/64-bit) / Server 2008 R2
/ 2000 / ME / 98SE / 98 / 95
04-0715C
2-Port RS232 Serial
PCI with 16950 UART

Installation Guide

8 (32-/64-bit) / 7 (32-/64-bit) /
®
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS232 Serial and is the answer not in the manual?

Questions and answers

Related Manuals for SIIG RS232 Serial

Summary of Contents for SIIG RS232 Serial

  • Page 1: Installation Guide

    2-Port RS232 Serial PCI with 16950 UART Installation Guide Introduction The 2-Port RS232 Serial PCI with 16950 UART high-speed serial card provides two RS-232 9-pin serial ports. Key Features and Benefits • Universal PCI card design that works in 32-/64-bit 3.3V/5V PCI and PCI-X slots •...

  • Page 2: Package Contents

    Package Contents • 2-Port RS232 Serial PCI with 16950 UART • Driver CD • Installation guide Layout Serial Port 2 Serial Port 1 Figure 1: Board Layout...

  • Page 3: Hardware Installation

    Hardware Installation General instructions for installing the card are provided below. Since the design of computer cases and motherboards vary, refer to your computer’s reference manual for further information, if needed. Static Electricity Discharge may permanently damage your system. Discharge any static electricity build up in your body by touching your computer’s case for a few seconds.

  • Page 4: Driver Installation

    Replace the slot bracket holding screw to secure the card. Replace the computer cover and reconnect the power cord. Driver Installation Please make sure the board is installed before proceeding with driver installation. Windows 8 (32-/64-bit) / 7 (32-/64-bit) / Server 2008 R2 Install the board and boot up Windows.
  • Page 5 At Windows has successfully updated your driver software, click Close. Go back to Device Manager, right click the first listed PCI Serial Port, click Update Driver Software. Repeat steps 5-7. NOTE: Windows 7 with internet connection enabled, will search for Microsoft Update's driver database and complete driver installation automatically.
  • Page 6 Windows Vista (32-/64-bit) / Server 2008 (32-/64-bit) Install the board and boot up Windows. At the Found New Hardware window, click Locate and install driver software (recommended), click Continue. For Server 2008, skip this step. Insert the driver CD. Close the CD autoplay window if prompted.
  • Page 7 Windows XP (32-/64-bit) / Server 2003 (32-/64-bit) Install the board and boot up Windows. Insert the driver CD. Close the CD autoplay window if prompted. Select No, not this time, click Next. (Skip this step if not prompted) Select Install the software automatically (Recommended), then click Next.
  • Page 8 Select Search for a suitable driver for my device (recommended), and click Next. Select Specify a location, uncheck the other boxes, and click Next. Type in D:, then click OK. (Change D: to match your CD/DVD-ROM drive letter) Click Next, then click Finish. Repeat steps 3-7 two times.
  • Page 9 Computer, click Manage, double click Diagnostics, click Device Manager. Double click Ports (COM & LPT), CyberSerial 16C550... should be displayed. Double click Multifunction adapters, SIIG CyberPro 2S board should be displayed. Windows ME At the Add New Hardware Wizard, choose Specify the location of the driver (Advanced), click Next.
  • Page 10 Windows 98SE / 98 At the Add New Hardware Wizard, click Next. Select Search for the best driver for your device (Recommended), then click Next. Select Specify a location, uncheck the other boxes, insert the driver CD, type in D:\9x, then click Next.
  • Page 11 Manager. Double click Ports (COM & LPT), CyberSerial PCI 16Cxxx... should be displayed two times. Double click Multi-function adapters, SIIG CyberPro 2S PCI board and PCI Function should be displayed. Changing COM Port Address Some serial devices need a specific COM port in order to work.
  • Page 12 Windows 8 / 7 / Vista / XP / Server 2003 & 2008 / Server 2008 R2 / 2000 From the Device Manager window double click Ports (COM & LPT), then double click CyberSerial... port you want to change. Click Settings tab and click Advanced. Click the down arrow next to the COM Port number box, select a COM port that is not in use.
  • Page 13 Blank Page...
  • Page 14 Blank Page...

  • Page 15: Technical Support And Warranty

    Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued.
  • Page 16 Fremont, CA 94538-3152, USA Phone: 510-657-8688 2-Port RS232 Serial PCI with 16950 UART is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective owners.
