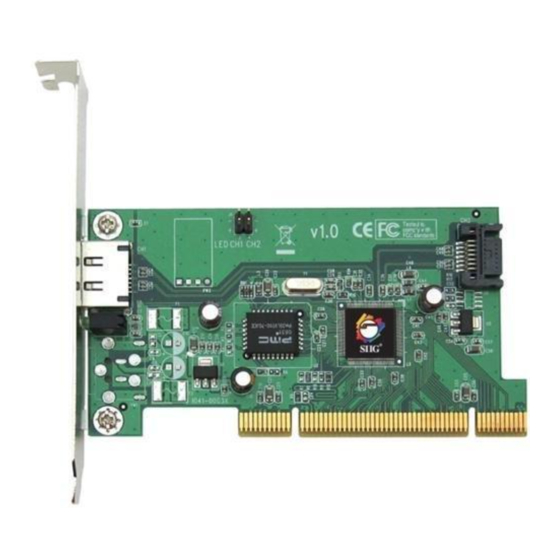

Introducing the eSATA II-150 PCI i/e
The eSATA II-150 PCI i/e is an ultra high-speed dual
channel Serial ATA Generation 2 controller for use in PCI
enabled systems.
Features and Benefits
Adds one internal & one external (eSATA) ports to
your desktop computer
New Serial ATA cable – easier to install & provides
better air circulation
Supports two SATA channels and data transfer rate
up to 1.5Gb/s (150MB/s)
Supports Native Command Queuing (NCQ) and
SATA TCQ commands
Onboard bus master engine relieves the system
processor from book keeping and enhances
performance
Features independent 256-byte FIFOs per channel
for host reads and writes
Breaks the 137GB barrier! Works with various
brands of large capacity Serial ATA hard disks
Supports SATA hard disk hot-plugging
Compliant with PCI 2.3 and eSATA (external SATA)
connector specifications
Compliant with Serial ATA 1.0 specifications and
complement of SATA II optional features
04-0410B
eSATA II-150 PCI i/e
Quick Installation Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-SA1012-S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SIIG SC-SA1012-S1

  • Page 1 eSATA II-150 PCI i/e Quick Installation Guide Introducing the eSATA II-150 PCI i/e The eSATA II-150 PCI i/e is an ultra high-speed dual channel Serial ATA Generation 2 controller for use in PCI enabled systems. Features and Benefits • Adds one internal & one external (eSATA) ports to your desktop computer •...
  • Page 2 System Requirements • Pentium or equivalent PC with an available PCI slot • Windows 2000/XP/Server 2003 Package Contents • SATA II-150 PCI i/e and spare low profile bracket • SATA data cable and power cable • Driver CD and this quick installation guide Layout HDD LED pins (Front chassis LED;...
  • Page 3 Turn OFF the power to your computer and any other connected peripheral devices. Unplug the power cord from the back of the computer. Remove your computer’s cover. Remove the slot bracket from an available PCI slot. To install the card, carefully align the card's bus connector with the selected PCI slot on the motherboard.
  • Page 4 Restart your system when prompted during Windows' installation. At the Windows 2000 Setup screen, press F6 to install the driver. Insert the driver diskette. Press S, then press Enter. Select INITIO INIC1620 S-ATA Adapter For Windows 2000 and press Enter. Press Enter to continue and follow on-screen instructions to complete the installation.
  • Page 5 Restart your system when prompted by Windows' installation. At the Windows Setup screen, press F6 to install the driver. Insert the driver diskette. Press S then press Enter. Select INITIO INIC1620 S-ATA Adapter For Windows XP/2003 and press Enter. Press Enter to continue and follow on-screen instructions to complete the installation.
  • Page 6 To Verify Windows 2000/XP/2003 Installation Right click My Computer and click Manage. Select Device Manager. Double click SCSI and RAID Controllers, then double click Initio inic1620 S-ATA Adapter to display driver properties. A message This device is working properly is displayed in the dialog box, the driver has been correctly installed.
  • Page 7 A lifetime manufacturer warranty supplied with this product is offered by SIIG, Inc. Please see SIIG website for more warranty details. If you should happen to encounter any problems with this product, please follow the procedures below.
  • Page 8 Fremont, CA 94538-3152 eSATA II-150 PCI i/e is a trademark of SIIG, Inc. SIIG and SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. Other names used in publication are for identification only and may be trademarks of their respective companies.
