SATA II-150 PCI
Quick Installation Guide

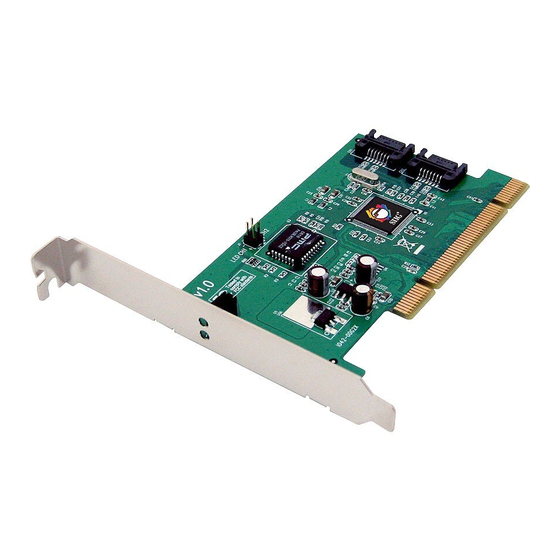

Introducing the SATA II-150 PCI
The SATA II-150 PCI is an ultra high-speed dual channel
Serial ATA Generation 2 controller for use in PCI enabled
systems.
Features and Benefits
•
Add up to two high-speed SATA hard drives
•
New Serial ATA cable – easier to install & provides
better air circulation
•
Supports two SATA channels and data transfer rate
up to 1.5Gb/s (150MB/s)
•
Supports Native Command Queuing (NCQ) and
SATA TCQ commands
•
Onboard bus master engine relieves the system
processor from book keeping and enhances
performance
•
Features independent 256-byte FIFOs per channel
for host reads and writes
•
Breaks the 137GB barrier! Works with various
brands of large capacity Serial ATA hard disks
•
Supports SATA hard disk hot-plugging
•
Compliant with PCI 2.3
•
Compliant with Serial ATA 1.0 specifications and
complement of SATA II optional features
04-0409A
1
Advertisement
Table of Contents
Related Manuals for SIIG SC-SA0012-S1
Summary of Contents for SIIG SC-SA0012-S1
- Page 1 SATA II-150 PCI Quick Installation Guide Introducing the SATA II-150 PCI The SATA II-150 PCI is an ultra high-speed dual channel Serial ATA Generation 2 controller for use in PCI enabled systems. Features and Benefits • Add up to two high-speed SATA hard drives •...
- Page 2 System Requirements • Pentium or equivalent PC with an available PCI slot • Windows 2000/XP/Server 2003 Package Contents • SATA II-150 PCI and spare low profile bracket • SATA data cable and power cable • Driver CD and this quick installation guide Layout HDD LED pins (Front chassis LED;...
- Page 3 Hardware Installation General instructions for installing the card are provided below. Since the design of computer cases and motherboards vary, refer to your computer’s reference manual for further information, if needed. Static Electricity Discharge may permanently damage your system. Discharge any static electricity build up in your body by touching your computer’s case for a few seconds.
- Page 4 Driver Installation This section provides information on how to install the SATA II-150 PCI drivers for the following operating systems. Windows 2000 New Windows 2000 Installation A new installation of Windows 2000 requires a floppy disk for the driver installation. To make this floppy disk, copy the contents of the Floppy folder, found on the driver CD, onto a blank floppy disk then follow the directions below.
- Page 5 Click Yes, then click Finish. Note: Our driver has been thoroughly tested in Windows for stability. Restart Windows to complete the driver installation. Windows XP/Server 2003 New Windows XP/Server 2003 Installation A new installation of Windows XP/Server 2003 requires a floppy disk for the driver installation. To make this floppy disk, copy the contents of the Floppy folder, found on the driver CD, onto a blank floppy disk then follow the directions below.
- Page 6 Insert the driver CD, select Install the software automatically (Recommended), then click Next. Click Continue Anyway, then click Finish. Click Next again to continue. Note: Our driver has been thoroughly tested in Windows for stability. Restart Windows to complete the driver installation. To Verify Windows 2000/XP/2003 Installation Right click My Computer and click Manage.
- Page 7 A lifetime manufacturer warranty supplied with this product is offered by SIIG, Inc. Please see SIIG website for more warranty details. If you should happen to encounter any problems with this product, please follow the procedures below.
- Page 8 Fremont, CA 94538-3152 SATA II-150 PCI is a trademark of SIIG, Inc. SIIG and SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. Other names used in publication are for identification only and may be trademarks of their respective companies.
