Introducing the Hi-Speed USB 4-Port PCIe
The DP Hi-Speed USB 4-Port PCIe adds 4 high-speed USB
2.0 ports to your system.
Features and Benefits
•
Compliant with USB specifications revision 2.0
•
Installs into standard height or low profile system
chassis with the included brackets
•
Supports simultaneous operation of multiple
high-speed USB 2.0 and USB 1.1 devices
•
Supports high-speed (480Mbps), full-speed
(12Mbps), and low-speed (1.5Mbps) data transfer
modes
•
User friendly hot-swapping feature allows you to
attach/remove USB devices without turning off
your system
Note: USB 1.1 devices are limited to USB 1.1 speeds
even when they are connected to USB 2.0 host
adapters or USB 2.0 hubs.
System Requirements
•
PCI Express enabled PC or Mac
available PCIe slot
•
Windows
(32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000
SP4
•
Mac OS
04-0486C
DP Hi-Speed USB 4-Port PCIe
Quick Installation Guide
7 (32-/64-bit) / Vista (32-/64-bit) / XP
®
X v10.4 or later
®
computer with an
®
1
Advertisement
Table of Contents
Related Manuals for SIIG DP Hi-Speed USB 4-Port PCIe
Summary of Contents for SIIG DP Hi-Speed USB 4-Port PCIe
-
Page 1: Quick Installation Guide
DP Hi-Speed USB 4-Port PCIe Quick Installation Guide Introducing the Hi-Speed USB 4-Port PCIe The DP Hi-Speed USB 4-Port PCIe adds 4 high-speed USB 2.0 ports to your system. Features and Benefits • Compliant with USB specifications revision 2.0 •... -
Page 2: Hardware Installation

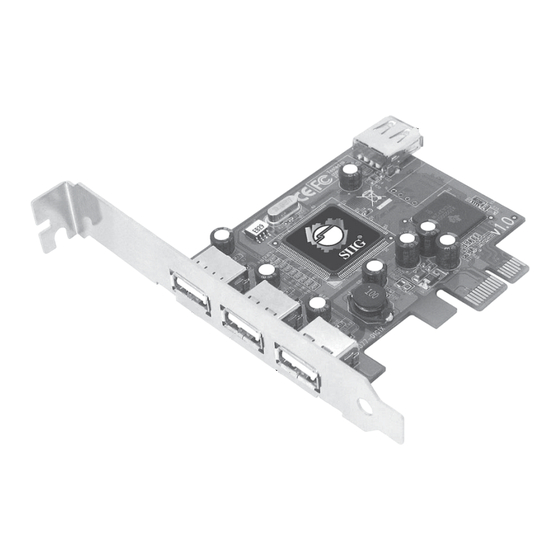

Package Contents • DP Hi-Speed USB 4-Port PCIe • Spare low-profile bracket • Quick installation guide Layout Internal port External ports Figure 1. Board Layout Hardware Installation Note: For low profile systems, remove the currently mounted bracket and install the spare low profile bracket. -
Page 3: Windows Driver Installation
Turn OFF the power to your computer and any other connected peripheral device. Unplug the power cord and remove the computer cover. Remove the slot bracket from an available PCIe slot. Carefully align the card to the selected PCIe slot, push the board down firmly, but gently, until it is well seated. -
Page 4: Mac Os Driver Installation
The drivers show up differently under different versions of Windows. Please refer to the correct Windows version to verify. For Windows 7 / Vista: Under Universal Serial Bus controllers, NEC to PCI Universal Host Controller will be displayed two times and Standard Enhanced PCI to USB Host Controller will be displayed one time. - Page 5 Blank Page...
- Page 6 Blank Page...
-
Page 7: Technical Support And Warranty
Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. If the product is determined to be defective, an RMA number will be issued. Step 2: After obtaining an RMA number, ship the product. - Page 8 Fremont, CA 94538-3152, USA Phone: 510-657-8688 DP Hi-Speed USB 4-Port PCIe is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac and Mac OS are registered trademarks of Apple Inc.
