LT/E01

Accessories

BCSLEBN Spring-loaded belt clip
LTBATELIM Battery eliminator; allows transmitter
to be operated from external power;
6 to 36 VDC
M152/5P Lavaliere microphone; omnidirectional
MI33PRA Instrument cable; passive type for use
with very high output pickups; right
angle 1/4" plug
MI33PST Instrument cable; passive type for us
with very high output pickups; straight
1/4" plug
MI39AST Instrument cable; active type for use
with most instrument pickups; straight
1/4" plug
MC35 Line level adapter cable; XLR-F
to TA5F; 37" length
MC41 Dynamic mic level adapter cable;
XLR-F to TA5F; 37" length
26895 Wire belt clip
MC49 Line level input cable; TA3F to TA5F;
12 in. length
MC47 Line level (-10 dBv) input cable; RCA
male to TA5F; 37 in. length
20

Specifications and Features

Operating Frequencies:
Band A1: 470.100 - 537.575
Band B1: 537.600 - 614.375
Band 606: 606.000 - 631.500
Band C1: 614.400 - 691.175
Frequency Selection Steps: Selectable; 100 kHz or 25 kHz
RF Power output: 50 mW
Pilot tone: 25 to 32 kHz; 3 kHz deviation
(Digital Hybrid mode)
Frequency Stability: ± 0.002%
Deviation: ± 50 kHz max. (Digital Hybrid mode)
Spurious radiation: 60 dB below carrier
Equivalent input noise: –120 dBV (A-weighted)
Input level: Nominal 2 mV to 300 mV, before limiting
Greater than 1V maximum, with limiting.
Input impedance: • Mic: 300 Ohm
• Line: 2k Ohm
Input limiter: DSP controlled, dual envelope "soft" limiter
with greater than 30 dB range
Gain control range: 44 dB; digital control
Modulation indicators: • Dual bicolor LEDs indicate modulation of
-20, -10, 0 and +10 dB referenced to full
modulation
• LCD bar graph
Controls: • Top panel toggle switch; programmable as
power, mute, talkback or none (off) function
• Side panel membrane switches with LCD
interface for power on/off and all setup and
configuration controls
Audio Input Jack: Switchcraft 5-pin locking (TA5F)
Antenna: Galvanized steel, flexible wire
Battery: Two AA; alkaline, lithium, NiMH rechargeable
Battery Life: • Alkaline: 4.5 hours
• Duracell Quantum: 7 hours
• Eneloop 2400 mAH NiMH: 8 hours;
new batteries fully charged
Weight: 5.8 ounces (141 grams), including lithium AA batteries
and wire belt clip
Dimensions: 3.2 x 2.4 x .9 in. (81 x 61 x 20 mm)
Emission Designator: 180KF3E
Audio Performance (Overall System - Digital Hybrid mode)

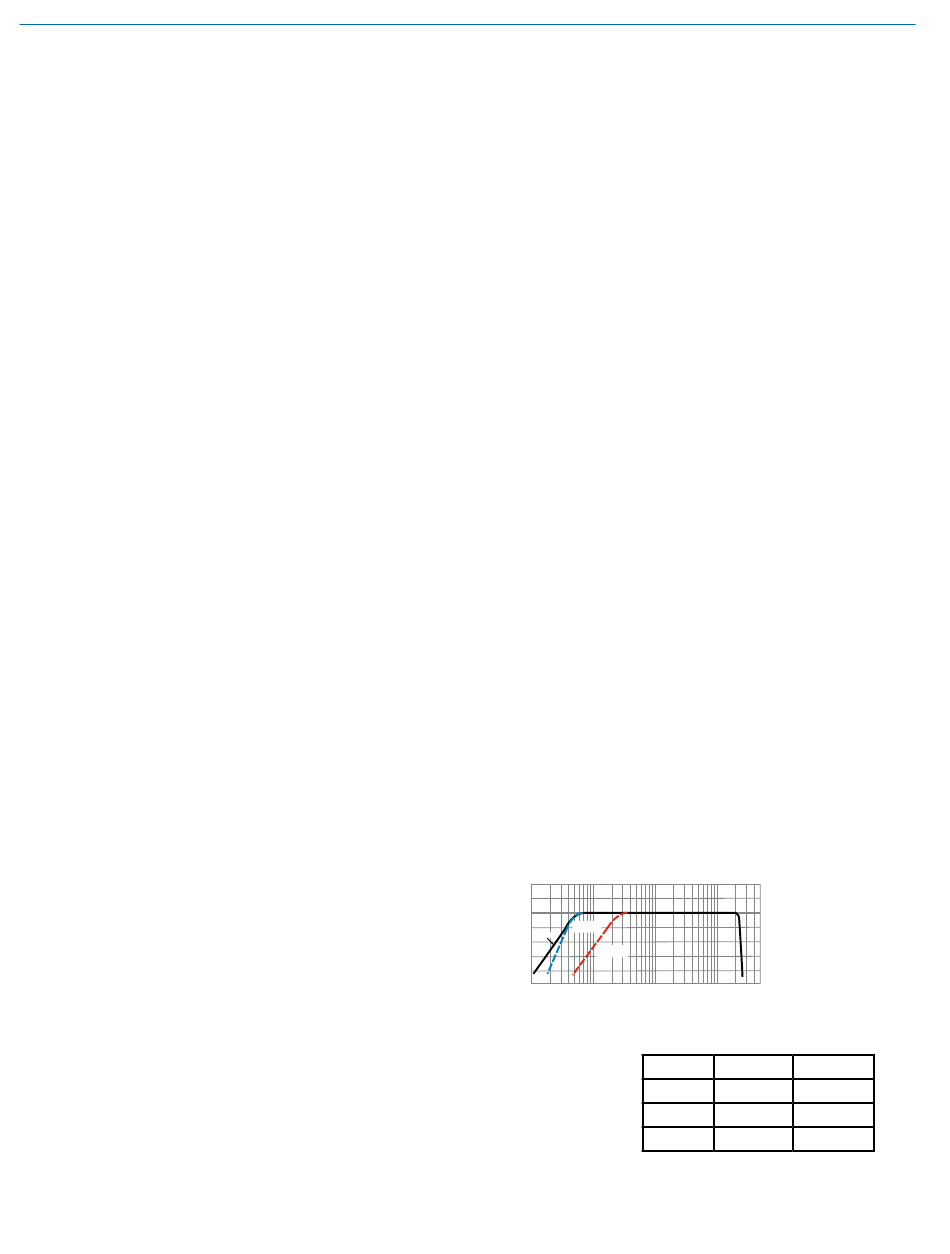

Frequency Response:
Line/Instrument: 35 Hz to 20 kHz (+/-1dB)
Mic input: 35 Hz to 20 kHz (+/-1dB)
Mic input LF roll-off: Selectable knee at 35, 50, 70, 100, 120, 150 Hz
+6
+3
0dB
Mic in 35 Hz
-3
Roll-off
Line in
-6
Mic in 150 Hz
Roll-off
-9
-12
30 100 1kHz
The roll-off slope steepens at lower frequencies.
THD: 0.2% (typical)
SNR at receiver output:
SmartNR
Note: The dual envelope
OFF
"soft" limiter provides
NORMAL
exceptionally good handling
of transients using variable
FULL
attack and release time
constants. Once activated,
the limiter compresses 30+ dB of transmitter input range into 4.5 dB of receiver
output range, thus reducing the measured figure for SNR with no limiting by 4.5 dB
Specifications subject to change without notice
10k 20k
No Limiting w/ Limiting
103.5 108.0
107.0 111.5
108.5 113.0
