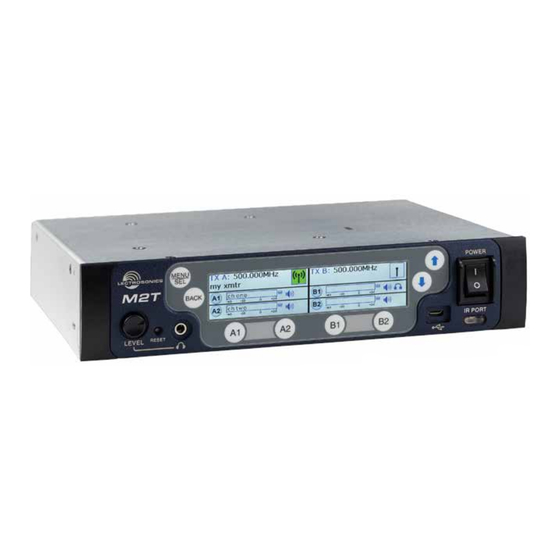

- Page 1 INSTRUCTION MANUAL Digital IEM Transmitter M2T, M2T/E01 Dante M2T, M2T/E01 Non Dante M2T/E01 - B1C1 M2T/E02 M2T/E06 Fill in for your records: Serial Number: Purchase Date: Rio Rancho, NM, USA www.lectrosonics.com...
- Page 2 M2T, M2TND, M2T/E01, M2TND/E01, M2T/E02, M2T/E06 LECTROSONICS, INC.
-
Page 3: Table Of Contents
Digital IEM Transmitter Table of Contents Introduction ................4 What is Dante? ..............4 System Setup Procedures ............ 5 Summary of Steps .............. 5 Panels and Features .............. 6 M2T, M2T/E01, M2T/E02, M2T/E06 Front Panel ....6 M2T, M2T/E01, M2T/E02, M2T/E06 Back Panel ....6 Operating Instructions ............ -
Page 4: Introduction
With Dante, existing infrastructure can be used for high performance audio as well as for ordinary control, moni- toring or business data traffic. Digital networks utilize standard IP over Ethernet offering high bandwidth ca- pable of transporting hundreds of high quality channels LECTROSONICS, INC. -
Page 5: System Setup Procedures
Digital IEM Transmitter System Setup Procedures Summary of Steps 1) Connect power using supplied DCR15/4AU power supply. 2) Power receiver and scan RF spectrum on site. 3) Sync Scan to transfer information from receiver to transmitter. 4) Tune transmitter to unoccupied channels in scan. 5) Sync receiver (refer to receiver manual). -
Page 6: Panels And Features
Headphone Volume Headphone Jack USB Port IR Port Adjustment Channel Function Buttons/ Quick Sync M2T, M2T/E01, M2T/E02, M2T/E06 Back Panel Antenna Antenna Jack Dante Ports (optional) Jack XLR/TRS Combo Analog Ethernet Port Input Connectors Power Inlet LECTROSONICS, INC. -
Page 7: Operating Instructions
When powering on the M2T, M2T/E01, M2T/E02, M2T/ IR (infrared) Port E06, there are three screens that appear in the following order, Duet, Lectrosonics, RF On/Off.: Settings, including frequency, name, limiter, mix mode, etc. can be transferred to and from the M2T, M2T/E01, M2T/E02, M2T/E06 transmitter via this port to an IR en- abled receiver to simplify setup. -
Page 8: Lcd Menu Map
Use arrow keys Press SEL to DEFAULTS DEFAULTS to select yes BACK execute or no ABOUT No selections available; for ABOUT BACK information purposes only LINKS LINKS No selections available; use phone to scan QR code BACK for more information LECTROSONICS, INC. -
Page 9: Menu Item Descriptions
Digital IEM Transmitter Menu Item Descriptions Sync Settings Allows sending or retrieving setup data via IR port. RF Enable/Level Allows RF transmission to be turned on and off and set RF levels at 10, 25 or 50 mW (E06 options are 20, 50 or 100 mW EIRP). -
Page 10: Audio Level/Trim
M2T/E06 transmitters in a rack. The headphone source can be selected here or on the • Use UP and DOWN Arrows to select letters and front panel, using the A1, A2, B1 or B2 Buttons. MENU/SEL to set and move cursor. LECTROSONICS, INC. -
Page 11: Restore Defaults
Displays general information about the M2T, M2T/E01, M2T/E02, M2T/E06, including serial number, and the hardware, FPGA and microcontroller firmware versions. Links QR codes with links to the Lectrosonics website, the M2T, M2T/E01, M2T/E02, M2T/E06 User Manual online and YouTube video tutorials. Rio Rancho, NM... -
Page 12: Accessories
Battery Eliminator for LT, DBu and DCHT transmitters, and M2R; camera hop and similar applications. Optional power cables include: P/N 21746 right angle, locking cable; 12 in. length P/N 21747 right angle, locking cable; 6 ft. length; DCR12/A5U universal power supply for AC power. LECTROSONICS, INC. -
Page 13: Hardware Installation
Digital IEM Transmitter Hardware Installation DCR15/4AU DC power supply 21926 Cable USB 35800 Hex L 25991 Bracket key wrench front tie 25990 Bracket rear tie 27076 Rack flange bracket 27082 Rack handle 35959 Hole Plug (4) 28885 SCR10 cap screw (4) 35664 Rubber foot large (2) A500RA20... -
Page 14: Installing Two M2T, M2T/E01, M2T/E02, M2T/E06 Transmitters Into A Single Rack Space
NOTE: The retaining nuts on the panel and tie brackets are “tensioning lock nut” types designed to prevent the screws from coming loose due to vibration. You will usually feel resistance as you tighten the screws - this is normal. LECTROSONICS, INC. - Page 15 Digital IEM Transmitter Rear tie bracket (Part #25990) Tensioning lock Front tie bracket nuts on the rear (Part #25991) side of the bracket Slide the other transmitter over the tie bracket and 6. Install one side of the front tie bracket (Part insert the screws, but do not tighten them com- #25991) into the side panel opening in one of the pletely until the rear tie bracket is installed.
-
Page 16: Installing One M2T Into A Single Rack
Cover Panel with the protruding nuts facing rear- Cover Panel. ward, affix with two (2) Cap Screws (Part #28885) provided and firmly tighten with the Hex Wrench. See next page. NOTE: Steps 7-11 require parts from the (RMPM2T-1) M2T Single Rack Mount Kit. LECTROSONICS, INC. - Page 17 Digital IEM Transmitter M2T Front View Rack Handle (Part #27082) STEP 10 (front) Hole Plug Front Tie Bracket (not shown; (Part #35959) located behind faceplate) STEP 9 (front) Rack Flange STEPS 6 and 7 Bracket Cap Screw (Part #28885) Cap Screws (Part #28885) (Part # 27076) M2T Rear View Front Tie Bracket...
-
Page 18: Mounting M2T To Dsqd
Hole Plug (Part #35959) into the open antenna hole in the Front Fill Panel (Part #27081) by aligning the flat sides of the plug with those of the bracket hole and pushing into place until flush. LECTROSONICS, INC. - Page 19 Digital IEM Transmitter Mounting M2T To DSQD When mounting two M2Ts or two DSQDs together, the units lie flush together as shown. This is not the case with an M2T and a DSQD, as the DSQD housing is shorter and the spacer tubes are needed. Two M2T units Two DSQD units When attaching an M2T to a DSQD unit, the preferred configuration (when viewing from the back side) is to have the...
-
Page 20: Wireless Designer Software
Requirements: 9-18 VDC Power Consumption: 11 Watts Weight: 2.2 lbs (997.903 grams) Dimensions: Height: 1.750 in. / 44.45 mm Width: 8.375 in. / 212.7 mm Depth: 7.750 in. / 196.8 mm Origin: Designed and manufactured in the USA LECTROSONICS, INC. -
Page 21: Service And Repair
LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a modest flat rate plus parts and shipping. - Page 22 M2T, M2TND, M2T/E01, M2TND/E01, M2T/E02, M2T/E06 LECTROSONICS, INC.
- Page 23 Digital IEM Transmitter ISEDC Notices: Per RSS-210 This device operates on a no-protection no-interference basis. Should the user seek to obtain protection from other radio services operating in the same TV bands, a radio licence is required. Please consult Industry Canada’s document CPC-2-1-28, Optional Licensing for Low-Power Radio Apparatus in the TV Bands, for details.
- Page 24 This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
