Replacement Parts and Accessories

Item
Replacement wire belt clip
Replacment whip antenna

UHF Transmitter Antenna Specifications

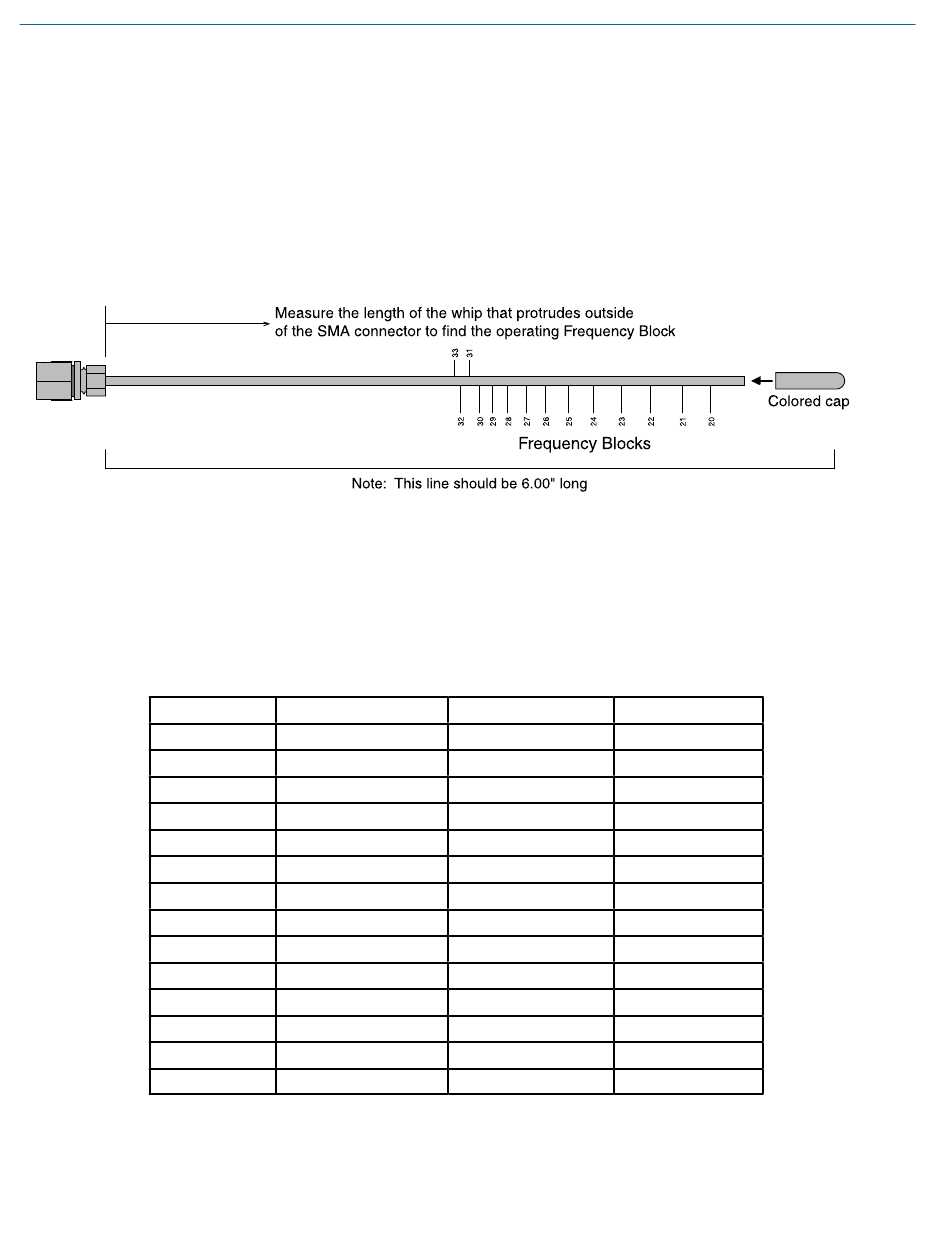

All Lectrosonic UHF transmitter antennas follow the color code specifications in the chart below to identify operating
frequency block range. (The frequency block range is engraved on the ouside housing for each individual transmitter.)
If a situation exists whereby the antenna is defective and the antenna cap is missing, refer to the following chart to
determine the correct replacement antenna.
BLOCK
20
21
22
23
24
25
26
27
28
29
30
31
32
33
944
1
Model/Part Number
Lectrosonics #BCWire
Lectrosonics AMM (xx) - specify frequency block (xx)
FREQUENCY
RANGE
512.000 - 537.500
537.600 - 563.100
563.200 - 588.700
588.800 - 614.300
614.400 - 639.900
640.000 - 665.500
665.600 - 691.100
691.200 - 716.700
716.800 - 742.300
742.400 - 767.900
768.000 - 793.500
793.600 - 819.100
819.200 - 844.700
844.800 - 865.000
944.100 - 951.900
CAP ANTENNA
COLOR WHIP LENGTH
Black 4.98"
Brown 4.74"
Red 4.48"
Orange 4.24"
Yellow 4.01"
Green 3.81"
Blue 3.62"
Violet (Pink) 3.46"
Grey 3.31"
White 3.18"
Black-w/Label 3.08"
Black-w/Label 2.99"
Black-w/Label 2.92"
Black-w/Label 2.87"
Black-w/Label (contact factory)
