UM450

Replacement Parts and Accessories

Item
Replacement wire belt clip
Replacment whip antenna

UHF Transmitter Antenna Specifications

All Lectrosonic UHF transmitter antennas follow the
color code specifications in the chart below to identify
operating frequency block range. (The frequency block
range is engraved on the ouside housing for each
individual transmitter.)
If a situation exists whereby the antenna is defective
and the antenna cap is missing, refer to the following
chart to determine the correct replacement antenna.
FREQUENCY
BLOCK RANGE
20 512.000 - 537.500
21 537.600 - 563.100
22 563.200 - 588.700
23 588.800 - 614.300
24 614.400 - 639.900
25 640.000 - 665.500
26 665.600 - 691.100
27 691.200 - 716.700
28 716.800 - 742.300
29 742.400 - 767.900
30 768.000 - 793.500
31 793.600 - 819.100
32 819.200 - 844.700
33 844.800 - 865.000
NOTE: Blocks 30 through 33 are labeled
with the frequency block number.
16
Model/Part Number
Lectrosonics #BCWire
Lectrosonics AMM (xx) -
specify frequency block
(xx)

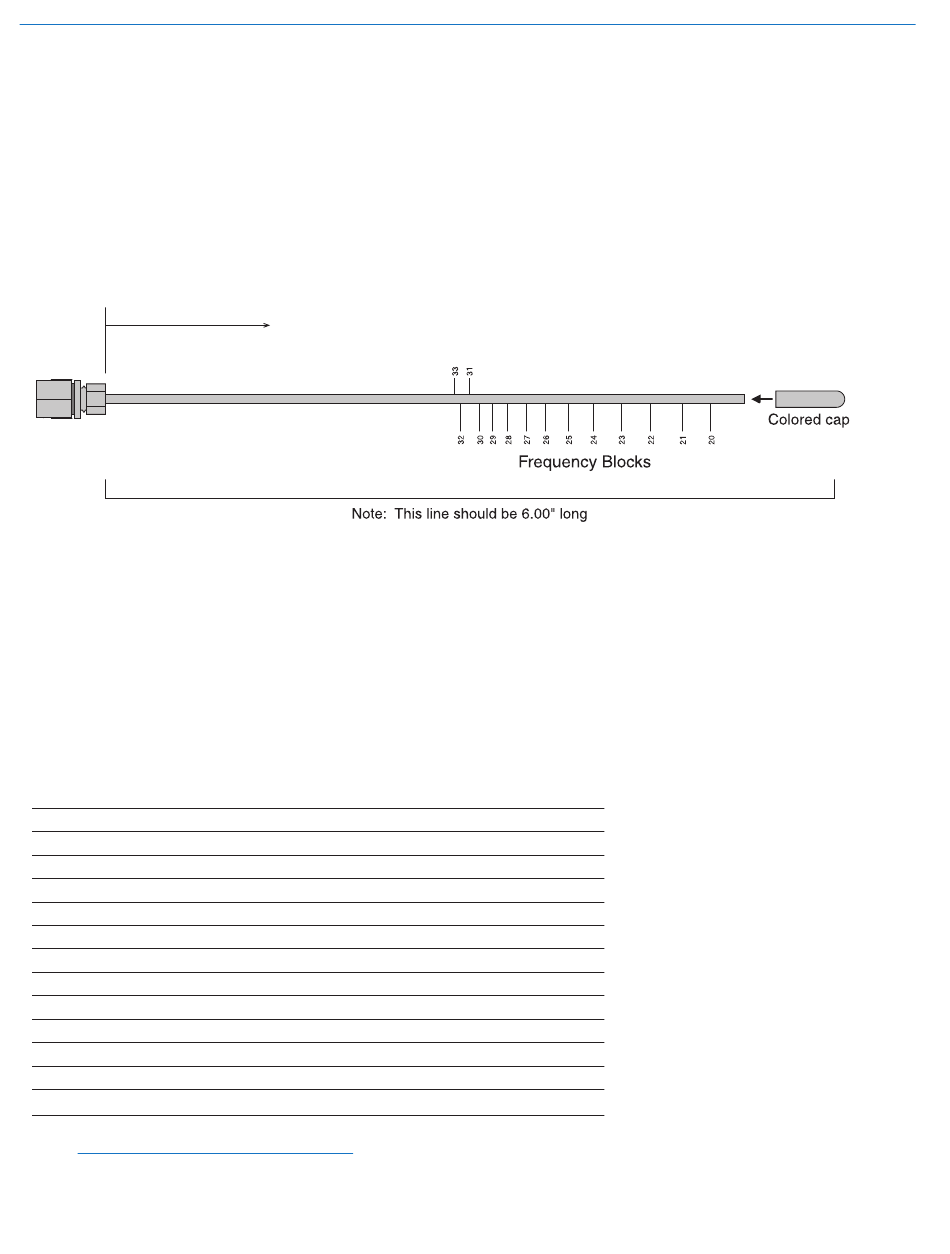

Measure the length of the whip that protrudes outside
of the SMA connector to find the operating Frequency Block
CAP
COLOR
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet (Pink)
Grey
White
Black-w/Label
Black-w/Label
Black-w/Label
Black-w/Label
ANTENNA
WHIP LENGTH
4.98"
4.74"
4.48"
4.24"
4.01"
3.81"
3.62"
3.46"
3.31"
3.18"
3.08"
2.99"
2.92"
2.87"
