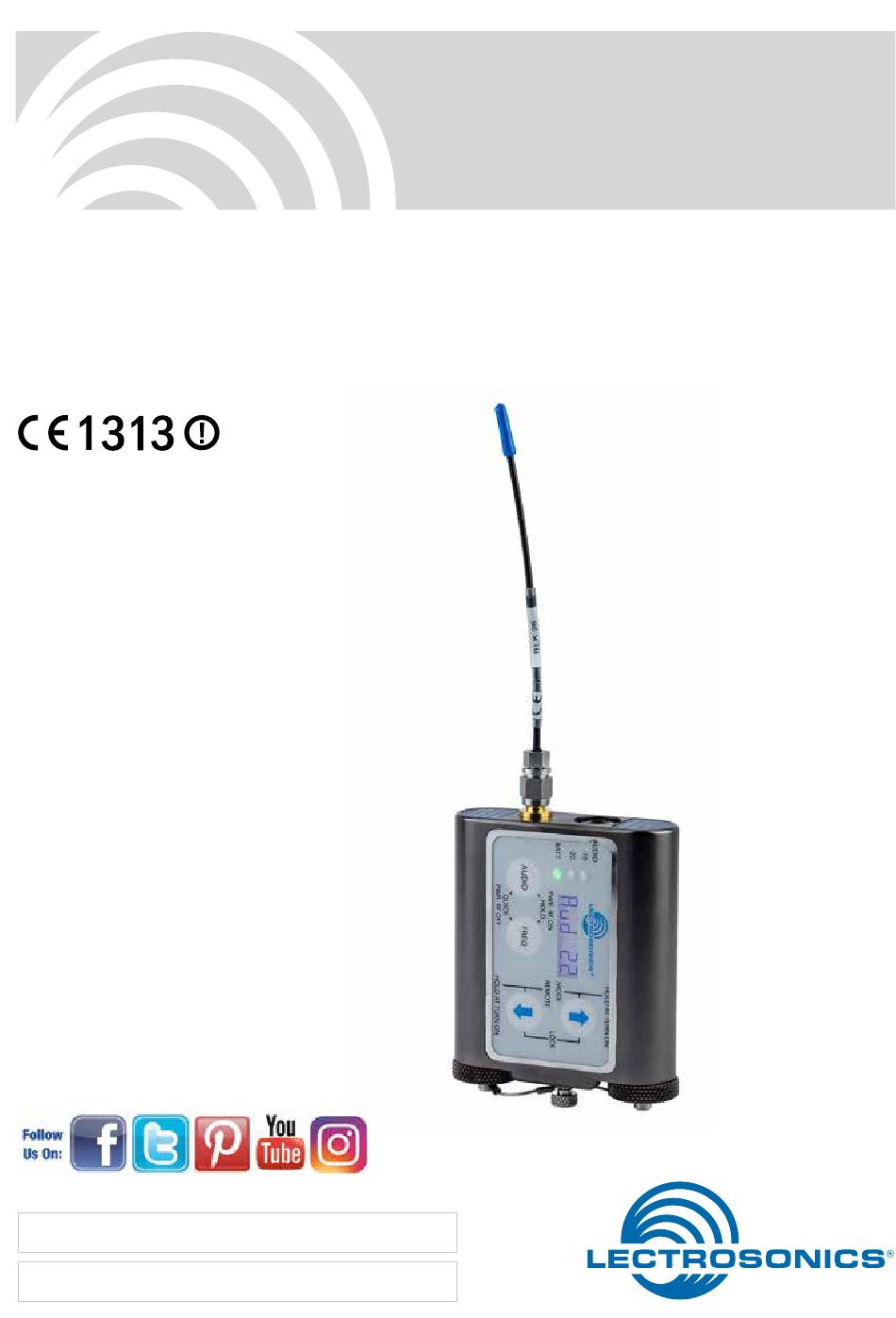

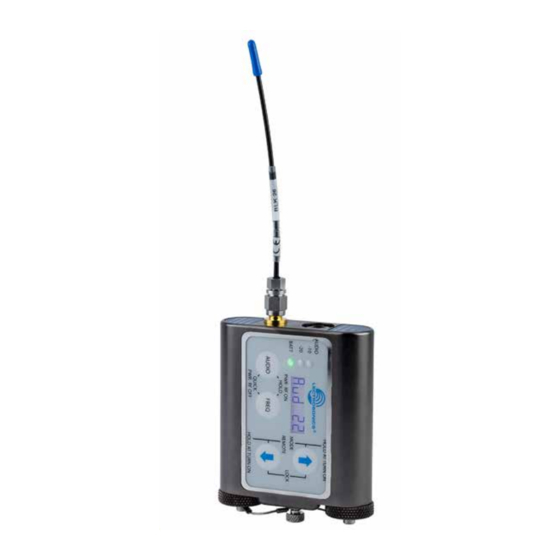

- Page 1 INSTRUCTION MANUAL WM/E01 Watertight Transmitter and Remote Control With Digital Hybrid Wireless Technology ® US Patent 7,225,135 Fill in for your records: Serial Number: Rio Rancho, NM, USA Purchase Date: www.lectrosonics.com...
- Page 2 WM/E01 LECTROSONICS, INC.
-
Page 3: Table Of Contents
Watertight Transmitter Table of Contents Introduction General Technical Description ........4 The WM/E01 transmitter is designed to resist damage Servo Bias Input.............. 4 when used in wet or dusty conditions and also offer No Pre-Emphasis/De-Emphasis ........4 a comprehensive feature set that makes it equally at Low Frequency Roll-Off .......... -
Page 4: General Technical Description
WM/E01 General Technical Description Servo Bias Input No Pre-Emphasis/De-Emphasis The voltage and current requirements of the wide The Digital Hybrid design results in a signal-to-noise variety of electret microphones used in professional ratio high enough to preclude the need for conventional... -
Page 5: Signal Encoding And Pilot Tone
This allows both batteries Compatibility Modes to be installed and the caps tightened before power WM/E01 transmitters are designed to operate with is restored. Lectrosonics Digital Hybrid receivers and will yield Frequency Blocks... -
Page 6: Controls And Functions
Note: A NiMH rechargeable battery will give the equivalent Lectrosonics Frequency Switch Set- little or no warning when it is depleted. If you ting. This button is also used with the AUDIO button... -
Page 7: About Batteries
Most Lectrosonics receivers have a timer function that will automatically stop when the transmitter shuts down at the end of battery life, so you will be able to accurately see the time available. -
Page 8: Operating Instructions
WM/E01 Operating Instructions Compatibility, Bias Voltage (phantom power) and LCD Backlight Power Up and Boot Sequence Four different setup screens are accessed in a setup Simultaneously press and hold the AUDIO and mode that is accessed with a special button se- FREQ buttons until the startup count is completed. -
Page 9: Frequency Selection
The second setup screen in this mode determines The hexadecimal numbering system is unique to how the transmitter is powered up again after the Lectrosonics where two alphanumeric characters batteries have become exhausted in normal opera- correspond to the left and right switch settings on tion the unit has shut down. -
Page 10: Audio Lf Roll-Off And Gain
WM/E01 Enable/Disable Remote Control Functions To enable the transmitter to respond to signals Signal Level -20 LED -10 LED from the RM/E remote control unit, use the UP and Less than -20 dB DOWN arrow buttons to select rc on on the setup screen. -
Page 11: Lock/Unlock Screens
Watertight Transmitter Preventing Corrosion Lock/Unlock Screens The control panel buttons can be locked out to avoid Whenever the transmitter has been exposed to mois- inadvertent changes in the settings or turning the ture or perspiration, follow the instructions below to unit off unintentionally. -
Page 12: Troubleshooting
WM/E01 Troubleshooting Before going through the following chart, be sure that you have a good battery in the transmitter. It is important that you follow these steps in the sequence listed. SYMPTOM POSSIBLE CAUSE TRANSMITTER PWR LED OFF 1) Battery is inserted backwards or dead. - Page 13 Watertight Transmitter SYMPTOM POSSIBLE CAUSE HISS AND NOISE -- AUDIBLE DROPOUTS 1) Transmitter gain (audio level) far too low. 2) Receiver antenna missing or obstructed. 3) Transmitter antenna broken or missing. 4) Operating range too great. 5) Signal interference. Turn off transmitter. If receiver’s signal strength indicator does not drop to nearly zero, this indicates an interfering signal may be the problem.
-
Page 14: Accessories And Replacement Parts
WM/E01 Accessories and Replacement Parts WMBCWIRE Belt clip; wire style; optional. WMBCSL Belt clip; spring loaded; included with transmitter. WPMC-3 Watertight connector kit, 3 piece, to terminate lava- liere microphones for use with the WM transmitter. WPMC-10 Watertight connector kit,10 piece, to terminate lava- liere microphones for use with the WM transmitter. -
Page 15: Specifications And Features
Watertight Transmitter Specifications and Features Operating frequencies: Low frequency roll-off: Adjustable from 35 to 150 Hz Block 470 470.100 - 495.600 Block 19 486.400 - 511.900 Block 20 512.000 - 537.500 Block 21 537.600 - 563.100 Mic in 35 Hz Roll-off Line in Block 22... -
Page 16: Ce Declaration Of Conformity
WM/E01 CE Declaration of Conformity R&TTE Directive (1999/5/EC) The WM/E01 may be operated in: The use of the WM/E01 requires a license and is subject to national restrictions on frequency selection and channel spacing. LECTROSONICS, INC. -
Page 17: Service And Repair
There are no adjustments inside that will make a malfunctioning unit start working. LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a modest flat rate plus parts and shipping. - Page 18 WM/E01 LECTROSONICS, INC.
- Page 19 Watertight Transmitter Rio Rancho, NM...
- Page 20 This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
