UM400a

Replacement Parts and Accessories

Item
Replacement wire belt clip
Replacement whip antenna

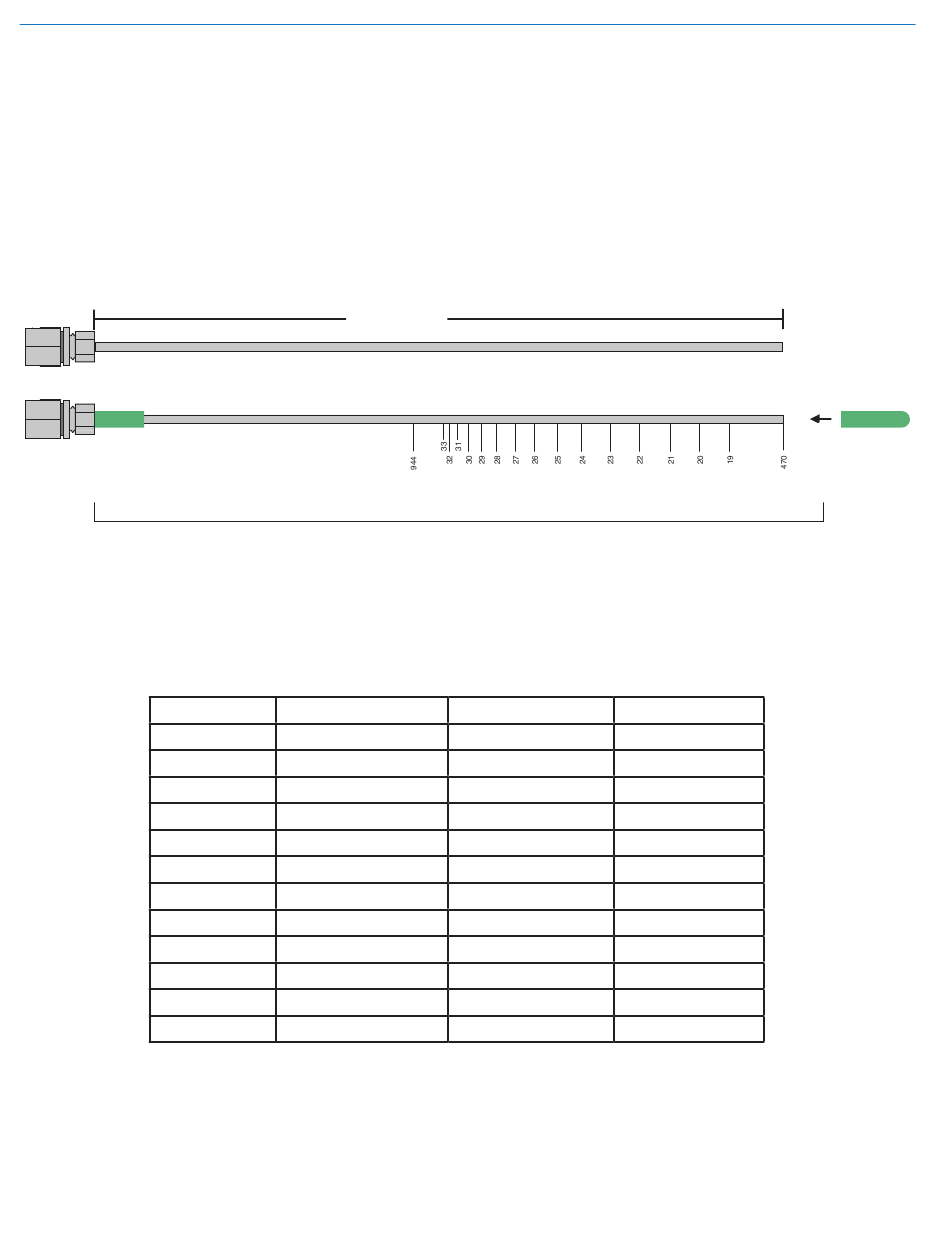

UHF Transmitter Antenna Specifications

Note: Check the scale of your printout. This line should be 6.00 inches long (152.4 mm).
Lectrosonics AMM Series UHF transmitter antennas follow the color code specifications in the chart below to identify
operating frequency block range. (The frequency block range is engraved on the outside housing for each individual
transmitter.) If a situation exists whereby the antenna is defective and the antenna cap is missing, refer to the following
chart to determine the correct replacement antenna.
BLOCK
470
19
20
21
22
23
24
25
26
27
28
29
944
14
Model/Part Number
Lectrosonics #BCWire
Lectrosonics AMM (xx) - specify frequency block (xx)
Whip Length
FREQUENCY
RANGE
470.100 - 495.600
486.400 - 511.900
512.000 - 537.500
537.600 - 563.100
563.200 - 588.700
588.800 - 614.300
614.400 - 639.900
640.000 - 665.500
665.600 - 691.100
691.200 - 716.700
716.800 - 742.300
742.400 - 767.900
944.100 - 951.900
CAP ANTENNA
COLOR WHIP LENGTH
Black 5.48"
Black 5.20"
Black 4.95"
Brown 4.74"
Red 4.48"
Orange 4.24"
Yellow 4.01"
Green 3.81"
Blue 3.62"
Violet (Pink) 3.46"
Grey 3.31"
White 3.18"
Black-w/Label 2.62"
