Q
uick
S
tart
G
uide

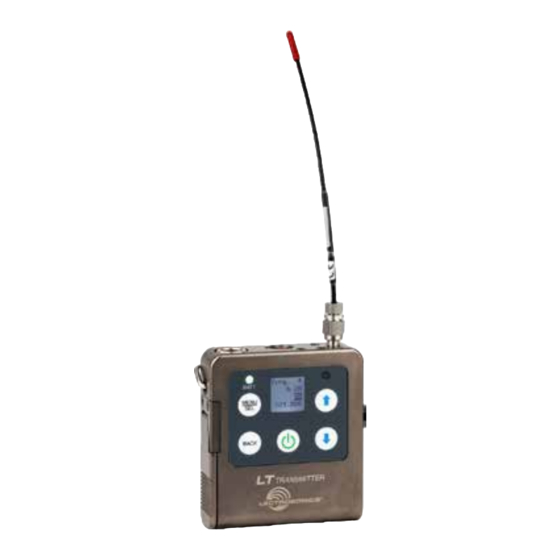

LT
Digital Hybrid
Wireless® Belt-Pack
Transmitter
LT, LT/E06, LT/X
Fill in for your records:
Serial Number:
Purchase Date:
U.S. Patent 7,225,135
This guide is intended to assist with
initial setup and operation of your
Lectrosonics product.
For a detailed user manual, down-
load the most current
version at:
www.lectrosonics.com/manuals
18 July 2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lectrosonics LT Series
Summary of Contents for Lectrosonics LT Series
- Page 1 LT, LT/E06, LT/X U.S. Patent 7,225,135 This guide is intended to assist with initial setup and operation of your Fill in for your records: Lectrosonics product. Serial Number: For a detailed user manual, down- load the most current version at: Purchase Date: www.lectrosonics.com/manuals...
-
Page 2: Controls And Features
Full access to all settings is provided through the keypad and LCD. The trans- mitter can also be configured as a “one button” device by locking the ability to make changes with the keypad, and configuring the top panel switch as either power on/off or a mute function. LECTROSONICS, INC. -
Page 3: Keypad And Lcd Interface
IR Sync will transfer the settings for frequency, step size and compatibility mode from the receiver to the transmitter. NOTE: If a mismatch exists between the receiver and transmitter, an error message will appear on the transmitter LCD stating what the problem is. www.lectrosonics.com... -
Page 4: Navigating The Menus
Use arrow keys to Enable Remote Ignore enable/disable remote BACK TxPower 50 mW Use arrow keys to select TxPower 100 mW RF power output BACK Default Use arrow keys to return Default settings transmitter to default factory BACK settings LECTROSONICS, INC. -
Page 5: Power Menu
Rf On? Yes or No answer AutoOn? Pwr Off AutoOn? Resume Rf On? AutoOn? Pwr Off Rf On? AutoOn? Pwr Off AutoOn? Backlit Rf On? Backlit LED Off AutoOn? LED Off About Backlit www.lectrosonics.com... -
Page 6: System Setup Procedures
1) Install Batteries Insert the batteries according to the markings on the back of the housing. 2) Set Compatibility Mode When used with a Lectrosonics Digital Hybrid Wireless receiver, the best ® audio quality will be achieved with the system set to the Nu Hybrid compat- ibility mode. - Page 7 6) If the audio output level of the receiver is too high or low, use only the controls on the receiver to make adjustments. Always leave the trans- mitter gain adjustment set according to these instructions, and do not change it to adjust the audio output level of the receiver. Continued on Next Page www.lectrosonics.com...
- Page 8 25 kHz and 100 b 19 kHz increments when the step size is 100 kHz. 494.500 494.500 These two fields Freq. Freq. always step in the same increments b 19 1 block steps 494.500 494.500 1 MHz steps LECTROSONICS, INC.
- Page 9 If the Step Size is 25 kHz with the frequency set between even 100 kHz steps and the Step Size is then changed to 100 kHz, the mismatch will cause the hex code to display as two asterisks. b 19 Freq. Step Size and b 19 Frequency MUTE mismatch 494.525 494.500 www.lectrosonics.com...
-
Page 10: Main Window Indicators
19 MUTE changed to 100 kHz. 494.525 494.525 If the programmable switch function is set for Mute, the Main Window will indicate that the function is enabled. b 19 Mute function enabled but MUTE not active 494.500 LECTROSONICS, INC. -
Page 11: Selecting Programmable Switch Functions
TalkBk (talkback) - redirects the audio to • ProgSw a different output channel on the receiver (with receivers that offer this function) (none) - disables the switch • NOTE: The programmable switch will continue to operate whether or not keypad changes are locked. www.lectrosonics.com... - Page 12 This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
