Figure 32. Component Configuration; Figure 33. Over/Undervoltage Battery Threshold Configuration; Figure 34. Over/Undervoltage Cell Threshold Configuration; Figure 35. Communication Configuration - STMicroelectronics AEK-POW-BMS63EN User Manual
Battery management system (bms) evaluation board based on the l9963e
Table of Contents
Advertisement
Step 11.
Click on AEK_POW_BMS63EN list item to configure each component allocated.
Step 12.
Configure Over/Under Voltage Battery Thresholds.
Step 13.
Configure Over/Under Voltage Cell Thresholds.
Step 14.
Configure Communication timeout value with AEK-POW-ISOSPI1.
UM3185 - Rev 1

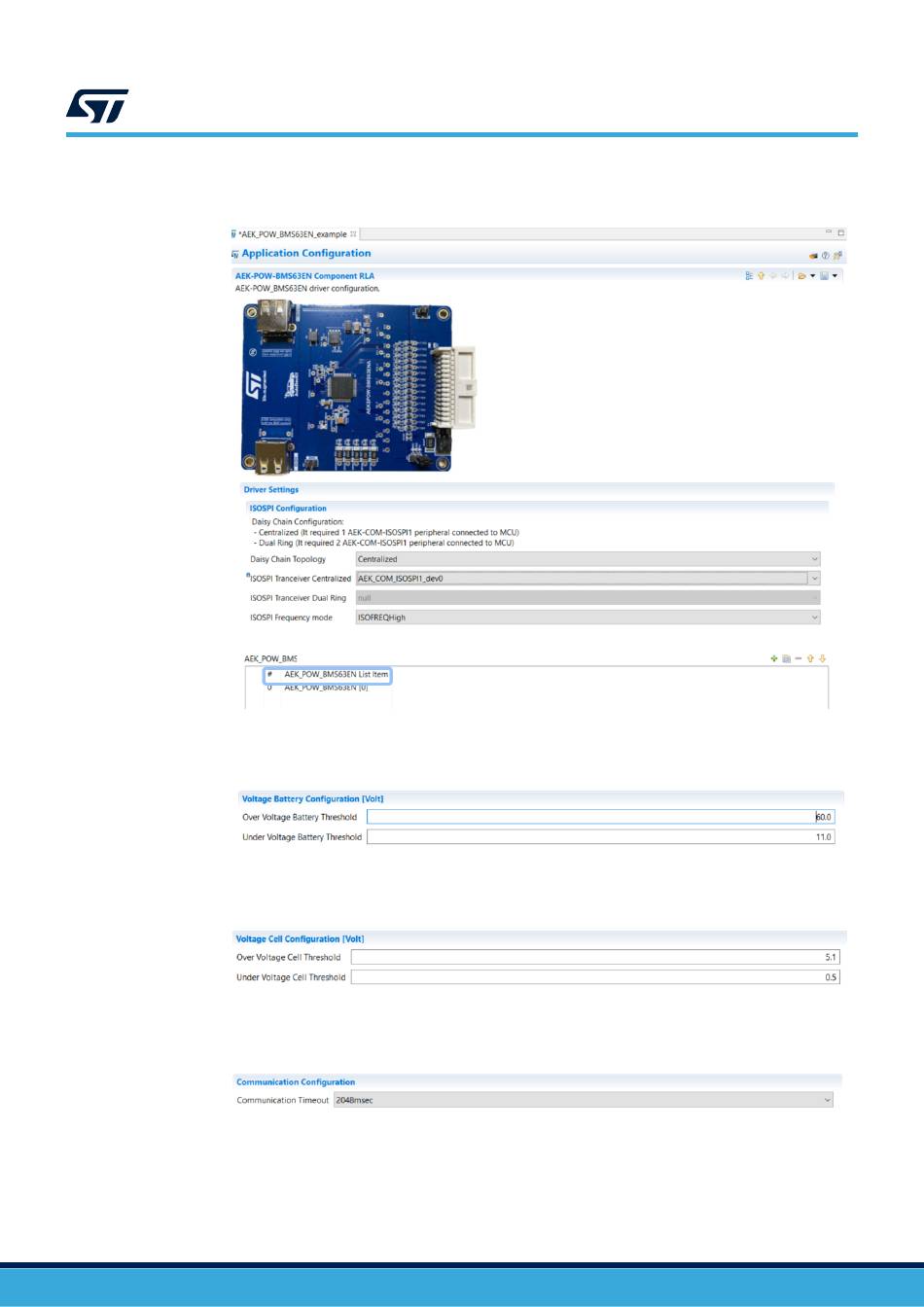

Figure 32.
Component configuration
Figure 33.
Over/undervoltage battery threshold configuration
Figure 34.
Over/undervoltage cell threshold configuration
Figure 35.
Communication configuration
UM3185
AEK-POW-BMS63EN in AutoDevKit
page 30/59
