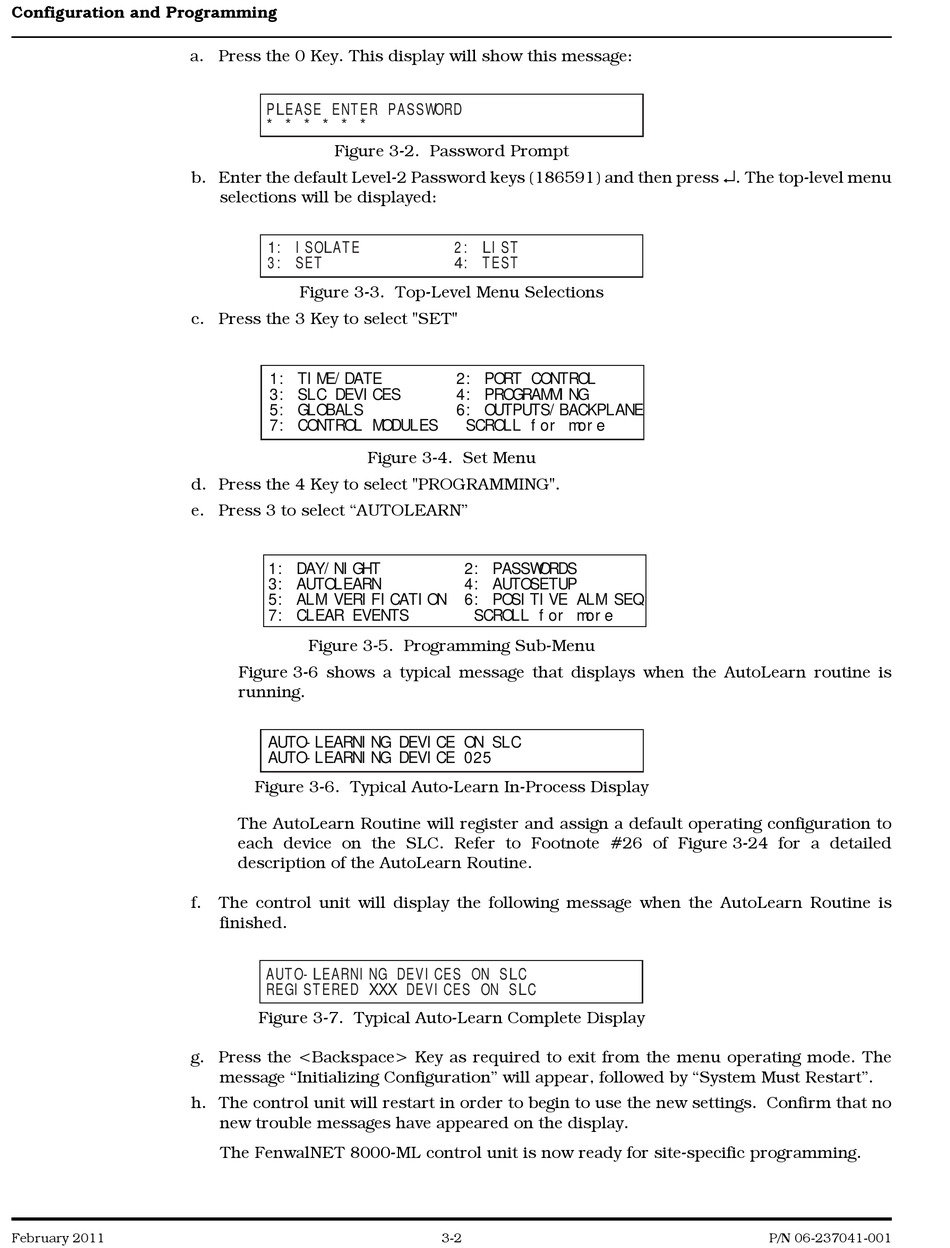

Configuration and Programming
a. Press the 0 Key. This display will show this message:
February 2011
PLEASE ENTER PASSWORD
* * * * * *
Figure 3-2. Password Prompt
b. Enter the default Level-2 Password keys (186591) and then press
selections will be displayed:
1: ISOLATE
3: SET
Figure 3-3. Top-Level Menu Selections
c. Press the 3 Key to select "SET"
1: TIME/DATE
3: SLC DEVICES
5: GLOBALS
7: CONTROL MODULES
Figure 3-4. Set Menu
d. Press the 4 Key to select "PROGRAMMING".
e. Press 3 to select "AUTOLEARN"
1: DAY/NIGHT
3: AUTOLEARN
5: ALM VERIFICATION
7: CLEAR EVENTS
Figure 3-5. Programming Sub-Menu
Figure 3-6 shows a typical message that displays when the AutoLearn routine is
running.
AUTO-LEARNING DEVICE ON SLC
AUTO-LEARNING DEVICE 025
Figure 3-6. Typical Auto-Learn In-Process Display
The AutoLearn Routine will register and assign a default operating configuration to
each device on the SLC. Refer to Footnote #26 of Figure 3-24 for a detailed
description of the AutoLearn Routine.
f. The control unit will display the following message when the AutoLearn Routine is
finished.
AUTO-LEARNING DEVICES ON SLC
REGISTERED XXX DEVICES ON SLC
Figure 3-7. Typical Auto-Learn Complete Display
g. Press the <Backspace> Key as required to exit from the menu operating mode. The
message "Initializing Configuration" will appear, followed by "System Must Restart".
h. The control unit will restart in order to begin to use the new settings. Confirm that no
new trouble messages have appeared on the display.
The FenwalNET 8000-ML control unit is now ready for site-specific programming.
2: LIST
4: TEST
2: PORT CONTROL
4: PROGRAMMING
6: OUTPUTS/BACKPLANE
SCROLL for more
2: PASSWORDS
4: AUTOSETUP
6: POSITIVE ALM SEQ
SCROLL for more
3-2

The top-level menu
