Taking the first steps

Connecting the desktop phone

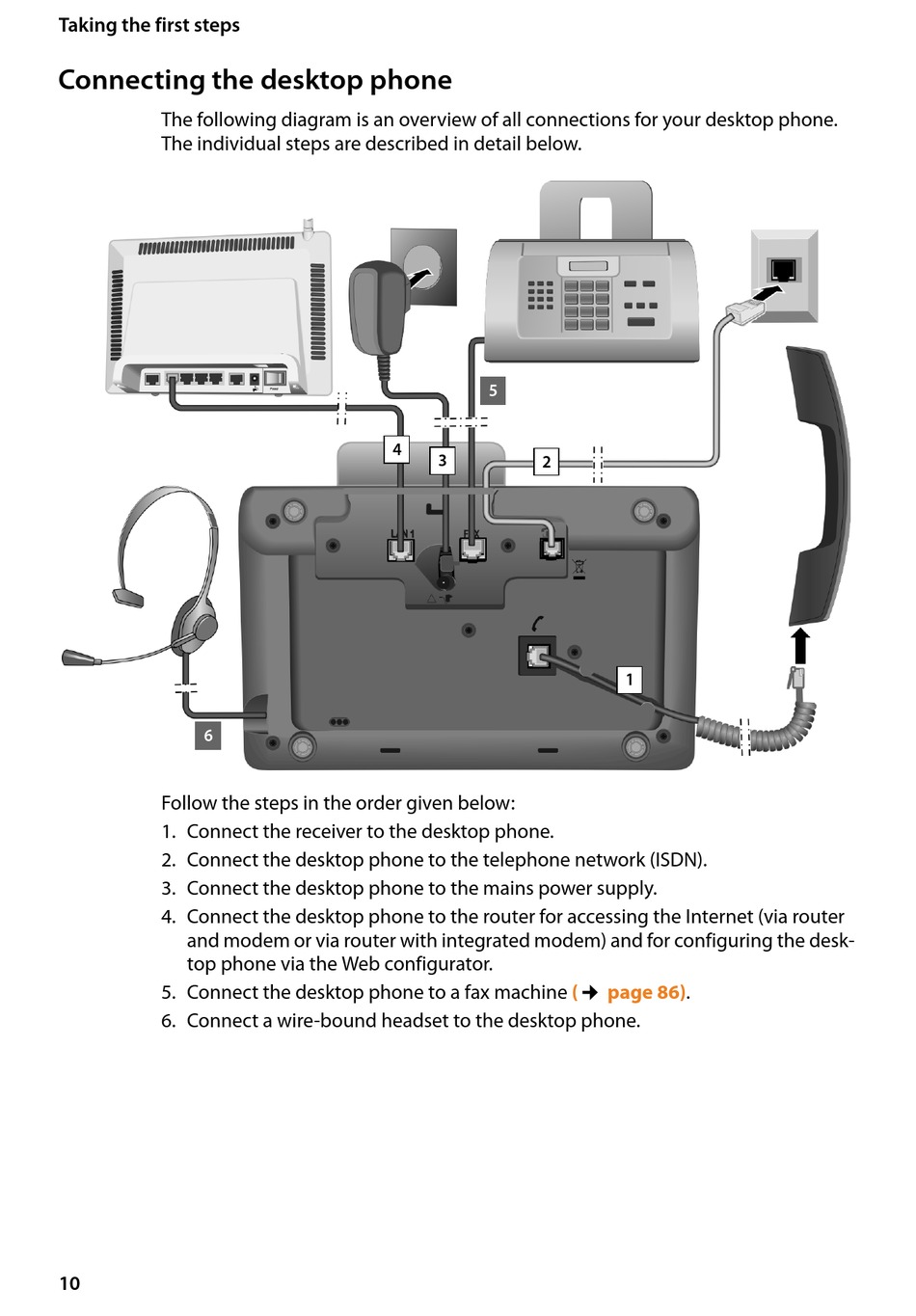

The following diagram is an overview of all connections for your desktop phone.
The individual steps are described in detail below.
6
Follow the steps in the order given below:
1. Connect the receiver to the desktop phone.
2. Connect the desktop phone to the telephone network (ISDN).
3. Connect the desktop phone to the mains power supply.
4. Connect the desktop phone to the router for accessing the Internet (via router
and modem or via router with integrated modem) and for configuring the desk-
top phone via the Web configurator.
5. Connect the desktop phone to a fax machine
6. Connect a wire-bound headset to the desktop phone.
10
5
4
3
2
1
¢
( page 86).
