6.3 Installing the protective casing
The protective casing pipe (80cm) is supplied along with the foundation.
Once the casing has been mounted on the foundation, the clear plastic protective lid on the bottom of the charging station
can be removed.

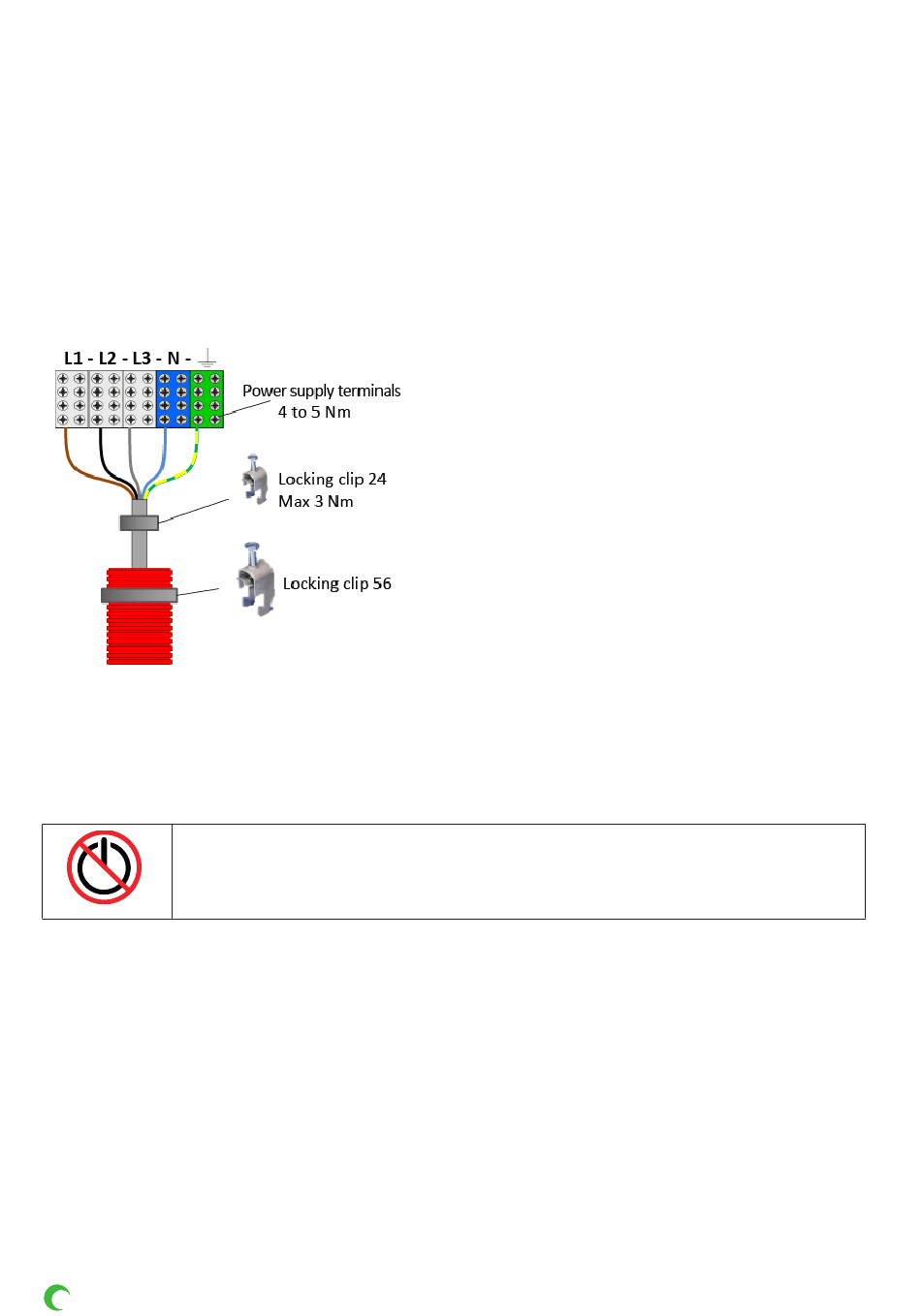

Install the casing bottom side-down and fix it in place using the support clamp. (diagram 1.1)
6.4 Feeding the cable and installing it with strain relief
Feed the power cable through the protective casing pipe.
Avoid making it too long. Fit the cable clamp around the cable and fix it in place (3 Nm max). (diagram 1.1)
6.5 Connecting the power cable to the terminals
Connect the phase conductors to the terminals marked L1 / L2 / L3 (4-5 Nm)
Connect the neutral conductor to the neutral terminal (blue)(4-5 Nm).
Connect the grounding conductor to the coded ground terminal (green)
T 1.6
6.6 Connecting the grounding electrode/grounding conductor
Connect the connection cable' s grounding conductor to the specified grounding point (the ground terminal). If a grounding
electrode has been installed, connect that to the ground terminal as well, as shown in diagram 1.1. Perform the entire
grounding process in accordance with the guidelines currently in force, namely NEN1010/EU/35

6.7 Replace cylinder lock

Always de-energise the charging column and read the operating instructions before handling mainte-
nance or malfunctions.
1. Use socket 2.5 to remove the cover plate which keeps the lock free of sand and dirt.
2. Insert the key into the right lock and turn the key clockwise.
3. Turn the two locks with casing counterclockwise 90˚.
4. Lift the cover (front with lock) up and off the column.
