6.8 Half euro lock cylinder replacement

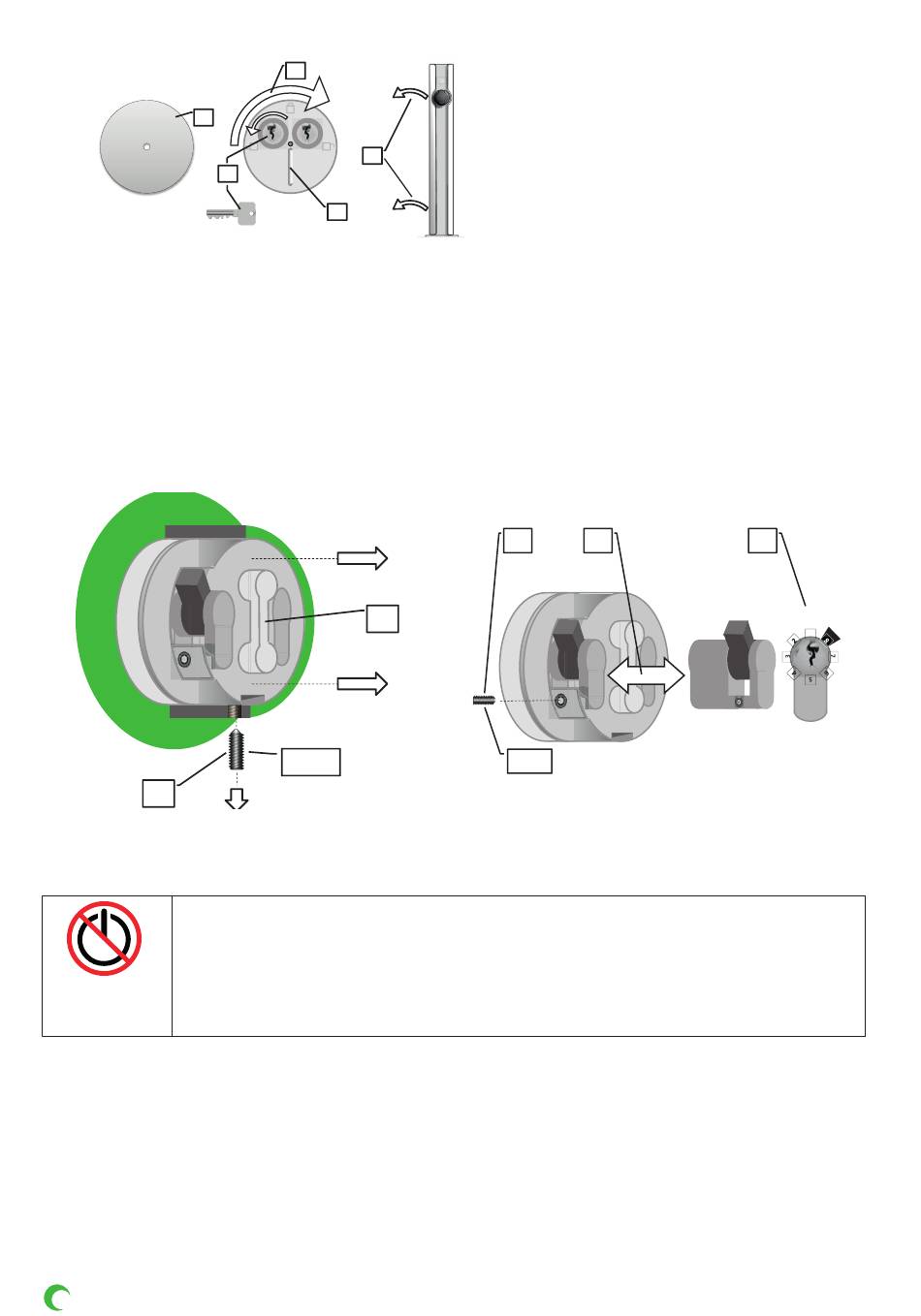

1. Unscrew the Allen bolt with socket 3mm.
2. Slide the entire lock cylinder (with the locks) out of the cover.
3. Work the cylinder lock, making sure the cam matches Figure 6 (T 1.9)
4. Unscrew the Allen bolt (with Allen spanner 2.5mm).
5. Lock can be replaced.
6. Screw everything in reverse order.
T 1.8
4

7. MAINTENANCE

Always disconnect the charging station from its power supply completely and read the manual before
performing any maintenance or fixing any malfunctions.
Repairs or replacements of components may only be done if using products that are approved by the
supplier. When in doubt, please contact Ecotap® first.
Repairs and replacements must always be performed by an authorised person / specialist. The maintenance must always
comply with and be performed in compliance with NEN3140 and NEN50110 low voltage European standards.
Check the charging station for any leaks.
Test the heating element and the thermostat together to make sure they are working correctly. The thermostat must be set
to five degrees or to frost protection mode. Check the connections on the power supply cable and ensure a fixed connection
of between 4 and 5 Nm.
Treat any minor damage to the charging station with corrosion-resistant paint in the right shades (Ecotap® green ral.6018 &
white ral.9016).
Treat the cylinder locks with graphite powder or a suitable oil product if they require any maintenance.
