IEC 61815-1 VDE-AR-E2623-2-2
4 moun ng holes for moun ng the casing
T 1.2

6.2 Opening and closing the charging station

Always de-energise the charging column and read the operating instructions before handling
maintenance or malfunctions.
At the base of the charging station, at the front in the cover, there is a lock that locks the entire DUO charging column.
• Remove the cover plate with socket 2.5.
• Open the charging point with the key provided.
• Insert your key into the right lock.
• Turn the key all the way to the right.
• Turn the two locks with cylinder all the way to the left.
7. www.ecotap.nl

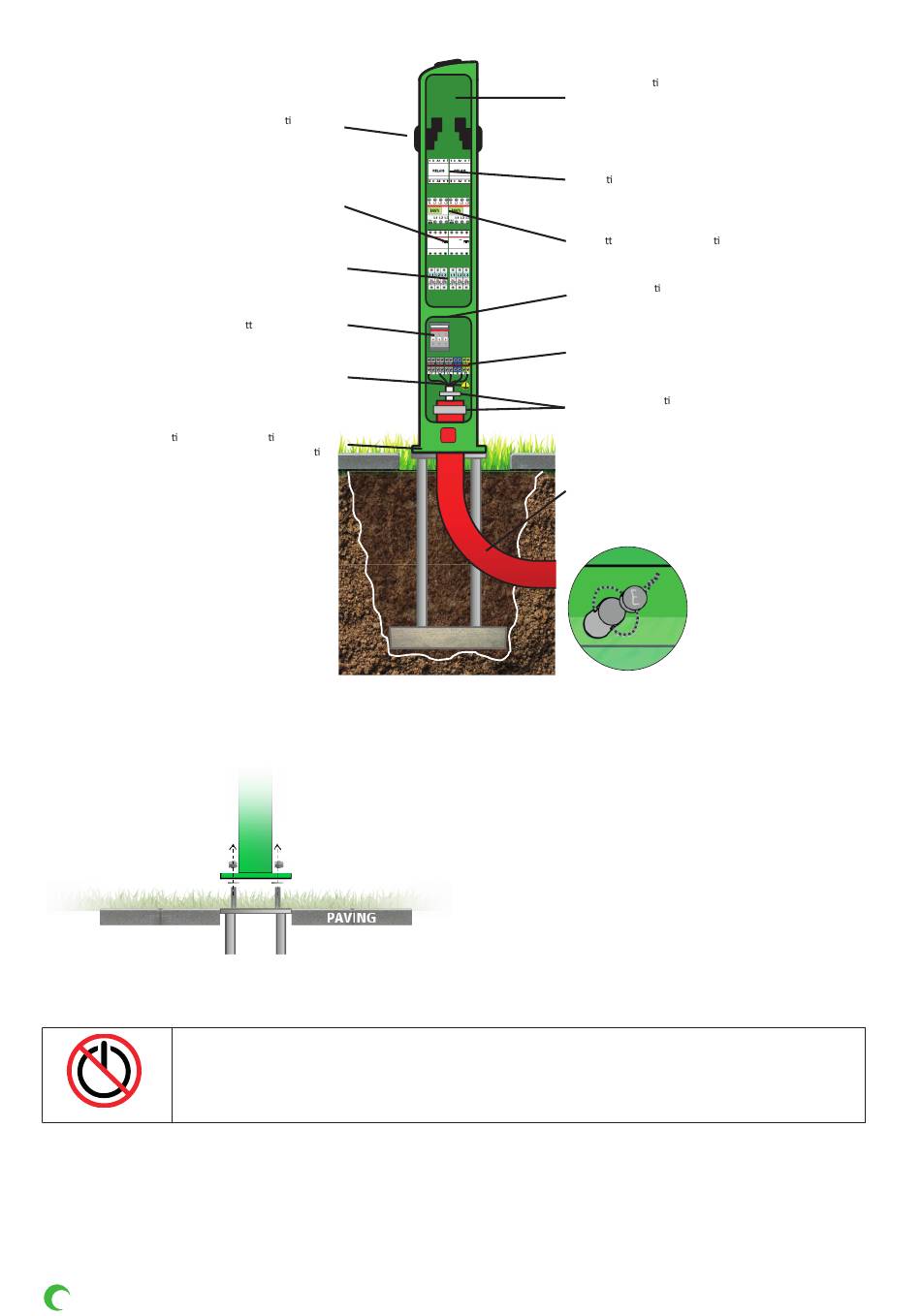

Plug connec on type 2
RCD
Fuses
Pa ern load separator
Central grounding point
on the founda on
Transparant plas c cap
May only be removed by Ecotap B.V.
Or authorised personnel
Magne c switch
Kilowa hour meter MID cer fied
Transparant plas c lid
to be sealed with seal closure*
35mm2 terminals
Strain relief for protec ve casing and
power cable
Robust casing 40mm²
*
