- Page 1 DC60 Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction General Warranty Symbols used in this manual Device description Application Accessories Safety device Safety Safety instructions Mandatory checks before initial use Operation / installation manual Open the door Mounting on foundation Insert cable and attach strain relief Load Balancer Maintenance Transportation and storage... -
Page 3: Introduction
1. INTRODUCTION Thank you for choosing an Ecotap® DC charger. This manual describes the DC charger. This manual contains important information for the proper and safe installation and operation of the DC charger. The charging station is designed for vehicles fitted with a mode-4 charging system in line with IEC 61851-1 (edition 2.0) using a connector jack system as per VDE-AR-E 2623-2-2 / IEC 62196-2. -
Page 4: Device Description

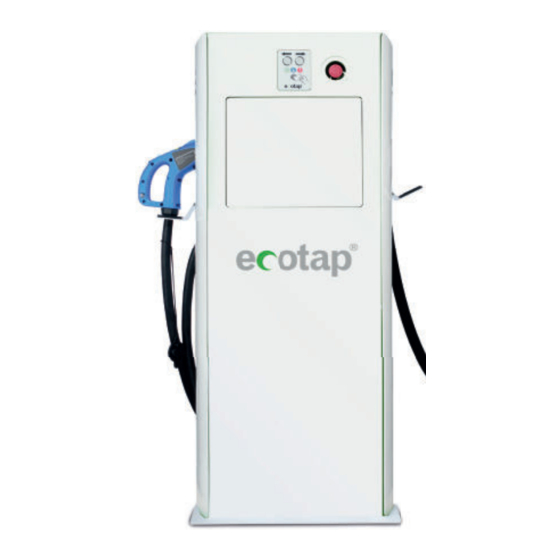

Disconnect the electrical installation from its power supply Reading this manual is mandatory 3. DEVICE DESCRIPTION Application The charging station is specially designed for intensive use. Locations not suitable for placing the charging station: - Small enclosed spaces < 4m3 - The preferred position of the charging station is not directly in full sun. -
Page 5: Mandatory Checks Before Initial Use
5. MANDATORY CHECKS BEFORE INITIAL USE The following checks are mandatory before installing / commissioning the charging station. NEVER use the charging station if the 1 or more checks show that the power supply or stability of the charging station is inadequate. Always perform the checks below before applying voltage to the charging station. -
Page 6: Insert Cable And Attach Strain Relief
Back DIA 27mm DIA 12mm DIA 25mm DIA 40mm DIA 25mm 395mm 346mm 305mm 197mm 90mm 49mm 28mm Front 100mm 170mm 300mm 443mm 501mm 572mm 600mm 6.3 Inserting cable and securing with strain relief Secure the power cable in the foundation using the cable gland. Connect the conductors of the cable to the existing main switch terminals (max. -
Page 7: Maintenance
7. MAINTENANCE Always de-energise the charging station and read the operating instructions before handling maintenance or faults.Repair or replacement of components should only be done with the products approved by the supplier. Repairs and replacements must always be carried out by an authorised / specialist.Maintenance must always comply and be carried out in accordance with NEN3140 and NEN 50110 low voltage Euro standard. -
Page 8: Technical Specifications
11. TECHNICAL SPECIFICATIONS AC INPUT Input voltage: 3 x 400VAC + N ± 10% Input frequency: 50Hz Rated output load PF ≥ 0.99 Power factor: Connection value: Minimal 3 x 90A (With a lower available capacity, the charger can be set lower by software) RCD: Type B... - Page 9 Storage temperature: - 40°C ~ 85°C ≤ 95% RH, without condensation Humidity: Pressure/Altitude: 79kPa~106kPa/2000m PHYSICAL CHARACTERISTICS < 62dB (measured at 1 meter distance, under ideal conditi- Acoustic Noise: ons) Water resistance class: IP54 Cooling: Air Cooling fans Dimensions: 1440 mm x 610 mm x 350 mm European Standards: EN 61851-1 2011, EN 6185123-2014, CE Casing material:...
-
Page 10: Contact Details Supplier
Pay attention ! Earthing (earth dispersion resistance) completely in accordance with the applicable standards. Ecotap® B.V. reserves the right to change technical details due to continual, innovative development of the charging station, without publishing this in advance. The technical details might also differ from country to country. 12. - Page 11 Ecotap B.V. Kruisbroeksestraat 23 5281 RV Boxtel The Netherlands +31(0) 411 210 210 info@ecotap.nl www.ecotap.nl...
