Summary of Contents for LEGRAND ecotap Duo
- Page 1 Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction General Warranty Symbols used in this manual and on the system Device description Accessories Safety features Safety Safety regulations Mandatory checks before initial use User / installation manual Mounting the casing on the foundation Opening and closing the charging station Mounting casing pipe Cable entry and securing with strain relief Connecting power cable to terminals... -
Page 3: Introduction

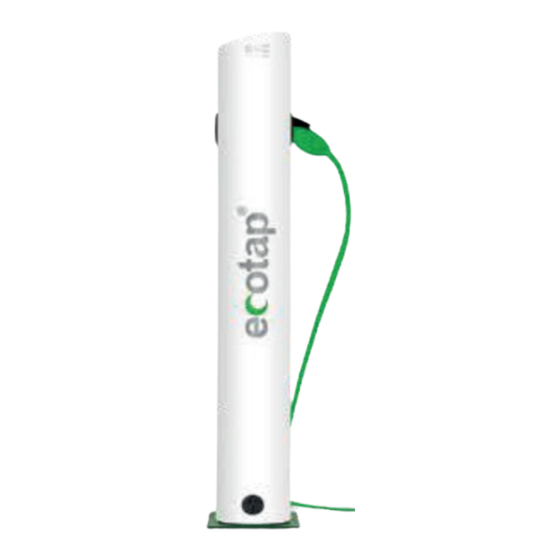

1. INTRODUCTION Thank you for choosing for an Ecotap® charging station. This manual is regarding the charge point DUO. This manual contains important information for properly and safely installing and using the charging station. This charging station is designed for vehicles that are equipped with a mode 3 charging system that complies with IEC 61815- 1 (version 2.0) and a plug system that complies with VDE-AR-E 2623-2-2. -
Page 4: Device Description
Reading this manual is mandatory 3. DEVICE DESCRIPTION 3.1 Use This charging station is especially designed for public areas. The station can be installed in various environments: in paved areas, in open soil/sand, or in asphalt surfaces. The following environments, however, are not suitable: - All grounds that can flood - Loading quays - Slope at an angle of more than 4%... -
Page 5: Mandatory Checks Before Initial Use
Always check any measuring instruments you will be using to disconnect the installation from its power supply before you use them, checking them several times to make sure they are working properly. 5. MANDATORY CHECKS BEFORE INITIAL USE The following checks are mandatory before the charging station goes live. NEVER use the charging station if one or more of the checks indicate that the power supply or stability of the charging station does not suffice. - Page 6 T 1.0 T 1.1 www.ecotap.nl 11-07-23...
-
Page 7: Opening And Closing The Charging Station
Transparant plas c cap May only be removed by Ecotap B.V. Or authorised personnel Plug connec on type 2 IEC 61815-1 VDE-AR-E2623-2-2 Magne c switch Kilowa hour meter MID cer fied Fuses Transparant plas c lid to be sealed with seal closure* Pa ern load separator 35mm2 terminals Central grounding point... - Page 8 T 1.3 After unlocking the lock, the front cover (with lock) can be After removing the front cover, the rear cover can be disconnected from the charging point. disconnected. • Grasp the front cover at the sides. • At the bottom of the charging point at the front, loosen the •...
-
Page 9: Mounting Casing Pipe
6.3 Installing the protective casing The protective casing pipe (80cm) is supplied along with the foundation. Once the casing has been mounted on the foundation, the clear plastic protective lid on the bottom of the charging station can be removed. Install the casing bottom side-down and fix it in place using the support clamp. -
Page 10: Half Euro Lock Cylinder Replacement
T 1.7 6.8 Half euro lock cylinder replacement 1. Unscrew the Allen bolt with socket 3mm. 2. Slide the entire lock cylinder (with the locks) out of the cover. 3. Work the cylinder lock, making sure the cam matches Figure 6 (T 1.9) 4. -
Page 11: Transportation And Storage
8. TRANSPORTATION AND STORAGE Transport the charging station (the core housing all of the technology) upright and prevent the coating from being damaged; any such damage might result in corrosion. Provided that they are properly protected to prevent them being damaged, the caps can be transported in a variety of positions. - Page 12 Weight (kg) 45 kg for 60451810 / 60451110 / 60451610 / 60081812 / 60081112 / 60081612 / 60081813 / 60081114 / 60081614 49 kg for 60111810 / 60321110 / 60161610 / 60321610 / 60102215 / 60102205 / 60080199 / 60080198 Number of charging points Socket Type 2...
-
Page 13: Contact Details Supplier
Back office protocol OCPP 1.6 Json Positioning Connectivity Ethernet RJ45 connector for 60451810 / 60451110 / 60451610 / 60081813 / 60081114 / 60081614 / 60102215 / 60080199 Environment Operating temperature -25°C / +50°C Storage temperature -25°C / + 80°C Relative humidity 0 to 90% without condensation Protection rating IP 54 (IEC 60529), IK 10 (EN 62262) Plugged in or not... -
Page 14: Eg Conformity Statement
13. EC DECLARATION OF CONFORMITY EC Declaration of Conformity for machines (Directive 2014/35/EU, Annex II page 96/369) Ecotap® B.V. Industrieweg 4 5281RW Boxtel, The Netherlands, hereby declares that the charging stations stated below comply with the Machinery Directive and other regulations and standards mentioned. Name: Ecotap®... - Page 15 Ecotap B.V. Kruisbroeksestraat 23 5281 RV Boxtel The Netherlands +31(0) 411 210 210 info@ecotap.nl www.ecotap.nl...
