LEGRAND ecotap Duo Manual page 8

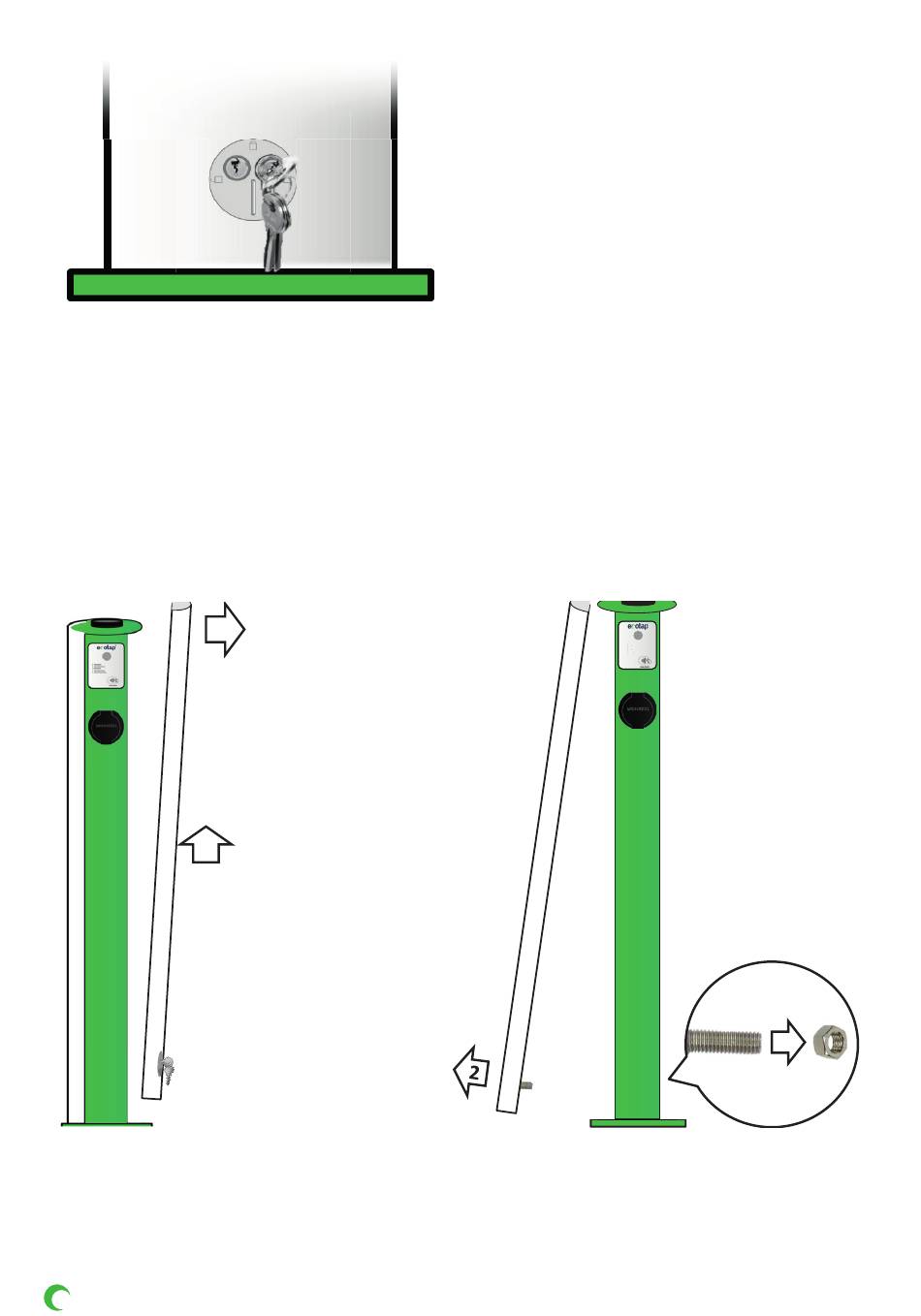

T 1.3
After unlocking the lock, the front cover (with lock) can be
disconnected from the charging point.
• Grasp the front cover at the sides.
• Slide the front cover upwards (± 10cm) and move the
top of the front cover away from the charging point. (see
T1.4)
T 1.4
2
1
8. www.ecotap.nl
After removing the front cover, the rear cover can be
disconnected.
• At the bottom of the charging point at the front, loosen the
two nuts.
• Move the rear cover off the charging point at the bottom.
(see T1.5)
T 1.5
A A teks ekst teks
A A teks eks ekst teks
A A teks ekst teks
A teks eks ekst A teks
A A teks ekstks eks teks
ekst
eks ekst
ekst
eks ekst
ekstks eks
X2
