Section 1: Configurations - EZ-ACCESS PATHWAY Assembly Manual

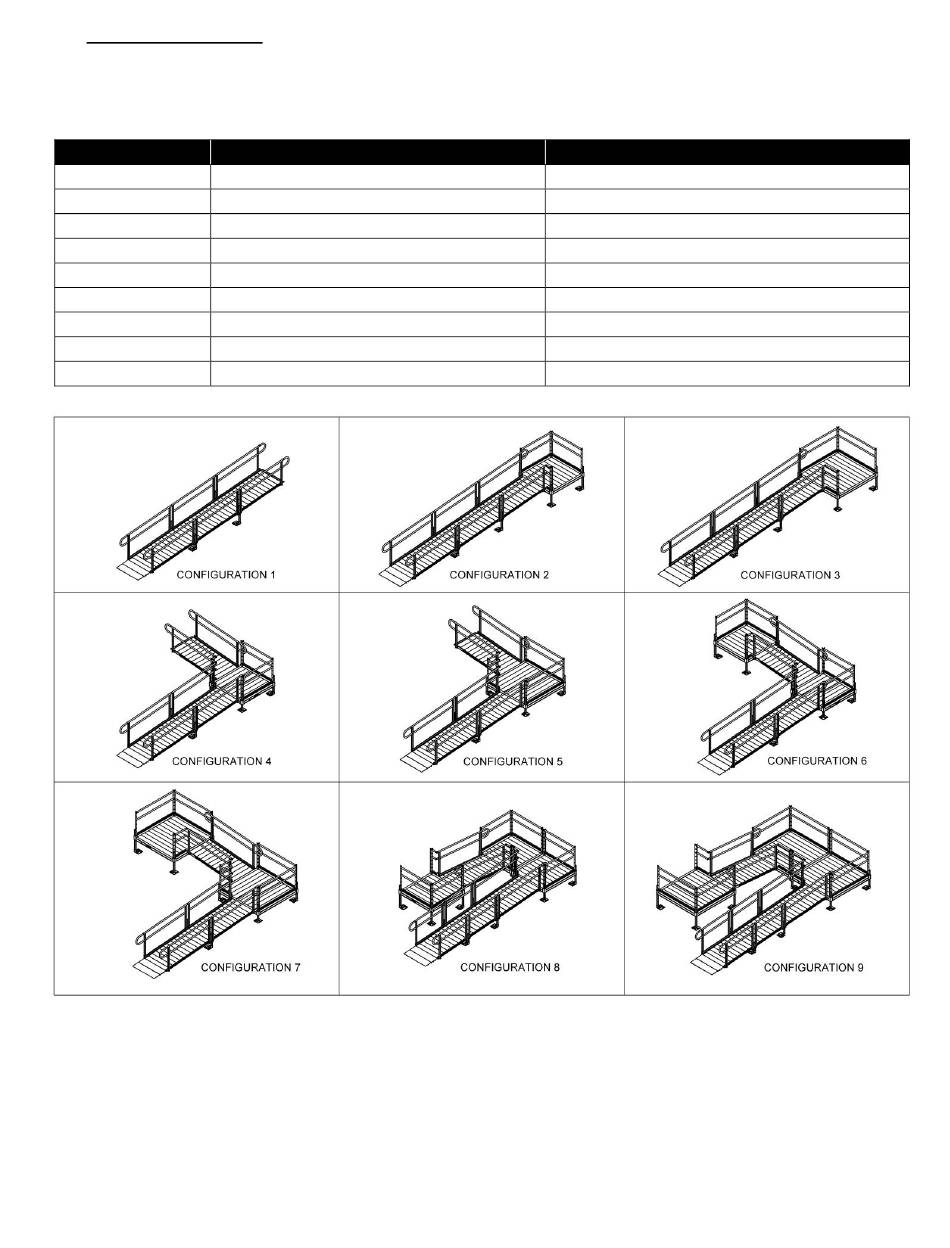

1. CONFIGURATIONS
PATHWAY Aluminum Wheelchair Ramp Kits are available in three basic configurations: straight, L-shaped,
and U-shaped, with two platform sizes available, 4' x 4' and 5' x 5'. All systems feature solid surface tread
and Two-Line handrails.
CONFIGURATION #
CONFIGURATION 1
CONFIGURATION 2
CONFIGURATION 3
CONFIGURATION 4
CONFIGURATION 5
CONFIGURATION 6
CONFIGURATION 7
CONFIGURATION 8
CONFIGURATION 9
®
PATHWAY Aluminum Wheelchair Ramp Kit Assembly Manual
STYLE
STRAIGHT
STRAIGHT W/ 4' X 4' TOP PLATFORM
STRAIGHT W/ 5' X 5' TOP PLATFORM
L-SHAPED W/ 4' X 4' TURN PLATFORM
L-SHAPED W/ 5' X 5' TURN PLATFORM
L-SHAPED W/ 4' X 4' TURN AND TOP PLATFORM
L-SHAPED W/ 5' X 5' TURN AND TOP PLATFORM
U-SHAPED W/ 4' X 4' PLATFORMS
U-SHAPED W/ 5' X 5' PLATFORMS
AVAILABLE SIZES
2' INCREMENTS RANGING FROM 10'-30' IN LENGTH
2' INCREMENTS RANGING FROM 10'-30' IN LENGTH
2' INCREMENTS RANGING FROM 10'-30' IN LENGTH
2' INCREMENTS RANGING FROM 10'-30' IN LENGTH
2' INCREMENTS RANGING FROM 10'-30' IN LENGTH
2' INCREMENTS RANGING FROM 10'-30' IN LENGTH
2' INCREMENTS RANGING FROM 10'-30' IN LENGTH
2' INCREMENTS RANGING FROM 20'-30' IN LENGTH
2' INCREMENTS RANGING FROM 20'-30' IN LENGTH
Page 5 of 40
