6.1.6. Trim the 1-1/2" diameter round tube to the length measured less 1/16" (FIG. 6.3).
6.1.7. Using a metal file, smooth any sharp edges from the trimming.
6.1.8. Disassemble the adjustable elbow by removing the screw and nut.
6.1.9. Install an elbow half into the end of the trimmed tube which will attach to the ramp handrail
and a 5/16"-18 round threaded insert into the end which will attach to the post (FIG. 6.3).
6.1.10. Reassemble the elbow with the screw and nut (FIG. 6.4).

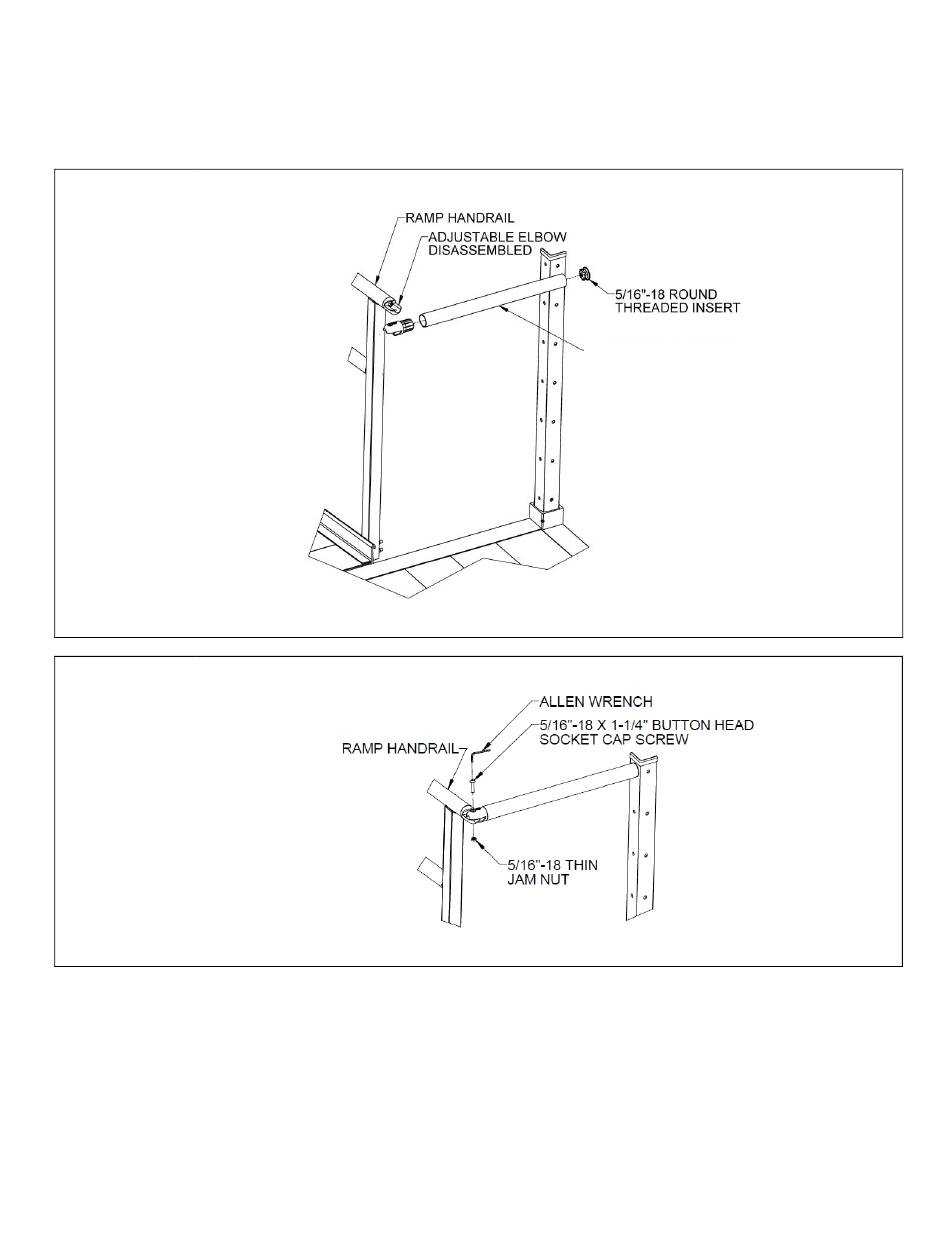

FIG. 6.3
FIG. 6.4
®
PATHWAY Aluminum Wheelchair Ramp Kit Assembly Manual
1-1/2" DIAMETER TUBE TRIMMED
TO FIT GAP LESS 1/16"
