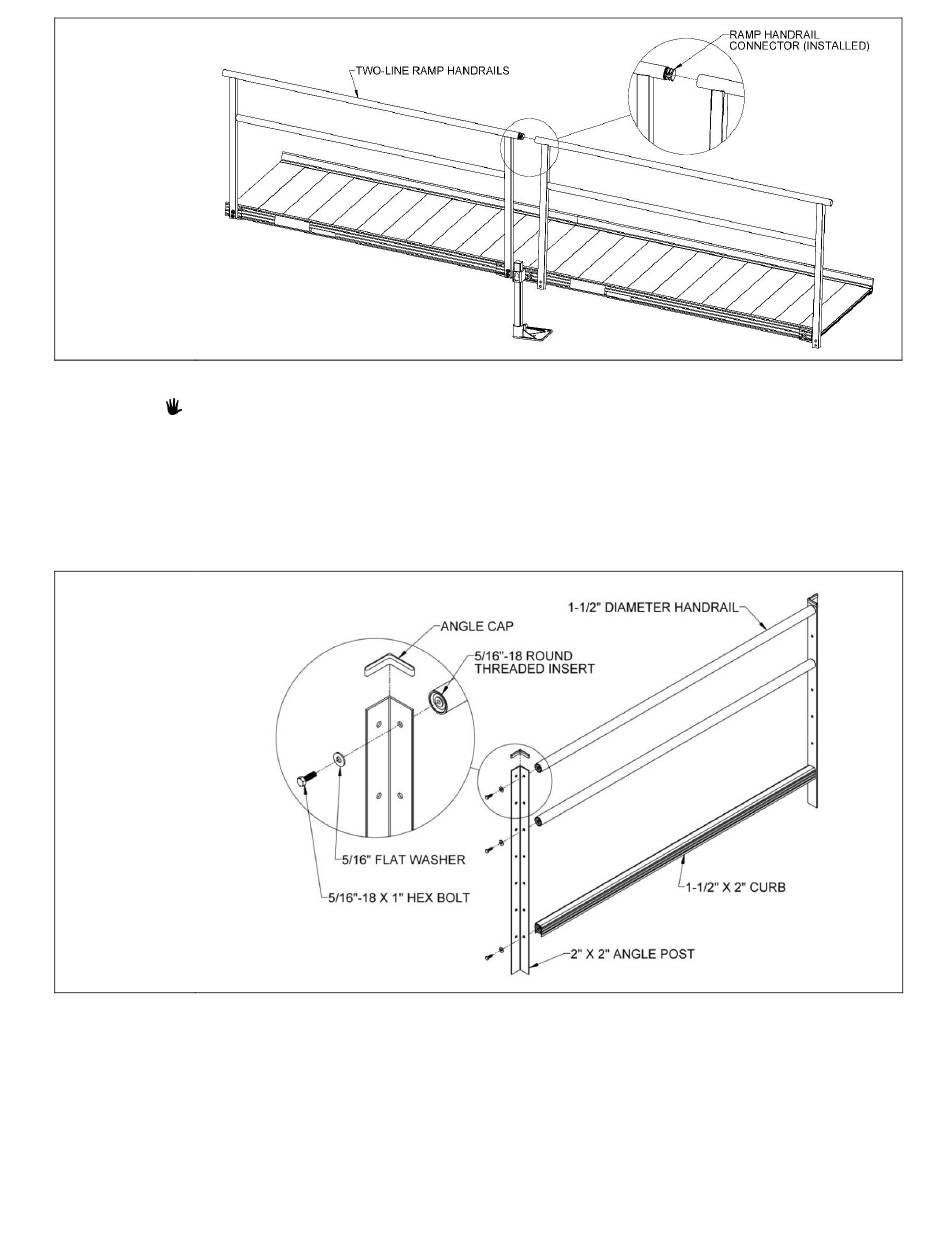

FIG. 5.2

5.2. ASSEMBLE PLATFORM HANDRAILS

If your configuration does not include a platform, skip to 'INSTALL RAMP HANDRAIL END LOOPS'.

5.2.1. Two-Line handrails are provided in pairs when ordered with the platform. It is strongly

recommended the bolts be assembled loosely and not fully tightened until all have been

installed and the handrail has been installed on the platform.

5.2.2. Using holes shown (FIG. 5.3) for platform handrails, pre-assemble handrails by inserting a

5/16"-18 x 1" hex bolt through a 5/16" flat washer, the angle post, and into a 5/16"-18 round

threaded insert in the handrails and curb.

FIG. 5.3

PATHWAY

Aluminum Wheelchair Ramp Kit Assembly Manual

Page 26 of 40
