5. HANDRAILS

5.1. RAMP HANDRAILS

5.1.1. Two-Line handrails are provided in pairs. One handrail is required on each side of the ramp,
but handrails are interchangeable side to side. It is strongly recommended the bolts be
assembled loosely and not fully tightened until all have been installed and the handrail has
been installed on the ramp.
5.1.2. In configurations with more than one ramp in a run, handrail connectors (PRRC – CONNECTOR
RAMP TO RAMP) are used to join handrails together. Refer to FIGs. 5.1 and 5.2 for the
following:

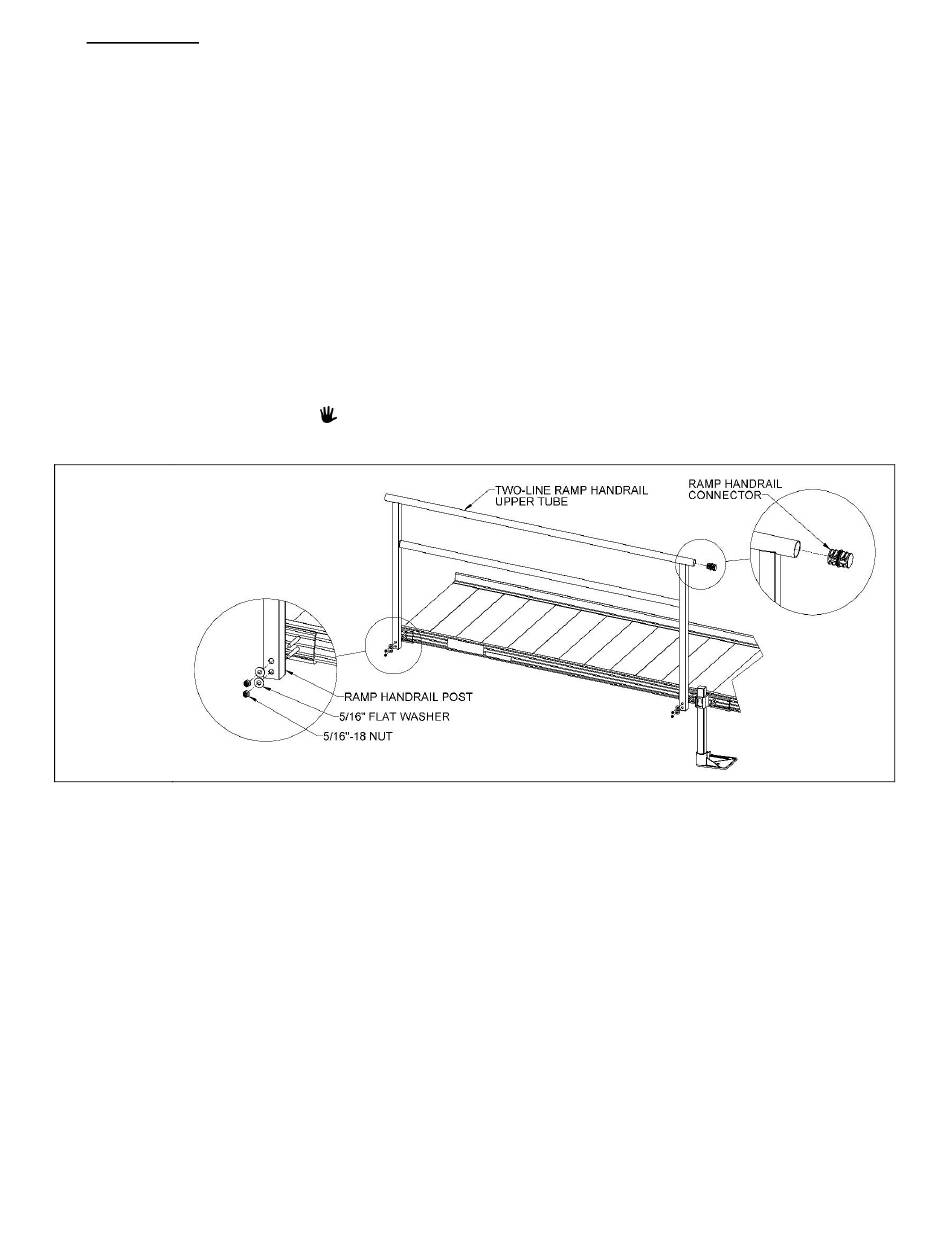

FIG. 5.1
®
PATHWAY Aluminum Wheelchair Ramp Kit Assembly Manual
5.1.2.1. The vertical posts of the handrails each have two holes that correspond with the
studs on the end or Center Saddle Brackets (installed in steps).
5.1.2.2. Attach handrails to the studs using two 5/16" flat washers and two 5/16"-18 nuts
per post. Tighten 5/16"-18 nuts just enough to hold the handrail in place.
5.1.2.3. If the studs do not align with the posts in the handrail, the handrail end bracket
is most likely installed into the wrong threaded insert in the ramp side rail (see
FIGs. 4.2 or 4.14 for proper installation location). Slide the ramp handrail
connector into one end of the upper handrail tube.
If the connector does not fit in the tube, use pliers to lightly compress the
connector while sliding it into the handrail tube.
5.1.2.4. Slide the next handrail section over the connector, ensuring the upper handrail
tubes are pushed firmly towards each other. Compress the connector. Use a
rubber mallet or similar tool to fully seat as needed.
5.1.2.5. Rotate the handrail until the holes in the handrail post align with the studs in the
saddle brackets that are connected to the ramp. Attach with 5/16" flat washers
and 5/16"-18 nuts but tighten only enough to hold the handrail in place.
5.1.2.6. Repeat for the remaining handrails in the run, then tighten all fasteners securely.
