4.3. ATTACH SUPPORT LEG BRACKETS AND LEGS TO RAMPS

4.3.1. Install the Support Leg Bracket ("bracket"), included with PRRUC, on the center studs of

the Center Saddle Bracket (ramp connector included with PRRUC) with the round hole

on the upper stud and the curved slot over the lower stud (FIG. 4.5).

4.3.2. Attach the bracket using the provided 5/16" flat washers and 5/16"-18 nylon insert

locknuts onto the studs but do not tighten fully until the bracket has been leveled.

PATHWAY

Aluminum Wheelchair Ramp Kit Assembly Manual

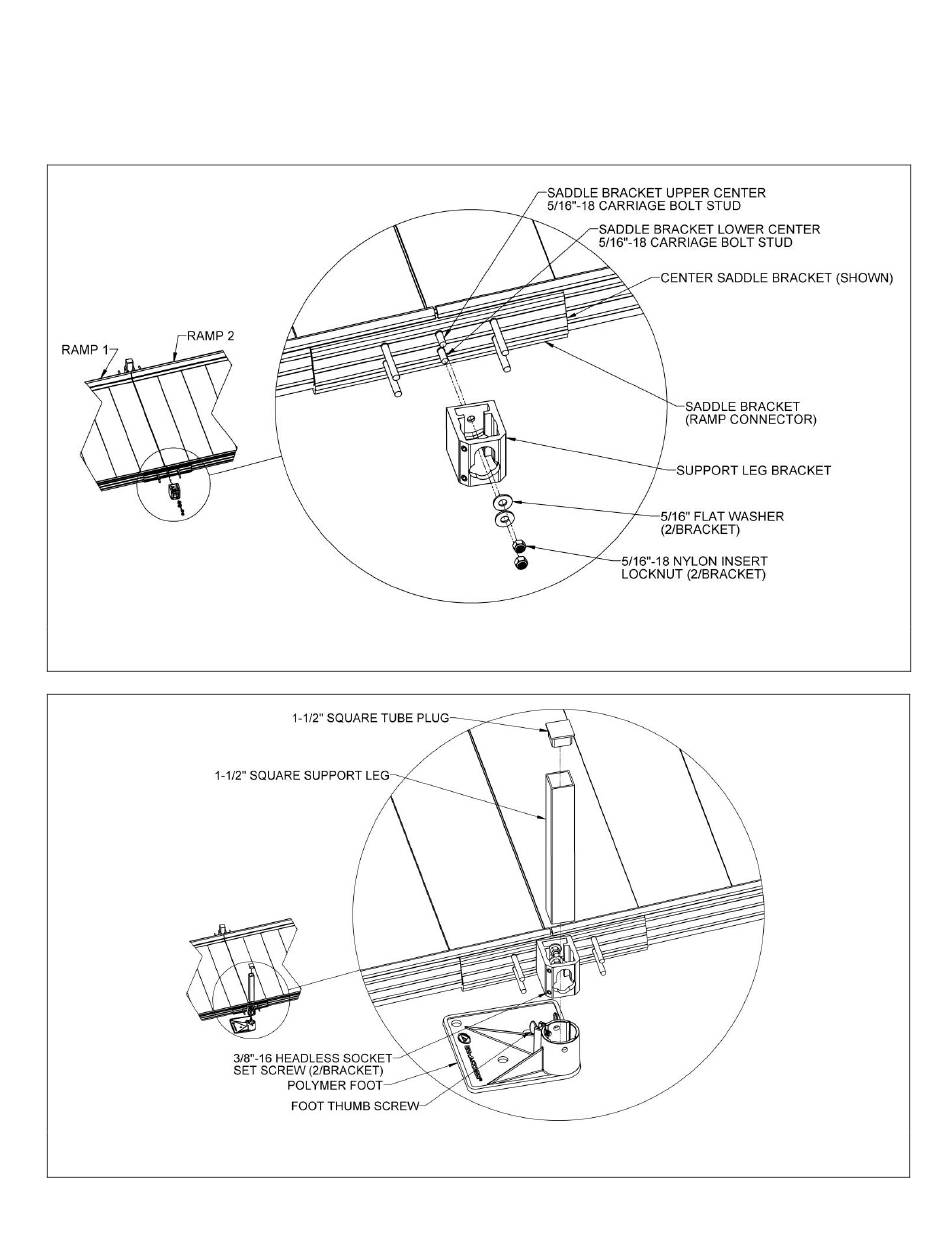

FIG. 4.5
