8. OPTIONAL EQUIPMENT

The PLP (LANDING PAD) is used at the bottom of a ramp or ramp run to assist mobility on soft ground.

This is purchased separately and not included in any of the configurations.

8.1.1. Contour the ground to remove any high or low areas which would prevent portions of the

Landing Pad from contacting the ground.

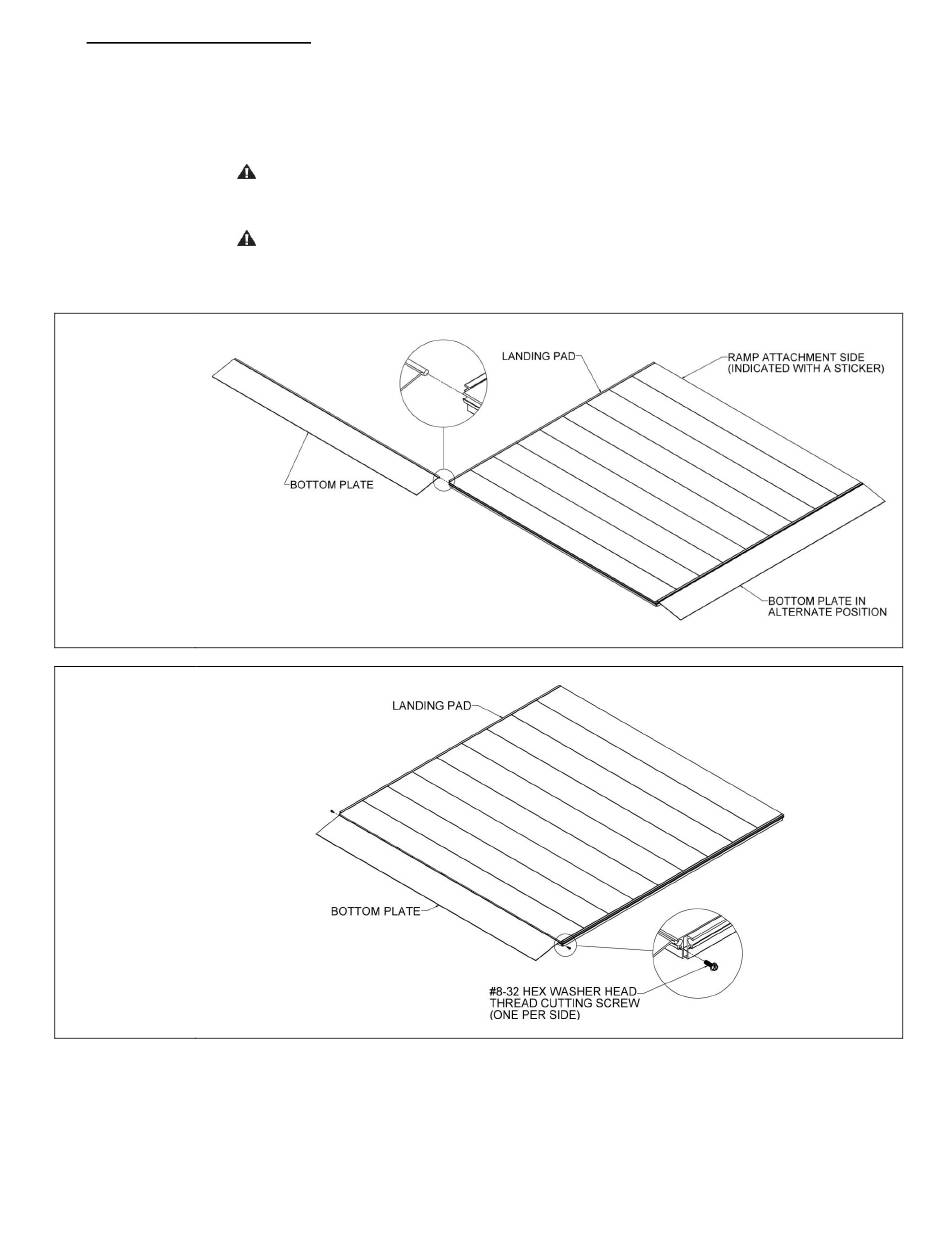

8.1.2. Slide the bottom plate into one of the three available slots (FIG. 8.1).

8.1.3. After installing the bottom plate, install #8-32 hex washer head thread cutting screws into

the screw slots on both sides (FIG. 8.2).

FIG. 8.1

FIG. 8.2

PATHWAY

Aluminum Wheelchair Ramp Kit Assembly Manual

The underside of the Landing Pad must be fully supported by the ground. It should

never be used in an elevated position like a ramp or a platform.

The ramp must be installed on the side marked for ramp attachment.

Page 37 of 40
