3 Overview

3 Overview

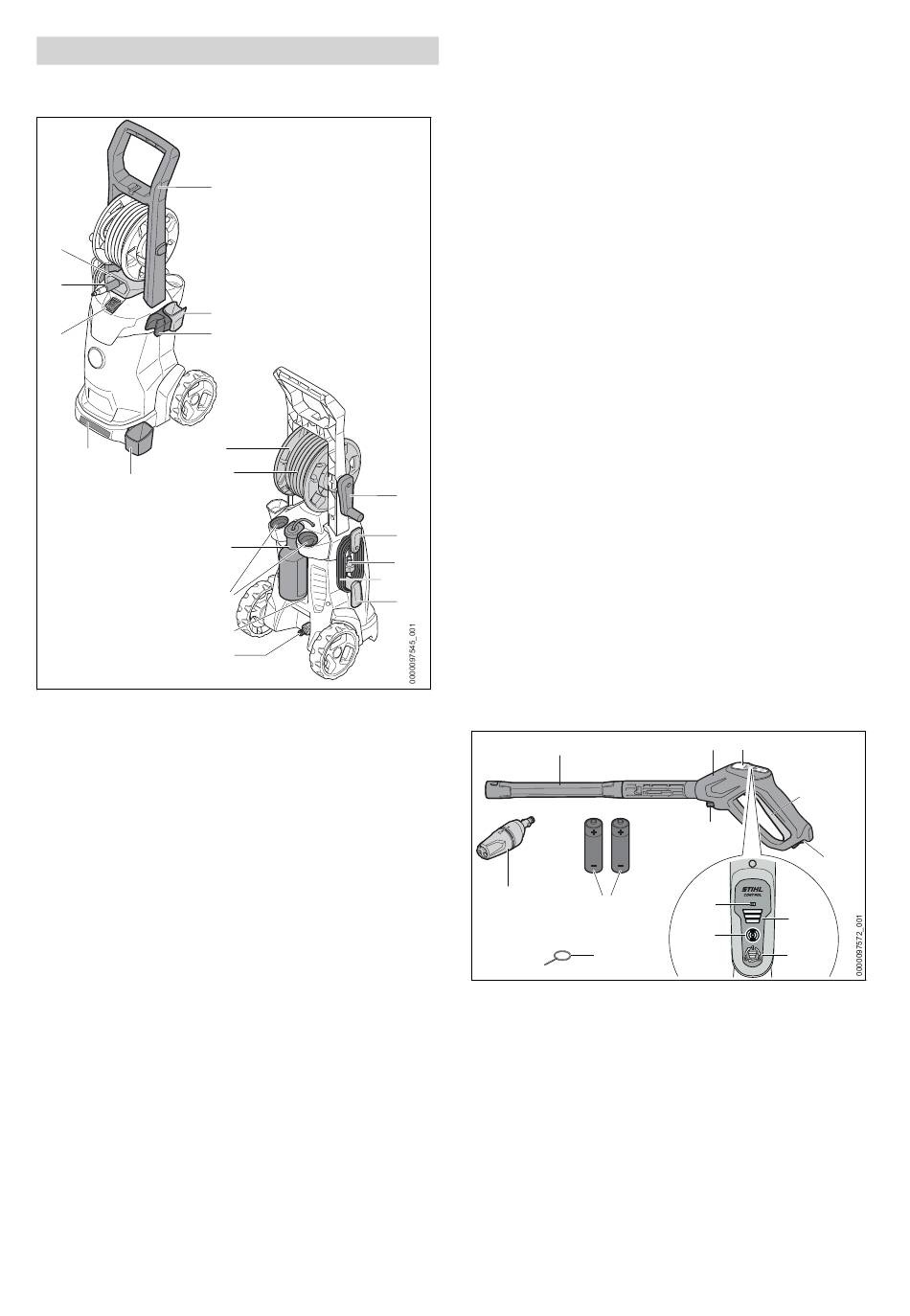

3.1 Pressure washer
7
6
5
16
4
3
1 Handle
The handle is used when carrying and mov‐
ing the high-pressure washer.
2 Holders
The holder is used for storing the spray gun.
3 Holders
The holder is used for storing the spray
attachment.
4 Carrying handle
The carrying handle is used to carry the high-
pressure washer.
5 Rocker switch
The rocker switch is used to switch the high-
pressure washer on and off.
6 Connector
The connector is used to connect the water
hose.
7 Guide opening
The guide opening guides the high-pressure
hose from the front onto the hose reel.
8 Crank handle
The crank handle is used to turn the hose
reel.
0458-004-0121-B
1
2
3
15
14
13
#
12
9 Holders
The holder is used to remove and to store the
connecting cable.
10 Mains plug
The mains plug connects the connecting
cable to a socket.
11 Connecting cable
The connecting cable connects the high-pres‐
sure washer to the mains plug.
12 Connector
The connector is used to connect the water
hose.
13 Compartments
The compartments are used to store the sup‐
plied nozzles.
14 Detergent bottle
The detergent bottle is used when cleaning
with detergents.
15 High-pressure hose
8
The high-pressure hose transports the water
9
from the high-pressure pump to the spray
gun.
10
11
16 Hose reel
9
The hose reel is used to roll up the high-pres‐
sure hose.
# Rating plate with machine number
3.2 Spray attachment
1
13
1 Spray lance
The spray lance connects the spray gun to
the nozzle.
2 Spray gun
The spray gun is used to hold and control the
spray attachment.
3 Control Panel
The control panel is used to display and set
the working pressure.
2 3
6
7
12
9
11
English
4
5
8
10
3
