Summary of Contents for Stihl RE 100.0 PLUS CONTROL

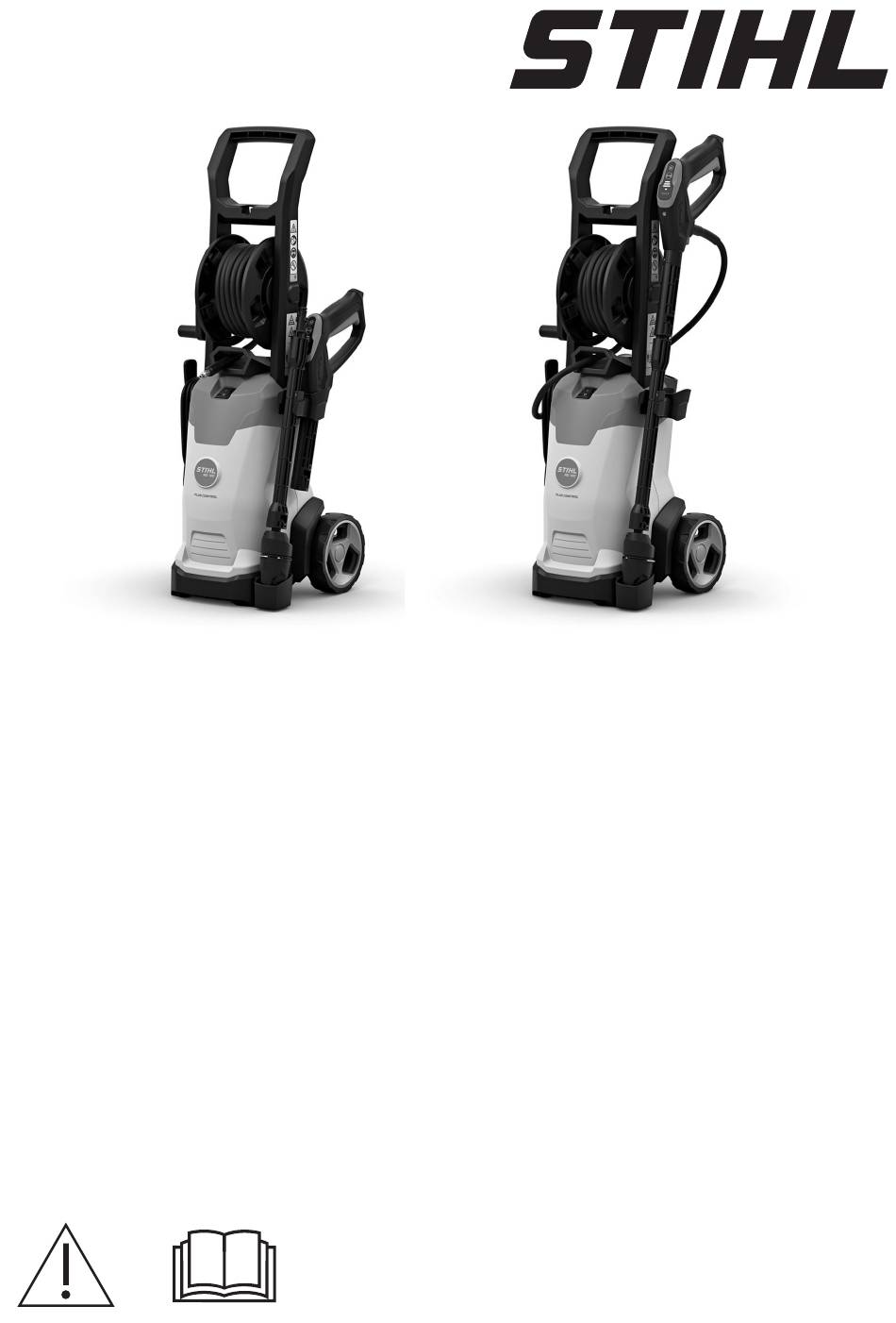

  • Page 1 RE 100.0 PLUS CONTROL 2 - 23 Instruction Manual...

  • Page 2: Table Of Contents

    STIHL expressly commit themselves to a sus‐ tainable and responsible handling of natural resources. This user manual is intended to help you use your STIHL product safely and in an environmentally friendly manner over a long service life. We thank you for your confidence in us and hope you will enjoy working with your STIHL product.

  • Page 3: Overview

    3 Overview English Overview 9 Holders The holder is used to remove and to store the Pressure washer connecting cable. 10 Mains plug The mains plug connects the connecting cable to a socket. 11 Connecting cable The connecting cable connects the high-pres‐ sure washer to the mains plug.

  • Page 4: Safety Precautions

    In this position, the retaining latch unlocks the lever. Intended Use In this position, the retaining latch locks the The STIHL RE 100.0 PLUS CONTROL high- lever. pressure washer is used to clean vehicles, trail‐ ers, patios, paths and facades, for example.
  • Page 5 – The user is not under the influence of – Cleaning surfaces which come into contact alcohol, medicines or drugs. with foodstuffs ► If in any doubt: Contact a STIHL servicing – Cleaning the high-pressure washer itself dealer. Requirements concerning the...
  • Page 6 ► Insert batteries according to the polarity sure washer may be damaged. (+/-). ► Do not use in rain. ► Fit original STIHL accessories for this high- ► Position the pressure washer so that it will pressure washer. not be wet by dripping water.
  • Page 7 4 Safety Precautions English ► To ensure an adequate exchange of cool‐ ■ The water jet may remove oil from vehicles or ing air, do not cover the high-pressure machinery. The oily water may enter the soil, washer. the water system or the drains. That would ■...
  • Page 8 ► Keep electrical appliances and the high- ful to the environment. pressure washer away from the surface to ► STIHL recommends the use of genuine be cleaned. STIHL detergents. ■ An incorrectly routed high-pressure hose may ►...
  • Page 9 4 Safety Precautions English WARNING ► Make sure there is a sufficient supply of water to the pressure washer, ■ During operation, an incorrect mains voltage 4.10 Connecting to the power supply or incorrect mains frequency may result in an overvoltage in the high-pressure washer.
  • Page 10 Have the connecting cable replaced ► Switch off pressure washer. by a STIHL dealer. ► If the high-pressure washer needs to be serviced or repaired: Contact a STIHL ► Unplug the mains plug of the pressure dealer. washer from the socket.

  • Page 11: Preparing The Pressure Washer For Operation

    ► Do not charge, open, dispose of in fire or ► If it is not possible to carry out these steps: Do short-circuit batteries. not use the pressure washer. Consult a STIHL ■ If the battery is swallowed, serious injuries or servicing dealer.
  • Page 12 English 6 Assembling the pressure washer Installing the Batteries 6.3.2 Removing the spray gun ► Press and hold the locking lever (1). ► Press the locking button (1). ► Pull out the connector (2). ► Remove control panel (2). ► Open the retaining latch (3). Attaching and removing the ►...

  • Page 13: Connecting To A Water Source

    7 Connecting to a water source English Attaching and removing the nozzle 6.5.1 Attaching the Nozzle ► Screw the water filter (1) onto the water supply and tighten by hand. Connecting the water hose The water hose must meet the following require‐ ►...
  • Page 14 (a), 18.1. even water jet flows out of the high-pressure hose. The appropriate STIHL suction set must be used. The suction set includes a water hose with a NOTICE special coupling. ■ If the high-pressure washer does not suck in...

  • Page 15: Connecting The Pressure Washer To The Power Supply

    8 Connecting the pressure washer to the power supply English Connecting the pressure Switching off the pressure washer. washer to the power supply Connecting the pressure washer to an electric power supply ► Set the toggle switch to the 0 position. 10 Operating the pressure washer ►...
  • Page 16 English 10 Operating the pressure washer the selected power level. The higher the power WARNING level, the higher the working pressure. ■ When the lever of the spray gun is released, a Work can be carried out with high working pres‐ recoil occurs in the high-pressure hose.

  • Page 17: After Finishing Work

    ► Wind up the high-pressure hose (1) evenly the water. distributed over the reel. ► Coil the connecting cable (2) on the holder (3). STIHL recommends the use of genuine STIHL ► Secure the connecting cable (2) using the clip detergents. (4).

  • Page 18: Transporting

    English 12 Transporting 13 Storing ► Mix the antifreeze as described in the anti‐ freeze Instruction Manual. 13.1 Storing the pressure washer ► Pour antifreeze into a clean container. ► Insert water hose into container of antifreeze. ► Switch off pressure washer and unplug mains ►...

  • Page 19: Maintenance

    15.1 Maintenance intervals 14.4 Cleaning the water intake Maintenance intervals depend on the ambient screen conditions and the operating conditions. STIHL recommends the following maintenance inter‐ vals: Monthly ► Clean water intake screen. 16 Repairing 16.1 Repairing the pressure washer The user cannot personally repair the pressure ►...
  • Page 20 ► Allow the pressure washer to cool for 5 minutes. ► Clean the nozzle. The high-pressure There is a leak in the high-pressure ► Ask a STIHL servicing dealer to pump repeatedly pump, high-pressure hose or spray inspect the pressure washer. switches on and off attachment.

  • Page 21: Specifications

    – Frequency band: ISM band 2.4 GHz 18.1 Pressure washer STIHL – Maximum RF power transmitted: 13 mW RE 100.0 PLUS CONTROL – Signal range: approx. 16 m. The signal strength depends on the ambient conditions Version 220 V - 230 V / 50 Hz and the mobile terminal.

  • Page 22: Spare Parts And Accessories

    Improper disposal can be harmful to health and 18.3 Sound Values and Vibration pollute the environment. ► Take STIHL products including packaging to a Values suitable collection point for recycling in accord‐ The K-value for sound pressure levels is 2 dB(A).

  • Page 23: Ukca Declaration Of Conformity

    – Type: high-pressure washer – Manufacturer's brand: STIHL – Model: RE 100.0 PLUS CONTROL – serial number: RE02 complies with the relevant provisions of the UK regulations The Restriction of the Use of Certain Hazardous Substances in Electrical and Elec‐...
  • Page 24 *04580040121B* 0458-004-0121-B...
