Vivo MOUNT-V101G1/W Instruction Manual

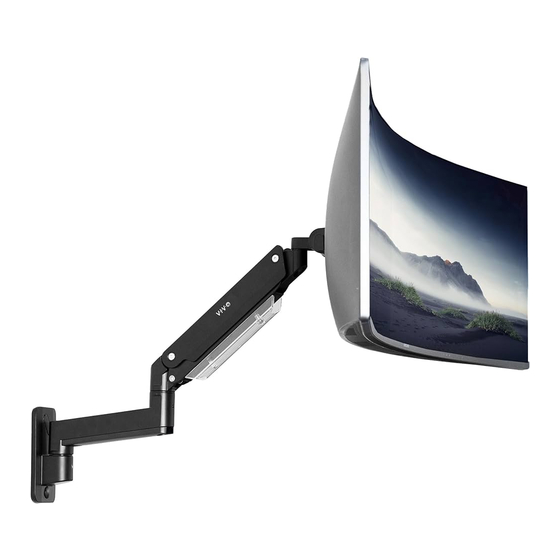

Pneumatic arm single ultrawide monitor wall mount
Hide thumbs Also See for MOUNT-V101G1/W:

Advertisement

Table of Contents

Pneumatic Arm
Single Ultrawide
Monitor Wall Mount
SKU: MOUNT-V101G1/W
Instruction Manual
Assembly Video & Product Info
www.vivo-us.com/products/mount-v101g1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOUNT-V101G1/W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo MOUNT-V101G1/W

Summary of Contents for Vivo MOUNT-V101G1/W

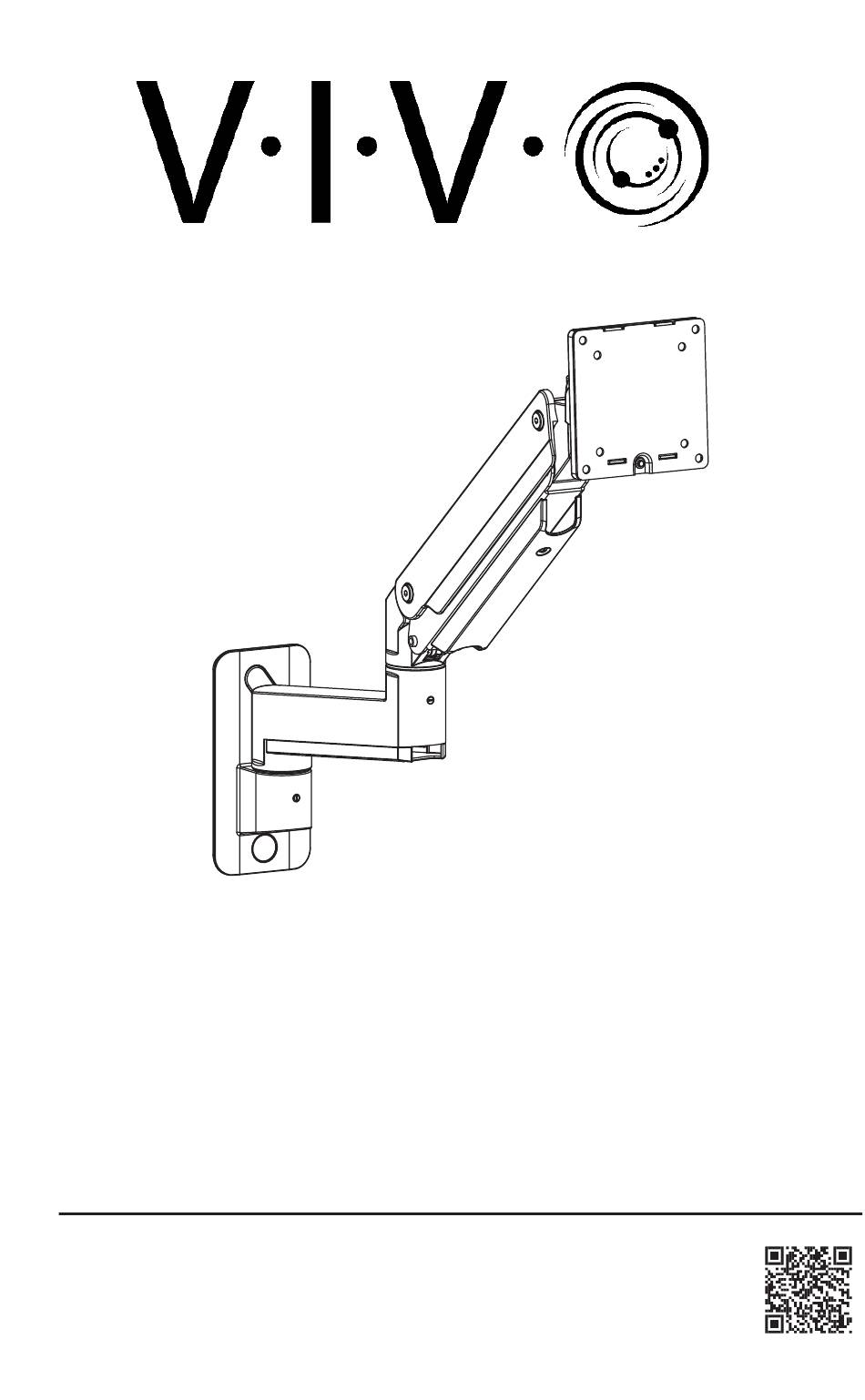

  • Page 1 Pneumatic Arm Single Ultrawide Monitor Wall Mount SKU: MOUNT-V101G1/W Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-v101g1...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.

  • Page 3: Package Contents

    Package Contents C (x1) A (x1) B (x1) Gas Spring Wall Bracket Lower Arm F (x1) D (x1) E (x1) Oval Screw VESA Bracket Round Screw Included Hardware & Tools NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED S-A (x1) S-B (x1) M-A (x4) M-B (x4)

  • Page 4: Tools Needed

    Tools Needed: Phillips Drill Level Stud 10mm Socket Pencil Screwdriver Finder Wrench 3/16” (4.5mm) Drill 3/8” (10mm) Drill Wood Stud Concrete/Brick Install Application Install Application Weight Capacity: 2.2-44lbs (1-20kg)

  • Page 5: Assembly Steps

    ASSEMBLY STEPS STEP 1 Option 1: Wood Stud Mounting Pre-Drilling Instructions Drill mounting holes using illustration below. 3/16” (4.5mm) Drill Bit 2.2” (55mm) Use Wall Bracket (A) to mark drilling locations Hole Depth on the wall where a stud is located. Use of a level and stud finder is recommended.
  • Page 6 Option 2: Concrete/Brick Mounting Pre-Drilling Instructions Drill mounting holes using illustration below. 3/8” (10mm) Drill Bit 2.4” (60mm) Hole Depth Use Wall Bracket (A) to mark drilling locations on the wall. Use of a level is recommended. Press Anchors (W-B) into holes. Secure Wall Bracket (A) to wall using ST6.3x55 Screws (W-A) with M6 Washers (W-C) and a 10mm socket wrench.
  • Page 7 STEP 2 Assemble Lower Arm (B) and Gas Spring Arm (C) to Wall Bracket (A). Tighten set screws on Wall Bracket and Lower Arm using 3mm Allen Wrench (T-A).
  • Page 8 STEP 3 Connect VESA Bracket (D) to Gas Spring Arm (C) using Keyed Spacer (S-A), M8x25mm Screw (S-B), and 6mm Allen Wrench (T-B). Ensure that hexagon side of Keyed Spacer (S-A) is facing upwards before installing. Remove Thumbscrew (D1) from back of VESA Bracket and set aside. Separate VESA Plate (D2) from VESA Bracket (D).
  • Page 9 STEP 4 Connect VESA Plate (D2) to back of monitor using appropriate screws (M-A, M-B), M5 Washers (M-C), and a Phillips screwdriver. M-A,...

  • Page 10: Adjustment Screw

    STEP 5 Adjusting the Tilt Joint Adjustment Screw Loosen Tilt Joint: Lock Angle Use 6mm Allen Wrench (T-B) to Tighten as much as possible loosen the tilt joint Adjustment using the 6mm Allen Wrench Screw, located on the side of (T-B) to lock the angle.
  • Page 11 With the assistance of a second person, line up the VESA Plate (D2) on your monitor with the VESA Bracket and the Plate Hooks into the pockets of the VESA Bracket (D). 2 Person Mounting is Recommended *Monitor & VESA Bracket may need to be angled backwards slightly when sliding on.
  • Page 12 Fine Tune Tilt Angle If the monitor is angled further than intended... Heavy Weighted/ Ultrawide Monitors [ 22lbs - 44lbs ] Firmly Hold Monitor Firmly grasp and hold the monitor in place. Do NOT release monitor until you have completed steps below. Loosen Tilt Joint: With a hand still on the monitor, use 6mm Allen Wrench (T-B) to loosen the tilt joint...
  • Page 13 STEP 6 Adjusting Monitor Height Position Mount Arm Turn 10-20x to Set Monitor Height Position the arm horizontally, as shown above, and firmly hold in Turn 6mm Allen Wrench (T-B) 10-20 times place. to obtain proper support for your monitor. Use the guide below to adjust the tension according to the amount of counterbalance Insert 6mm Allen Wrench (T-B)
  • Page 14 STEP 7 7.1 Remove the cable management cover from Gas Spring Arm (C) using a Phillips screwdriver. Slide The cable management cover from Lower Arm (B) off. 7.2 Route cables and reattach cable management covers.
  • Page 15 Adjust as Desired Your monitor can be turned left and right up to 90 degrees, and can be turned on it’s side for a vertical display.

  • Page 16: Last Updated

    LAST UPDATED: 6/13/24 REV2 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
