AY-B86x0
Outdoor Optical Fingerprint
1:N with RFID Reader
User Guide
1. Introduction

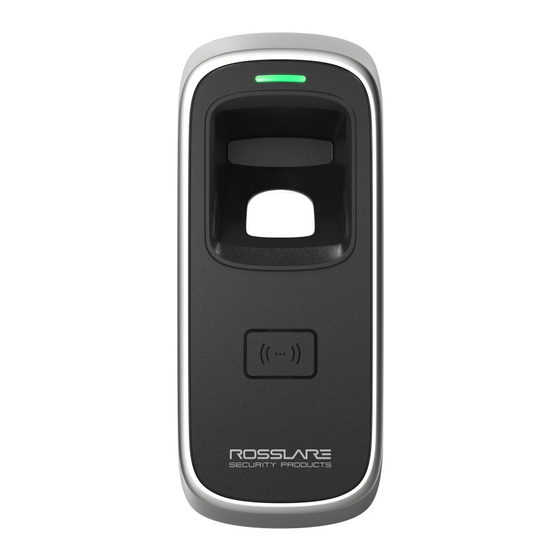

The AY-B86x0 series are biometric fingerprint and RFID card readers with a compact design, which are suitable for
installing on a door frame. The USB power supply and debug make operations simple. The reader IP65 certified for
outdoor use.
Using AxTraxNG, you can register and delete users (see the AxTraxNG™ Software Installation and User Manual).
Alternatively, you can use master cards to register and delete users while in an offline state.
The standard Wiegand output seamlessly connects to the third-party access controllers.
The reader comes in two models:
•
AY-B8620 – 125 kHz EM RFID card reader
•
AY-B8650 – 13.56 MHz MIFARE card reader
2. Installation

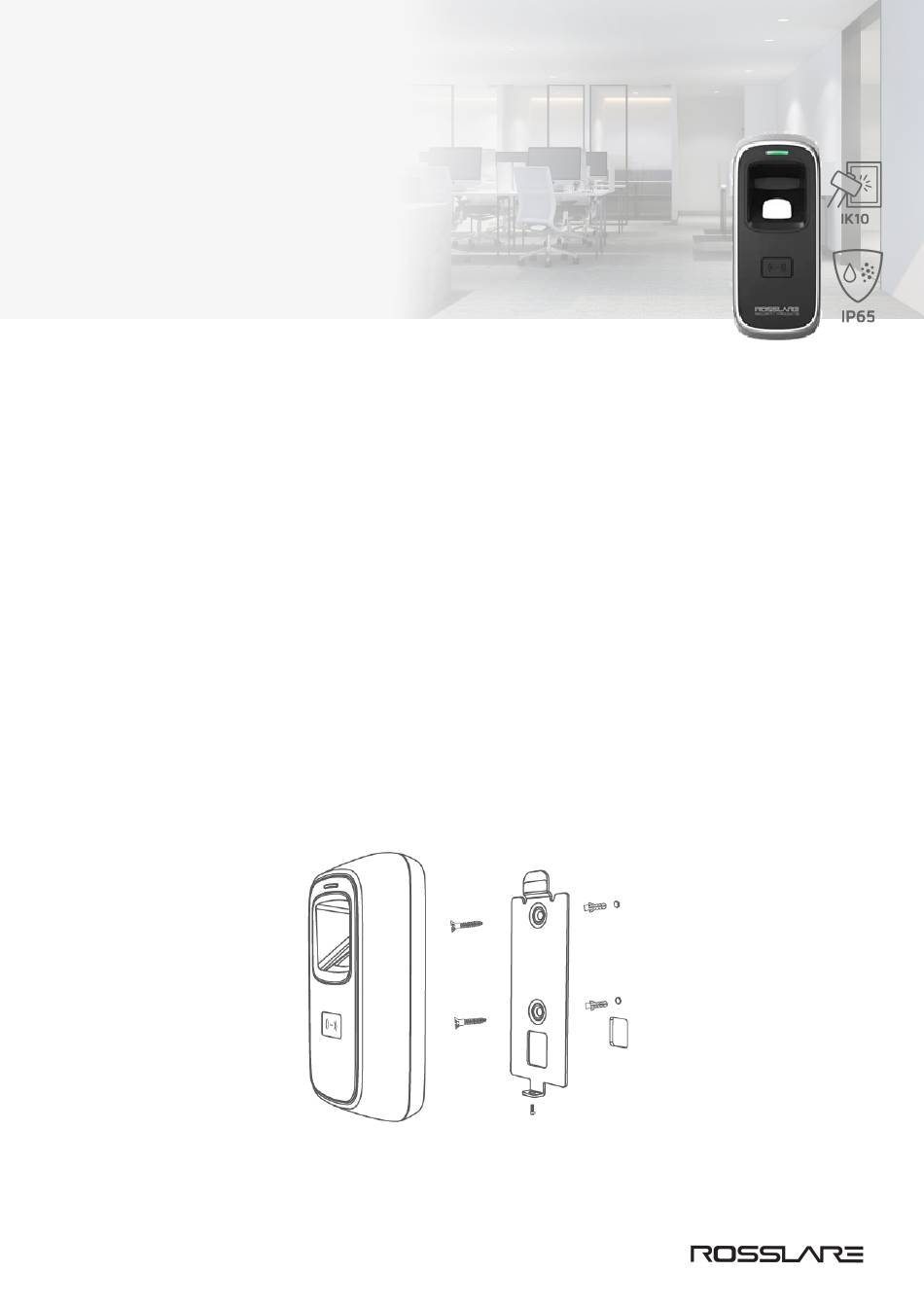

2.1. Mounting
1. Using the back panel as a guide, drill four holes for mounting the back plate onto the surface.
2. Insert a suitable wall plug into each screw hole.
www.rosslaresecurity.com
Wall Mounting
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AY-B86 0 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Rosslare AY-B86 0 Series

Summary of Contents for Rosslare AY-B86 0 Series

  • Page 1 AY-B86x0 Outdoor Optical Fingerprint 1:N with RFID Reader User Guide 1. Introduction The AY-B86x0 series are biometric fingerprint and RFID card readers with a compact design, which are suitable for installing on a door frame. The USB power supply and debug make operations simple. The reader IP65 certified for outdoor use.

  • Page 2: Wiring Instructions

    AY-B86x0 User Guide 3. Drill a 10-mm (7/16”) hole for the cable. 4. Screw the back plate onto the wall. 5. Connect the reader to the controller (see Wiring Instructions). A linear type power supply is recommended. 2.2. Wiring Instructions To connect the unit as a reader to an access control unit: 1.

  • Page 3: Registering A User

    AY-B86x0 User Guide Registering Management Card 3.2. Resetting a Management Card (Enroll and Delete) To reset a management card, press and hold the function button located inside the back cover of the reader until you hear beeps. Function Button 3.3. Registering a User There are three ways to register a user: fingerprint, card, card+fingerprint.
  • Page 4 AY-B86x0 User Guide 3.3.1. Registering a Fingerprint Register a fingerprint. For the enrollment procedure it is necessary to remove the finger from sensor after first enrollment and then put it on the sensor again for a second enrollment. Registering a Fingerprint If the finger has been already registered, the red LED flashes and there are 2 long beeps.

  • Page 5: Deleting Users

    AY-B86x0 User Guide 3.3.3. Registering a Fingerprint and Card Register a fingerprint and card. Registering a Fingerprint and Card If the card and/or fingerprint have been already registered, the red LED flashes and there are 2 long beeps. 3.3.4. Registering Two Fingerprints and a Card Register two fingerprints and a card.
  • Page 6 AY-B86x0 User Guide If the fingerprint does not exist in the system, the red LED flashes and there is a long beep. 3.4.2. Deleting a Card Delete a fingerprint from the reader. Deleting a Card If the card does not exist in the system, the red LED flashes and there is a long beep. 3.4.3.

  • Page 7: Incorrect Method

    AY-B86x0 User Guide 4. Instructions for Placing Finger 4.1. Correct Method Straighten your finger and then place it on the sensor, ensuring the finger is down flat and covers the entire sensor window. Always place finger in the center of the sensor. Make sure you cover the entire sensor surface with as much of your finger as possible.

  • Page 8: Technical Specifications

    AY-B86x0 User Guide DO NOT slide your finger during the fingerprint verification process. 5. Technical Specifications Fingerprint Sensor 500 DPI Optical Sensor AY-B8620 – 125 kHz RFID Card Reader AY-B8650 – 13.56 MHz User Capacity 7000 Fingerprint Templates Capacity 7000 Card Capacity 7000 Log Capacity...

  • Page 9: Usage Notice

    Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 8. Radio Equipment Directive (RED) Rosslare hereby declares that the AY-B86x0 are in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. www.rosslaresecurity.com...

  • Page 10: Rohs Directive

    All technical specifications weights, measures and colors shown, are best approximations. Rosslare can not be held responsible and assumes no legal liability for the accuracy or completeness of the information provided. Rosslare reserves the right to change, delete, or otherwise modify the information, which is represented, at any time, without any prior notice.
