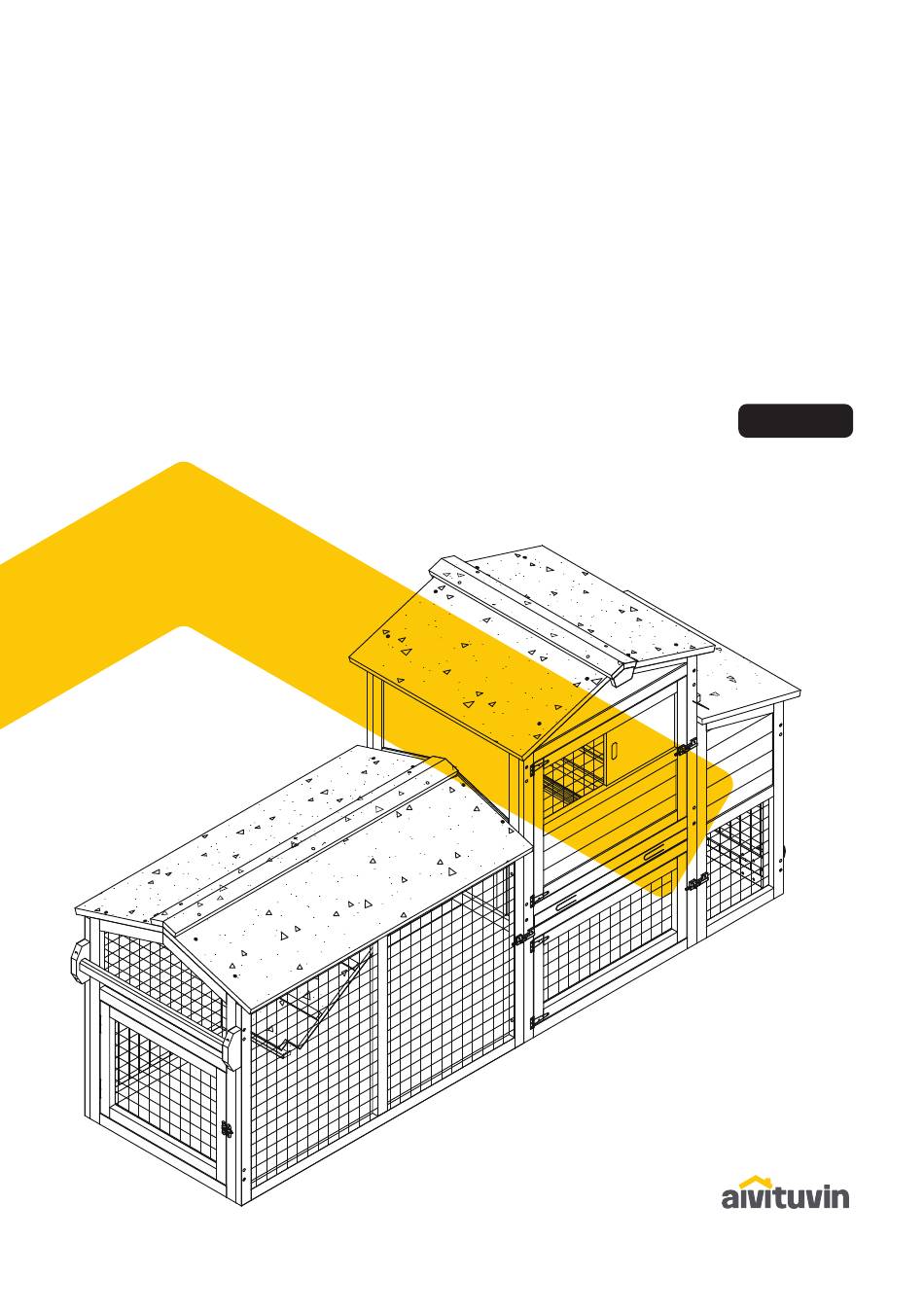

- Page 1 INSTRUCTION MANUAL AIR 61 www.aivituvin.com...
- Page 3 NOTICE Please retain these instructions for future reference. Firmly secure all bolts,screws and knobs before use. Reconfirm that all bolts,screws,and knobs are secure every 90 days. Fasten screws loosely during initial assembly. Do not fully tighten screws until the item is completely assembled. Do not use or store this item in the proximity of open flame or flammable/combustible chemicals.
-
Page 4: Tools Required
TOOLS REQUIRED PHILLIPS DRILL 2PERSON APPROXIMATELY SCREWDRIVER (RECOMMENDED) ASSEMBLY 45MIN. ASSEMBLY HARDWARE M3.5x60mm SCREW M6.0x30mm BOLT 10PCS+1spare 8PCS+1spare M3.5x35mm SCREW M3.5x40mm SCREW 16PCS+1spare 22PCS+1spare M3.5x25mm SCREW M3.0x16mm SCREW 16PCS+1spare 24PCS+1spare Connect pieces M4.0x30mm BOLT 2PCS 2PCS (Only for 2 coops combination. not available for one coop owner) - Page 5 HARDWARE Lock Spring latch 3PCS Nesting box Coop...
- Page 6 PARTS CARTON 1/2 Back panel of coop Front panel of coop Back panel of pen Ramp Front panel of pen Divider PVC Waterproof Strip Roof of pen Roof cap of pen 2PCS...
- Page 7 PARTS Splayed supporting bar Hardware bag Roof connect slat ( Only for 2 coops combination. not available for one coop owner )
- Page 8 PARTS CARTON 2/2 Right panel of coop Tray Left panel of coop Perch Metal ramp support Side panel of pen 2PCS Push handle Right panel of nesting box Left panel of nesting box...
- Page 9 PARTS Casters Bottom of nesting box Side panel of nesting box 2PCS Roof of nesting box Roof of coop Roof cap of coop 2PCS...
-
Page 10: Product Assembly
PRODUCT ASSEMBLY ① Attach the front Part A,the back Part B to the side panels Part C & D by 8xP3 screws. ② Notice to align with the dowels. Slide in metal tray Part E. ① Insert perch Part F into slots inside the front and back panels. ② ... - Page 11 PRODUCT ASSEMBLY Ensure that all pen-panels have stapled-wire facing inside. ① ② Attach Part G & H to coop by 4xP2 screws. ③ Attach metal ramp support Part I to the back panel by 2xP7 screws. ① Attach the splayed supporting bar Part J by 2xP4 screws. ② ...
- Page 12 PRODUCT ASSEMBLY Attach the side panel Part L to front and back panel by 4xP3 screws. ① Attach the push handle Part M to the side panel Part L by 4xP2 screws. ②...
- Page 13 PRODUCT ASSEMBLY Attach the side panel of nesting box Part N&O to the coop by 1xP2 & 1xP4 screws each side. (Notice screw the P4 from inside in the upper position, screw the P2 from outside in the down position)
- Page 14 PRODUCT ASSEMBLY Bolt the caster Part Q to the side panel of nesting box Part P by ① 4xP1 screws each. Attach the side panel of nesting box Part P to the sides by 4xP3 ② screws.
- Page 15 PRODUCT ASSEMBLY Drop in bottom of nesting box Part S. ① Slide in divider Part R. ② Make sure the lock is functioning properly before locking the roof. ① Attach the roof of nesting box Part T by 6XP6 screws. ②...
- Page 16 PRODUCT ASSEMBLY Attached PVC Waterproof Strip Part U to the nesting box by 2XP4 screws. Attach roof panels Part V to the coop by 8xP4 screws. ① Attach roof panels Part W to the pen by 8xP4 screws. ②...
- Page 17 PRODUCT ASSEMBLY Ensure top roof panels line up with each other before screwing roof caps Part X&Y by 10XP5 screws. Attach the spring latch P9 to the doors by 2xP6 screws each. ① (Notice the direction of latch) Attach lock P10 to the side door by 4XP6 screws. ②...
- Page 18 Notice Read Before Assemble! ① Pls ignore the following for only one coop owner ! ② The side pen panel Part L, the push handle Part M ,the pen lock P10 are not needed in 2nd coop.
- Page 19 Notice Read Before Assemble! ① The following pages are assemble steps for 2nd coop. ② The casters, the side pen panel Part L, the push handle Part M, the pen lock P10 are not needed in 2nd coop. ③ The assemble direction of the hutch Part C &D, are different pls notice.
- Page 20 PRODUCT ASSEMBLY ① Attach the front Part A,the back Part B to the side panels Part D & C by 8xP3 screws. ② Repeat the same assembly ways from step 2-step12 the same as the 1st coop. ！ Notice the direction of Part C &...
- Page 21 PRODUCT ASSEMBLY Attach the spring latch P9 to the doors by 2xP6 screws each. (Notice the direction of latch) Attach lock P10 to the side door by 4XP6 screws. Finish here for the second coop assemble...
- Page 22 Two sets of chicken coop combination Take out push handle and small door of both coops.
- Page 23 OPTION 1 ①Screw the Connect Piece 2xP8 to the middle frame of the 2 coops by 4xP6 each side. ② Attach the roof connect slat Part Z by 8xP5.
- Page 24 WARNING Manufacturer and seller expressly disclaim any and all liability for personal injury,property damage or loss,whether direct,indirect,or incidental,resulting from the incorrect attachment,improper use,inadequate miantenance,or neglect of this product.
