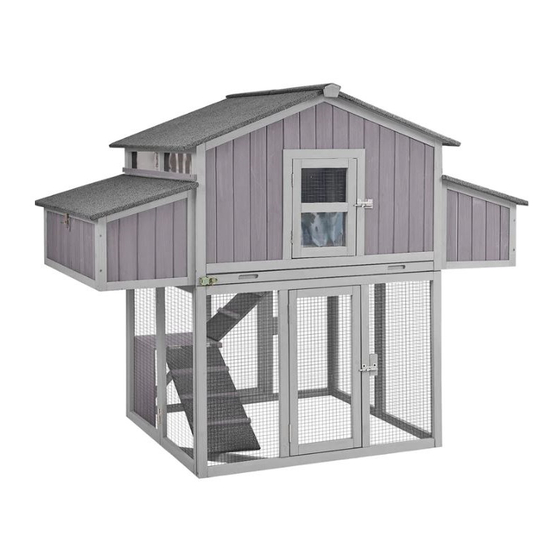

- Page 1 NSTRUCTION MANUAL AIR 66 www.aivituvin.com...
- Page 2 NOTICE Please retain these instructions for future Firmly secure all bolts,screws and knobs before use. Reconfirm that all bolts,screws,and knobs are secure every 90 days. Fasten screws loosely during initial assembly. Do not fully tighten screws until the item is completely assembled.
-
Page 3: Tools Required
TOOLS REQUIRED PHILLIPS DRILL 2PERSON APPROXIMATELY SCREWDRIVER (RECOMMENDED) ASSEMBLY 60MIN. ASSEMBLY HARDWARE M6.0x50 mm BOLT M3.5x60 mm SCREW 8PCS+1 spare 14PCS+1 spare M3.5x40 mm SCREW M3.5x35 mm SCREW 8PCS+1 spare 14PCS+1 spare M3.5x30 mm SCREW M3.5x25 mm SCREW 16PCS+1 spare 22PCS+1 spare Lock M3.0x14 mm SCREW... - Page 4 HARDWARE Spring latch Waterproof PVC 4PCS...
- Page 5 PARTS CARTON 1/2 Ramp Support Shelf of Bottom Ramp Folding of Wire Pen Folding of Wooden Coop 2PCS Tray Connect Bar Divider Perch 2PCS 3PCS 2PCS PVC waterproof strip 2PCS...
- Page 6 PARTS CARTON 2/2 Panel of Nesting Box Panel of Nesting Box Side Panel of Nesting Box Bottom Floor of Nesting Box 2PCS 2PCS 2PCS 2PCS Support Roof of Nesting Box Roof of Coop 2PCS 2PCS 2PCS Hardware bag Support of Tray Support Panel of Middle Ramp...
-
Page 7: Product Assembly
PRODUCT ASSEMBLY ① Expand the part of wire pen Part A . ② Attach the Part C to the Part B by 2XP5 screws. ③Attach the Part B to the left side of wire pen by 6XP6 screws. Front... - Page 8 PRODUCT ASSEMBLY ① Attach the support bar Part S to the corner of front and left side panel by 2X P5 screws. ② Attach the ramp Part D to the Part B by 4XP7 screws. (Notice the direction of ramp) Front ①...
- Page 9 PRODUCT ASSEMBLY Connect the wooden coop and wire pen with connecting bar by 2XP2 screws each side. Front ①Slide in tray Part H in front. ②Slide in support panel of middle ramp Part G in back.
- Page 10 PRODUCT ASSEMBLY ① Attach the Part G to side panel by 1 X P2 each sides. ② Attach the ramp Part D to the support panel of middle ramp Part G by 4XP7 screws. (Notice the direction of ramp) Insert 3PCS perches Part I into the slots inside left and right side panel of coop by 6XP4 screws.
- Page 11 PRODUCT ASSEMBLY Attach the nesting box,attach the Part K & Part J to the coop by 4XP1 bolts each sides. (Notice the direction of Part K & Part J ) Attach the side panel Part L to the Part K & Part J by 4XP3 screws each sides.
- Page 12 PRODUCT ASSEMBLY ① Drop in the bottom floor Part M to the nesting box each sides. ② Insert the divider Part N into the slots of bottom floor each sides. Attach the nesting box roof Part O to coop by 4XP7 screws each sides.
- Page 13 PRODUCT ASSEMBLY Attach the coop roof Part P by 8XP4 screws. ①Attached PVC Waterproof Strip Part Q to the nesting box by 4XP6 screws each sides. ② Put the Waterproof pvc P10 in the connection position of 2 roof cap to avoid the water leakage. ③...
- Page 14 PRODUCT ASSEMBLY ①Attach the latch P8 to the front tray by 6xP7 screws ②Attach the spring latch P9 to the two front doors by 2xP7 screws each latches. (Notice the direction of latch) Attach the spring latch P9 to the two back doors by 2xP7 screws each latches. (Notice the direction of latch)
- Page 15 Notice Read Before Assemble! The below steps are for chicken coop & run combination by 4xP2 screws each sides. If you do only buy one chicken coop ,pls ignore the following. Combination 1 Combination 2 Combination 3 Finish...
- Page 16 WARNING Manufacturer and seller expressly disclaim any and all liability for personal injury,property damage or loss,whether direct,indirect,or incidental,resulting from the incorrect attachment,improper use,inadequate miantenance,or neglect of this...
