Summary of Contents for aivituvin AIR 82

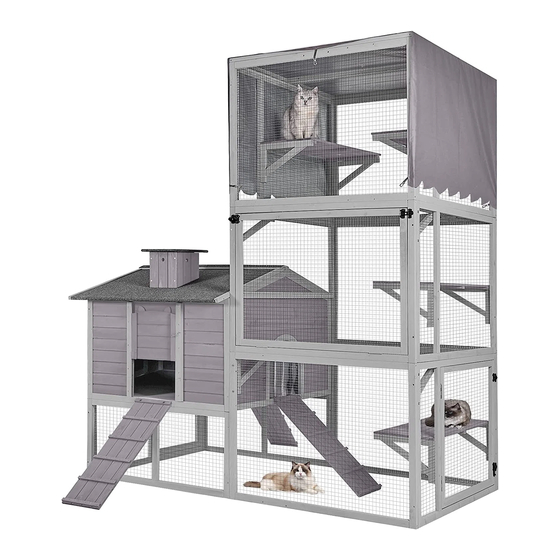

- Page 1 INSTRUCTION MANUAL AIR 82 www.aivituvin.com...
- Page 3 NOTICE Please retain these instructions for future reference. Firmly secure all bolts,screws and knobs before use. Reconfirm that all bolts,screws,and knobs are secure every 90 days. Fasten screws loosely during initial assembly. Do not fully tighten screws until the item is completely assembled. Do not use or store this item in the proximity of open flame or flammable/combustible chemicals.
-
Page 4: Tools Required
TOOLS REQUIRED PHILLIPS DRILL 2PERSON APPROXIMATELY SCREWDRIVER (RECOMMENDED) ASSEMBLY 120MIN. ASSEMBLY HARDWARE M6.0x50mm BOLT M6.0x60mm BOLT 4PCS 6PCS M3.5x45mm SCREW M3.5x60mm SCREW 36PCS+1spare 60PCS+1spare M3.5x30mm SCREW M3.5x35mm SCREW 4PCS+1spare 30PCS+1spare M3.0x30mm SCREW M3.0x14mm SCREW 28PCS+1spare 24PCS+1spare... - Page 5 HARDWARE Hook Latch 2PCS 6PCS Eye hook 12PCS...
- Page 6 PARTS CARTON 1/3 Lower panel of house - Lower right panel of house Upper panel of house - front & back front & back 2PCS 2PCS Layer Right panel of chimney Left panel of chimney 2PCS Front panel of chimney Back panel of chimney Roof of chimney...
- Page 7 PARTS Right panel of run- 2nd floor Bridge Waterproof Cover 2PCS...
- Page 8 PARTS CARTON 2/3 House roof- left Upper left panel of house Upper right panel of house Ramp House roof- Right Roof cap Roof of run 2PCS...
- Page 9 PARTS CARTON 3/3 Ramp Back panel of run- 1st floor Front panel of run- 1st floor 2PCS Layer supporting bar with Left panel of run- 1st floor Layer supporting bar dowel 4PCS 8PCS Short Layer Long Layer Front panel of run- 2nd floor 4PCS 2PCS...
- Page 10 PARTS CARTON 3/3 Back panel of run- 2nd floor Back panel of run- 3th floor Left panel of run- 2nd floor Left / Right panel of run- Front panel of run- 3th floor 3th floor 2PCS...
- Page 11 Option 1 From Step1-22 is for Optional 1 Option 2 From Step23-35 is for Optional 2...
-
Page 12: Product Assembly
PRODUCT ASSEMBLY Connect the Part B, C by 4xP4. ① Attach the latch P9 by 4xP8. ② ① Connect the Part A, D and E by 8xP4. ② Attach the latch P9 by 4xP8. - Page 13 PRODUCT ASSEMBLY Connect the lower panel Part B, C to the upper house by 6xp3. Put in 2pcs of the Layer Part F.
- Page 14 PRODUCT ASSEMBLY Attach the roof G1, G2 to the house by 8xP5. (Notice the eaves should keep in line with part A) ① Attach the roof cap Part H by 4xP6. ② Screw the ramp I by 2xP5.
- Page 15 PRODUCT ASSEMBLY ①Connect the Part K2, J1, J2 by 4xP5. ②Screw the chimney to the roof by 4xP5. ③Connect Part K1 to the chimney by 4xP5. ①Attach the roof Part L by 4xP5 to complete the chimney. ②Attach the ramp Part I by 2xP5 on each side. From Step 9-10 is the assemble for 1st floor of the run.
- Page 16 PRODUCT ASSEMBLY ① Connect the Part M1, M2 and N by 4xP4. ② Attach the latch P9 by 4xP8 on each position. ③ Attach O1 to Part M1 by 2xP1, Attach the other O1 by 2xP2. ④ Attach O2 to Part N by 2xP4 on each side. O1x2 O2x2 Attach the Long layer P2 to the shelf of Part M1, Short layer P1 to to the...
- Page 17 PRODUCT ASSEMBLY ① Connect the second floor of the run Part Q, R, S, W by 8xP4. ② Attach the latch P9 by 4xP8 on each position. ① Attach Part O1 to Part S by 2xP2 on each side. ② Attach Part O2 to Part T by 2xP4 on each side. O1x2 O2x2...
- Page 18 PRODUCT ASSEMBLY Attach the Long layer P2 to the shelf of Part S, Short layer P1 to the shelf of Part T by 8xP7. Connect the 1st floor with the 2nd floor by 7xP3. From Step 15-18 is the assemble for 3rd floor of the run.
- Page 19 PRODUCT ASSEMBLY Connect Part U,V,T by 8xP4. Attach the layer supporting bar O2 by 8xP4. O2x4...
- Page 20 PRODUCT ASSEMBLY Attach the short layer P1 by 8xP7. P1x2 ① Attach Part X to complete the 3rd floor of the run by 12xP4. ② Connect two Part X together by 3xP3. ③ Cover the Part Z to the top of the run, there are hooks on Part Z to connect with the mesh.
- Page 21 PRODUCT ASSEMBLY Connect the 2nd floor with the 3rd floor by 8xP3. Connect the run with the house by 6xP3 on each side.
- Page 22 PRODUCT ASSEMBLY ① Drill the two pcs of P11 into the door frame of Part E, there are two pre-drilled holes. ② Drill the P10 into the door, there are pre-drilled hole on the door. P 11 P 10 ① Repeat ①②from Step 21 on the other side of the house. ② Please kindly note that the Part Y have no use in the assemble of optional 1.
- Page 23 PRODUCT ASSEMBLY RUN 1 RUN 2 RUN 3...
- Page 24 PRODUCT ASSEMBLY Let's start assemble for optional 2: ① Please refer the Step1-4 from the Style 1, it is exactly the same. ② Attach Part O1 to Part A by 2xP1 on each side. O1x2 Attach the P2 on O1 by 4xP7.
- Page 25 PRODUCT ASSEMBLY Attach the roof G1, G2 to the house by 8xP5. Please refer the Step 6-8 from the Style 1, it is exactly the same. From Step 26-2 7 is the assemble for RUN 1. ① Connect Part M1, M2, N by 4xP4. ②...
- Page 26 PRODUCT ASSEMBLY Attach the Two short layer P1 to Part M1, M2 by 4xP 7 on each side . ① Connect the RUN 1 with the house by 4xP3 on each side. ② This Step is the assemble for RUN 2. Connect Part S,W, R by 4xP4.
- Page 27 PRODUCT ASSEMBLY Connect Part U,W,V by 4xP4. ① Stand it up and then attach 4pcs of O2 to the lower part by 8xP4. ② Use Bolt P2 to attach 2pcs of O1 on the upper part, please notice to the ③ ...
- Page 28 PRODUCT ASSEMBLY Connect the RUN 2 with RUN 3 by 7xP3. Attach 2pcs of Part X to complete the assemble of RUN 3 by 8xP4.
- Page 29 PRODUCT ASSEMBLY ①Drill 8 pcs of P11 into the layer supporting bar, there are pre-drilled holes. ② Hook the bridge Part Y to layers. P 11 ①Drill the two pcs of P11 into the door frame of Part E, there are two pre-drilled holes.
- Page 30 PRODUCT ASSEMBLY Repeat ①②③ from Step 34 on the other side of the house. Please kindly note that the Part Q have no use in the assemble of optional 2. P 10 P 11 Finish...
- Page 32 WARNING Manufacturer and seller expressly disclaim any and all liability for personal injury,property damage or loss,whether direct,indirect,or incidental,resulting from the incorrect attachment,improper use,inadequate miantenance,or neglect of this product.
